Home / ABB / XP Drill Rig Duty / ABB DRX25164T
ABB

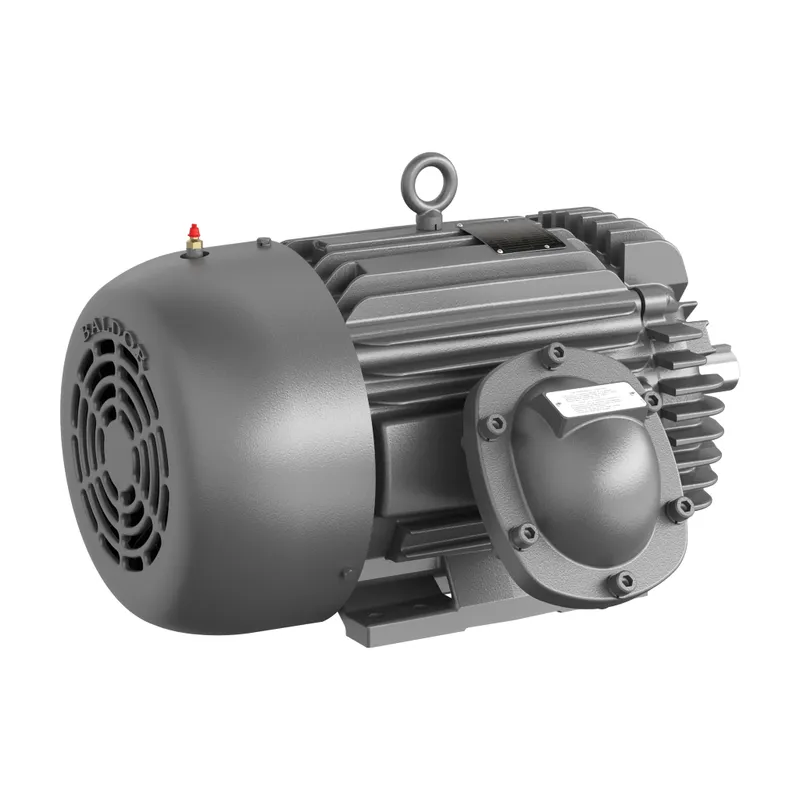

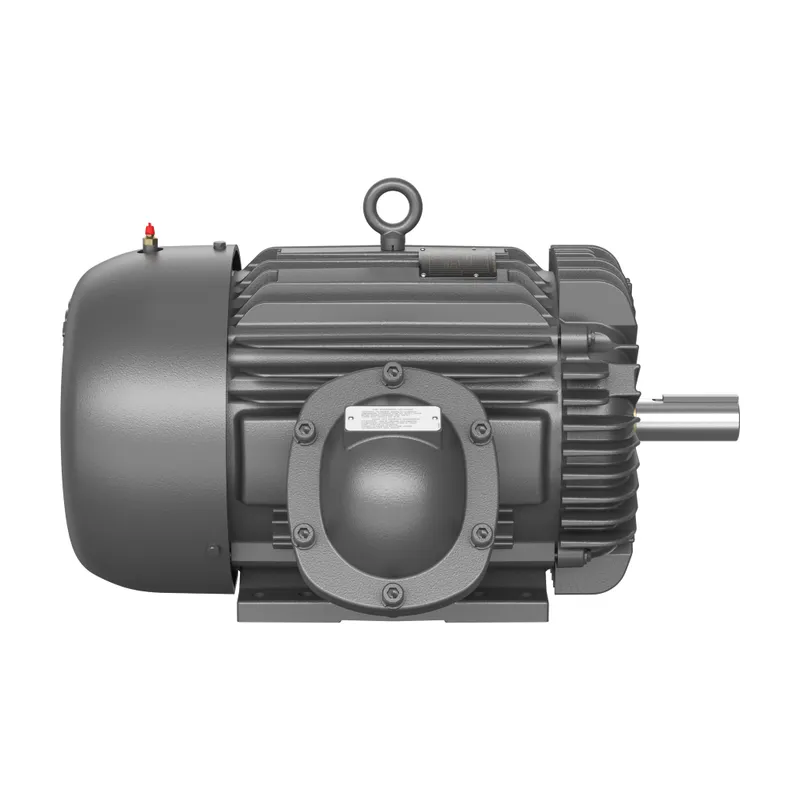

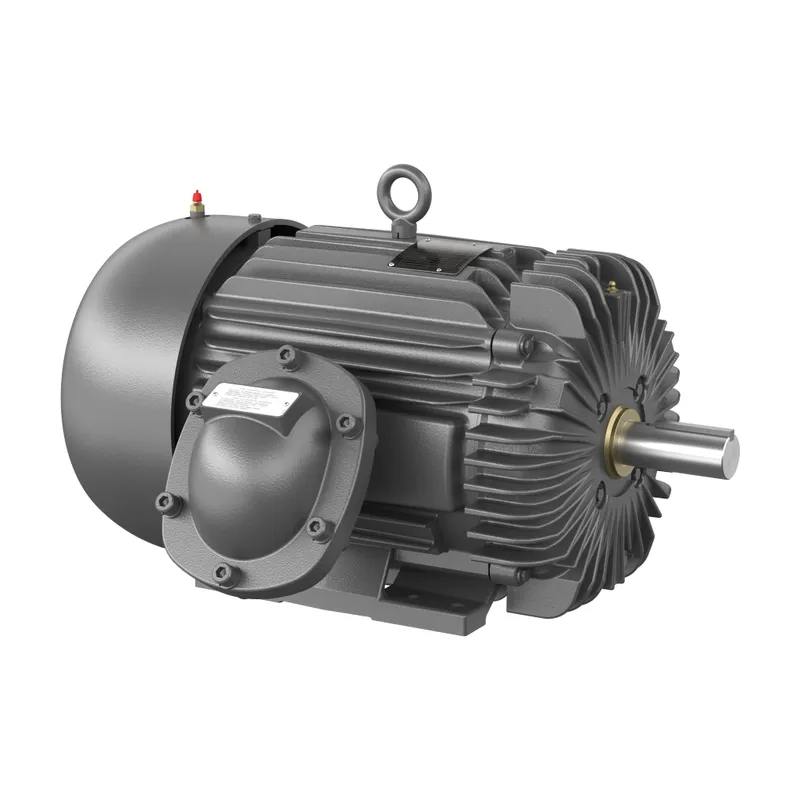

ABB DRX25164T

10HP,1180//980RPM,3PH,60HZ,256T,XPF

MPN
DRX25164T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX25164T?

Explosion Proof Drill Rig Duty 10 Hp 190 V (DRX25164T)

Specifications

Ordering

Catalog NumberDRX25164T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor70 %
Rated Efficiency91 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power10 Hp, 7.500 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size256T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight400 lb
Product Net Width23.75 in
Dimension Diagram09LY-000-552

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
IDEA Granular Category Code (IGCC)1328 >> Multi phase motor AC
ETIM 7EC001851 - Electric motor

DRX25164T: frequently asked questions

When can DRX25164T be shipped?

DRX25164T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DRX25164T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DRX25164T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX25164T, subject to availability and destination.
