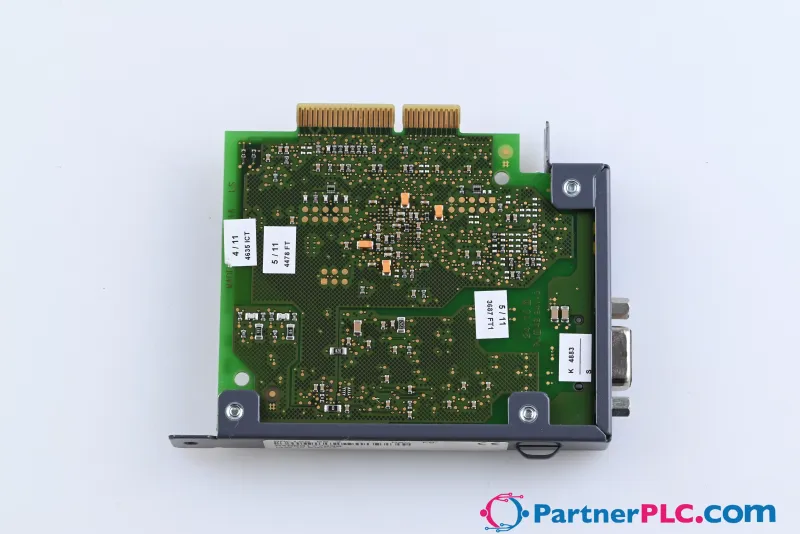

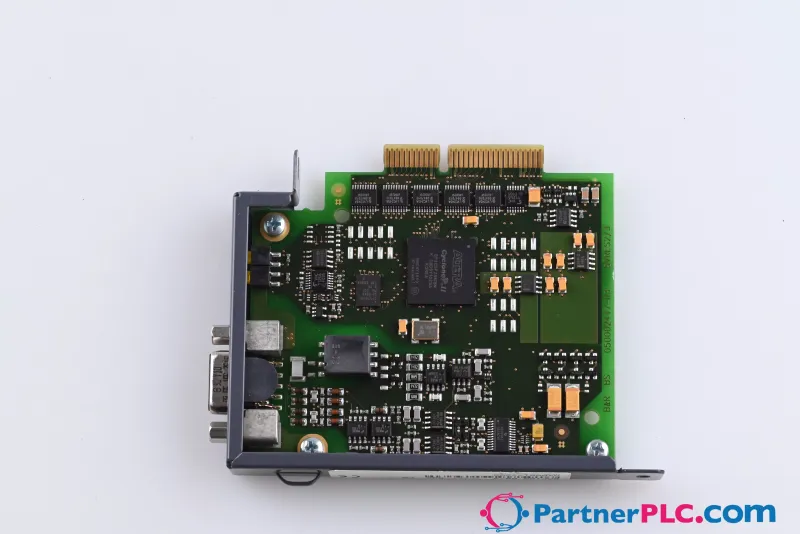

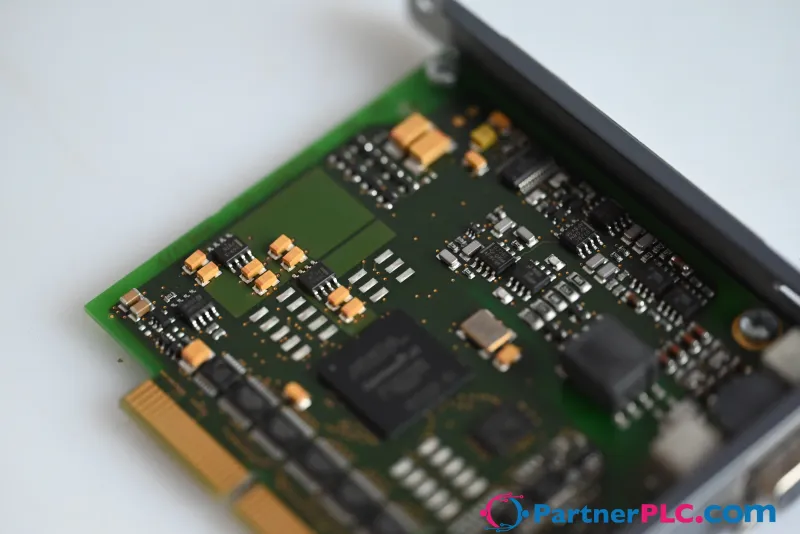

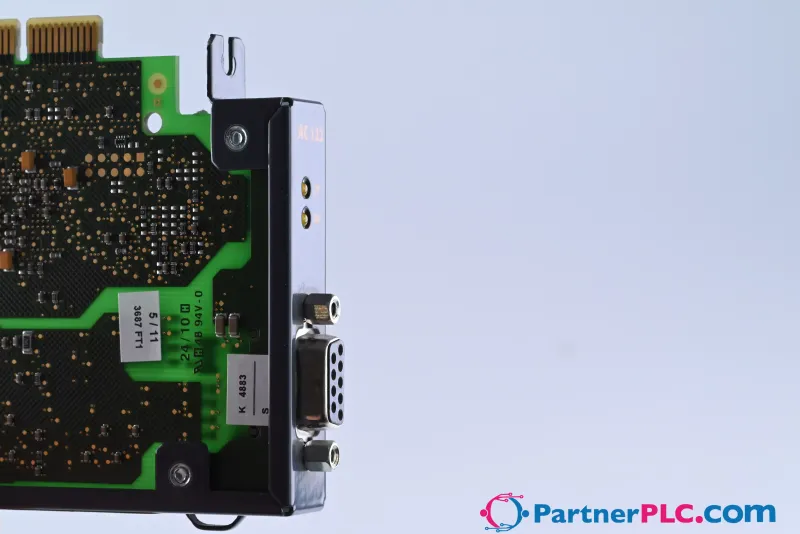

B&R 8AC122.60-3 Used Rev. F0

Name: B&R 8AC122.60-3 Used Rev. F0
Brand: B&R
SKU: 8AC122.60-3
Price: 111.30 EUR
Availability: InStock

MPN: 8AC122.60-3 · Brand: B&R

€111.30 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	Servo & Motion Control
Warranty	3-month
Weight	0.059 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8AC122.60-3 be shipped?

8AC122.60-3 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 8AC122.60-3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8AC122.60-3.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC122.60-3, subject to availability and destination.

• Resolver interface for installation in ACOPOS servo drives

• Monitors encoder input signals

• Resolver type BRX

ACOPOS plug-in module, resolver interface 10 kHz

Accessories

Optional accessories (6)

8CR025.12-1	Resolver cables — UL/CSA certified; Can be used in cable drag chains; Optimally suited for use with ACOPOS servo drives and B&R servo motors Resolver cable,…
8CR020.12-1	Resolver cables — UL/CSA certified; Can be used in cable drag chains; Optimally suited for use with ACOPOS servo drives and B&R servo motors Resolver cable,…
8CR015.12-1	Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors Resolver cable, length 15 m,…
8CR010.12-1	Resolver cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors Resolver cable, length 10 m,…
8CR007.12-1	Resolver cables — UL/CSA certified; Can be used in cable drag chains; Optimally suited for use with ACOPOS servo drives and B&R servo motors Resolver cable,…
8CR005.12-1	Resolver cables — UL/CSA certified; Can be used in cable drag chains; Optimally suited for use with ACOPOS servo drives and B&R servo motors Resolver cable,…

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0xA48B
Slot " data-placement="top" data-html="true" data-container="body" data-content="The AC122 is an encoder module. It is also possible to connect multiple encoder modules. In this case, the encoder module in the smallest slot automatically serves as motor feedback.">	Slots 2, 3 and 4
Max. cable length	100 m
Power consumption	Max. 2.5 W

Resolver inputs

Reference output – Output current	Max. 50 mA eff
Reference output – Differential voltage	Typ. 3.4 V eff
Reference output – Frequency	10 kHz
Reference output – Signal transmission	Differential signals
Electrical isolation – Resolver - ACOPOS	No
Resolver – Input frequency	10 kHz
Resolver – Input voltage	3 to 7 V rms
Resolver – Number of pins	2-pin
Resolver – Type	BRX " data-placement="top" data-html="true" data-container="body" data-content="BRX resolvers are fed with a sinusoidal signal (reference signal) from the module and as a result provide two sinusoidal signals offset by 90° from each other whose amplitudes change with the angular position of the resolver. In contrast to BRX resolvers, BRT resolvers must be fed with two sinusoidal signals offset by 90° to each other. A single sinusoidal signal of constant amplitude is returned whose phase relationship changes with the angular position of the resolver. Evaluation of BRT resolvers with 8AC122.60-3 is possible in principle starting with firmware V2.040; resolution and accuracy are limited due to the inverse operation of the resolver, however. In addition, the nominal transformation ratio deviates from the default value of 0.5 and must be configured accordingly.">
Resolver – Max. phase shift	±45°
Resolver – Max. elec. angular error	±10 angular minutes
Resolver – Nominal transformation ratio " data-placement="top" data-html="true" data-container="body" data-content="Starting with firmware V2.040, the nominal gear ratio can be configured in the range 0.3 ... 0.5 (default value).<br> Starting with firmware V2.230, the nominal gear ratio can be configured in the range 0.2 ... 0.5 (default value).">	0.5 ±10%
Sine/Cosine inputs – Input impedance at 10 kHz (per pin)	10.4 kΩ - j 11.1 kΩ
Sine/Cosine inputs – Signal transmission	Differential signals
Sine/Cosine inputs – Encoder-ACOPOS electrical isolation	No, common-mode voltage on the sine/cosine inputs max. ±20 V
Angular position resolution	14 bits/rev " data-placement="top" data-html="true" data-container="body" data-content="By default, a resolution of 12 bits/rev is set, but the resolution can be switched to 14 bits/rev.">
Module-side connection	9-pin female DSUB
Status indicators	UP/DN LEDs
Bandwidth	2.5 kHz
Encoder monitoring	Yes
Accuracy	±8 angular minutes

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8AC122.60-3	PDF · 936 KB · 1.5 (04/24/2020) - EN
ACOPOS User´s Manual	PDF · 54 MB · 2.10 (05/23/2022) - EN

CAD & dimension drawings

3D file STEP 8AC122.60-x

ZIP · 116 KB · 1.0 (03/04/2013)

Certificates (4)

ACOPOS KC certificates	ZIP · 601 KB · 1.00 (04/03/2019)
E225616 UL Certificate of Compliance ACOPOS	PDF · 242 KB · 1.1 (09/11/2019)
EU Declaration Servos ACOPOS	PDF · 271 KB · 2024-02 (10/29/2025)
UK Declaration Servos ACOPOS	PDF · 109 KB · 2022-09 (09/08/2022)
