What is the B&R 4XP0000.00-K76?

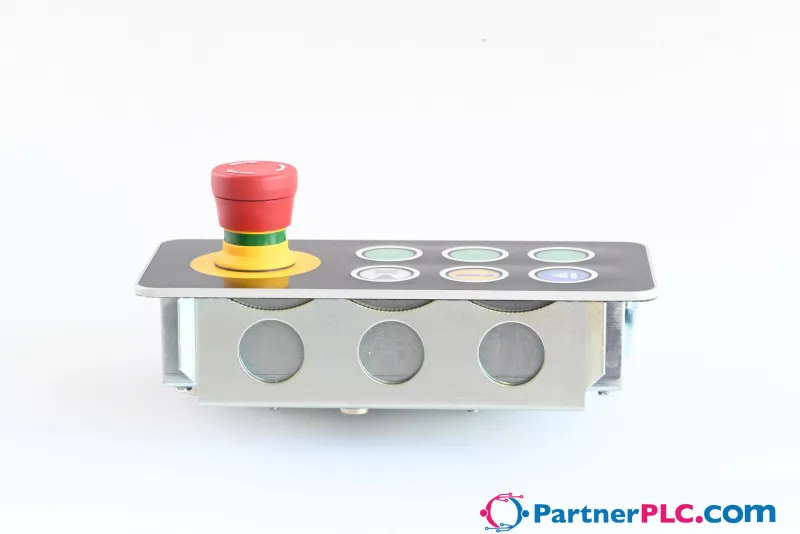

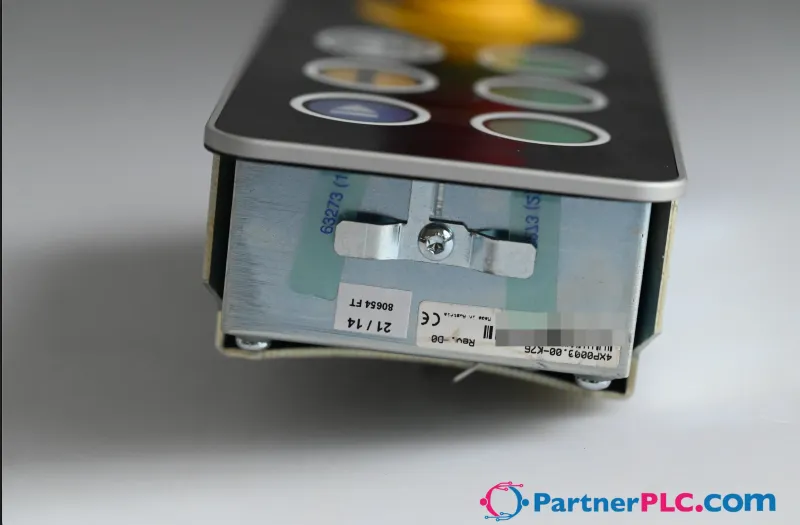

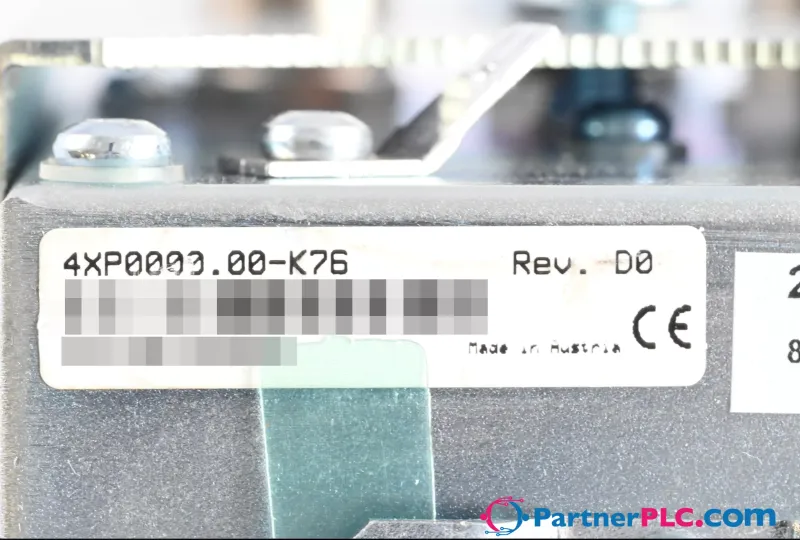

B&R 4XP0000.00-K76

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment

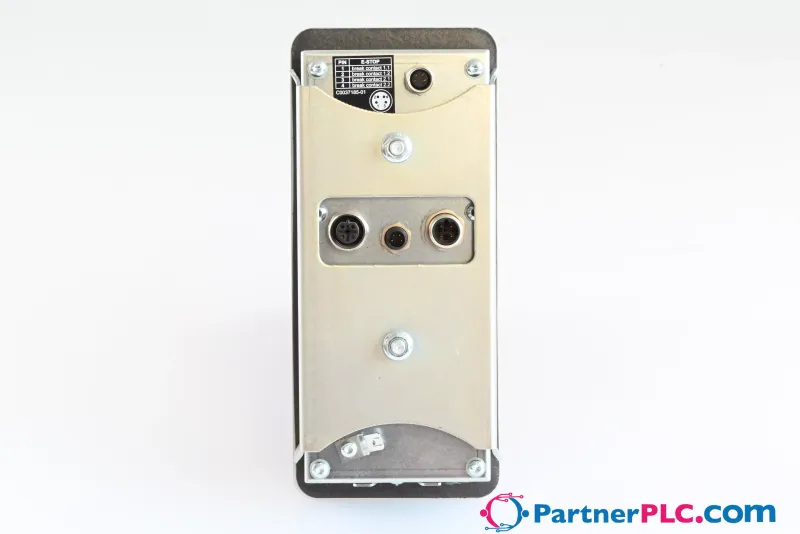

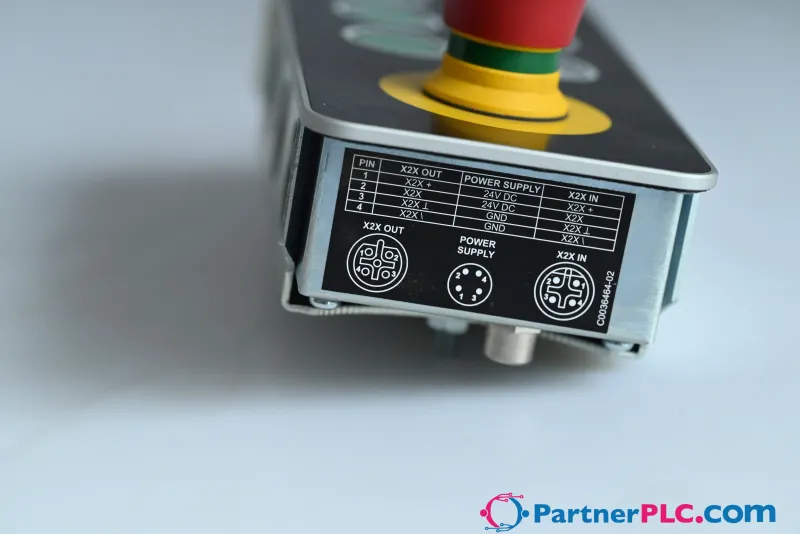

Interfaces

X2X – Type	X2X slave
X2X – Execution	4-pin M12 connector
X2X – Internal bus power supply	Yes
X2X – Distance between 2 stations	100 m
X2X – Electrical isolation	Yes

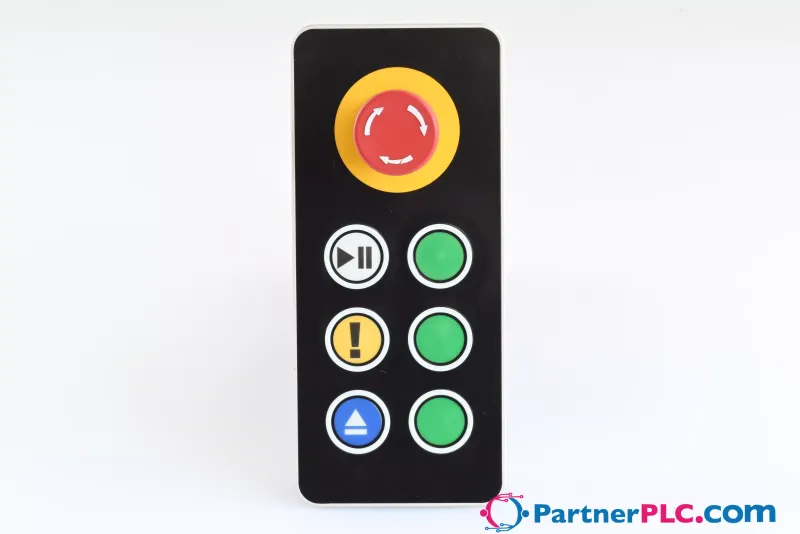

Keys

Illuminated ring keys – Color	Red, green, yellow, white
Illuminated ring keys	6x B&R illuminated ring keys

Features

Emergency stop – Type	Rafix 22FS 1.30.273.511/0300
Emergency stop – Contact element	2x normally closed contact

Electrical properties

Nominal voltage	24 VDC
Power consumption	Max. 8 watts
Voltage range	18 - 30 VDC
Current consumption	Max. 320 mA (at nominal voltage)

Operating conditions

Degree of protection per EN 60529	Front: IP65 Back: IP65
Degree of protection per UL 50	Front: Type 4X indoor use only

Ambient conditions

Temperature – Operation	0 to +50°C
Temperature – Storage	-20 to +60°C
Temperature – Transport	-20 to +60°C
Relative humidity – Operation	T ≤ 40°C: 5 to 85%, non-condensing; T > 40°C: <75%, non-condensing
Relative humidity – Storage	T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing
Relative humidity – Transport	T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <75%, non-condensing
Elevation – Operation	Max. 3000 m

Mechanical properties

Housing – Material	Steel sheet, galvanized
Front – Material	Polyester
Front – Frame	Aluminum, naturally anodized
Front – Design	RAL 9005, glossy surface
Front – Gasket	Flat gasket around display front
Dimensions – Width	77 mm
Dimensions – Height	175 mm
Dimensions – Depth	86 mm
Weight	600 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 4XP0000.00-K76PDF · 1 MB · 1.40 (03/15/2017) - EN

CAD & dimension drawings
