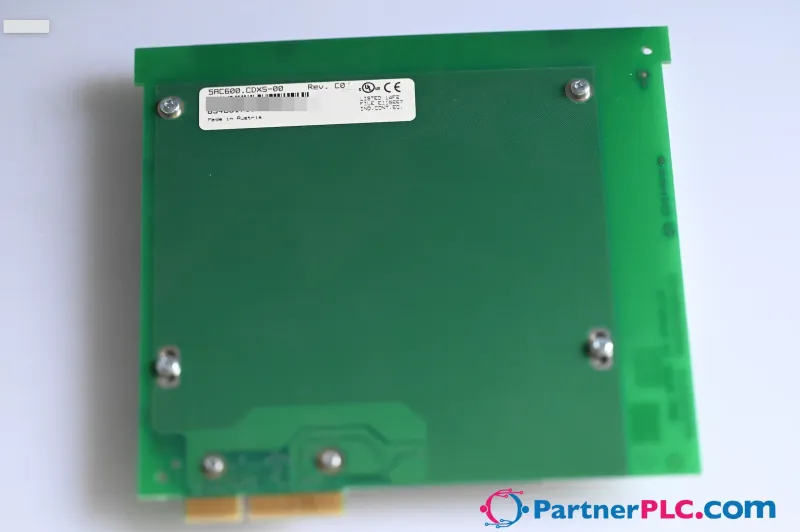

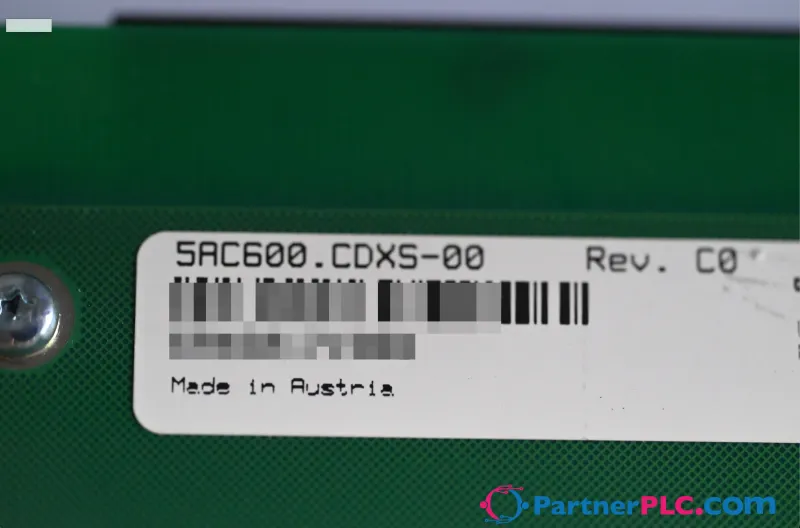

B&R 5AC600.CDXS-00

Analog I/O Module

MPN: 5AC600.CDXS-00
Category: Analog I/O Modules

€68.90excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 5AC600.CDXS-00?

Analog I/O Module

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

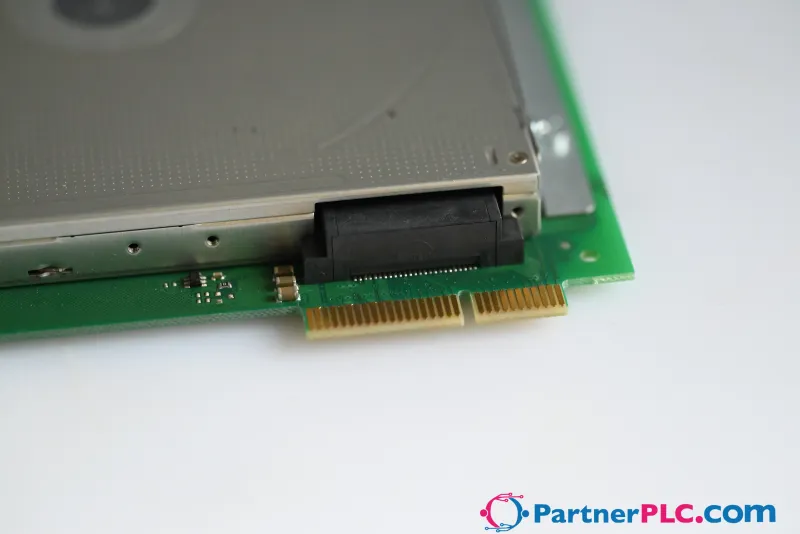

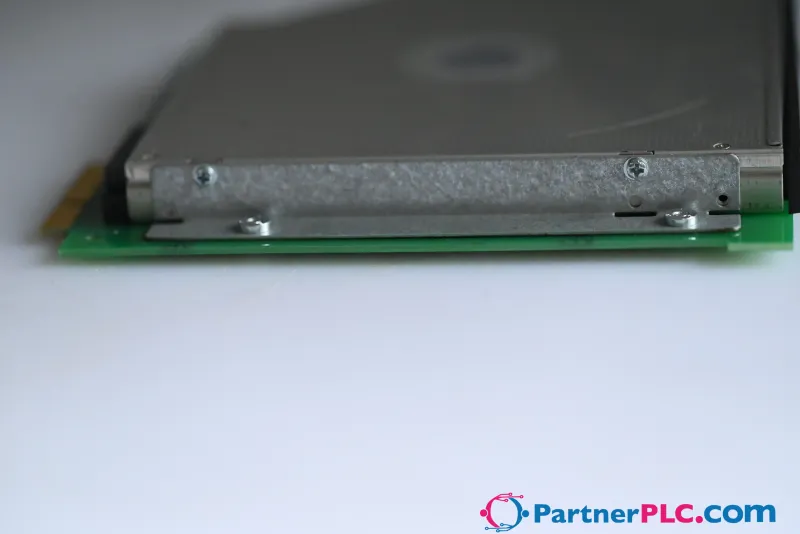

CD/DVD drive

Startup time – CD	Max. 10 seconds (from 0 rpm to read operation)
Access time – CD	On average 115 ms
Readable media – CD	CD/CD-ROM (12 cm, 8 cm), CD-R, CD-RW
Readable media – DVD	No
Read speed – CD	24x
Speed	Max. 5136 rpm ±1%
Compatible formats	CD-DA, CD-ROM mode 1 / mode 2; CD-ROM XA Mode 2 (form 1, form 2) ; Photo CD (single-/multi-session) ; Enhanced CD

Ambient conditions

Temperature – Operation	5 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Transport	-20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Relative humidity – Operation	8 to 80%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	5 to 95%
Vibration – Operation	At max. 5 to 500 Hz and 0.3 g
Vibration – Storage	At max. 5 to 500 Hz and 2 g
Vibration – Transport	At max. 5 to 500 Hz and 2 g
Shock – Operation	At max. 7 g and 11 ms duration
Shock – Storage	At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration
Shock – Transport	At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration

Mechanical properties

Weight

253 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation PC 620 User manualPDF · 15 MB · 2.68 (05/08/2015) - EN
