B&RUsed

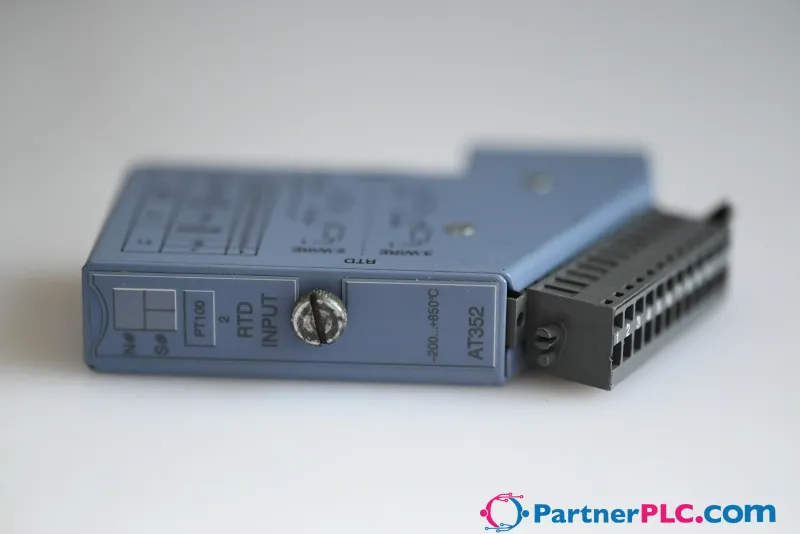

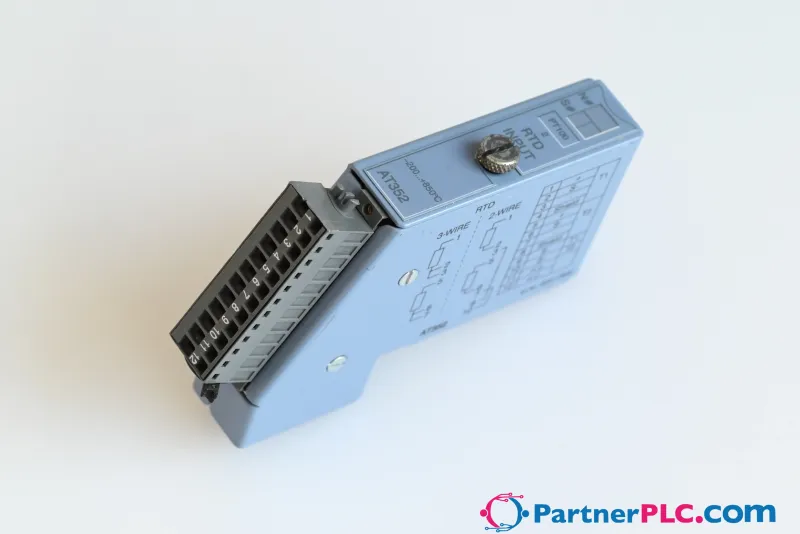

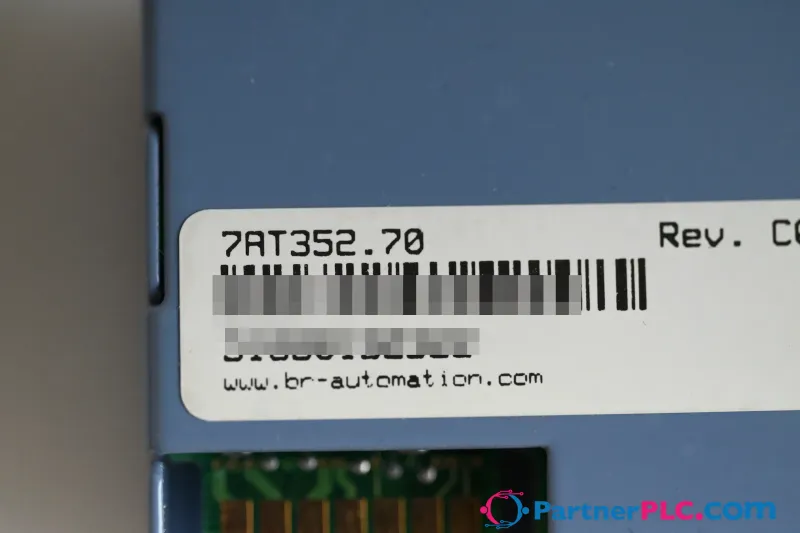

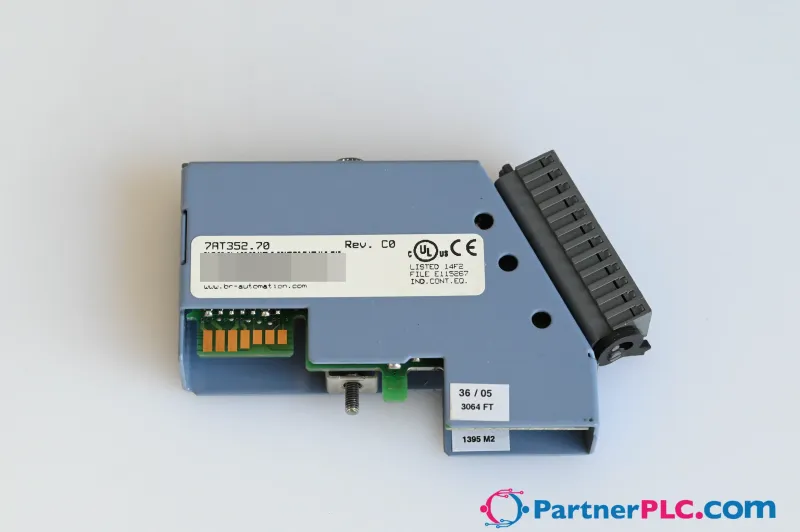

B&R 7AT352.70

Analog I/O Module

MPN: 7AT352.70
Category: Analog I/O Modules

€26.50excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 7AT352.70?

Analog I/O Module

Specifications

General Information

Short Description	2003 Analog Input Module, 2 inputs, PT100 (3-line connection), -200 to +850 °C, screw-in module, Order TB712 terminal block separately!
C-UL-US Listed	in preparation
B&R ID Code	$1A
Slot	AF101 adapter module, CP interface

Static Characteristics

Module Type	B&R 2003 screw-in module
Sensor – Type	PT100

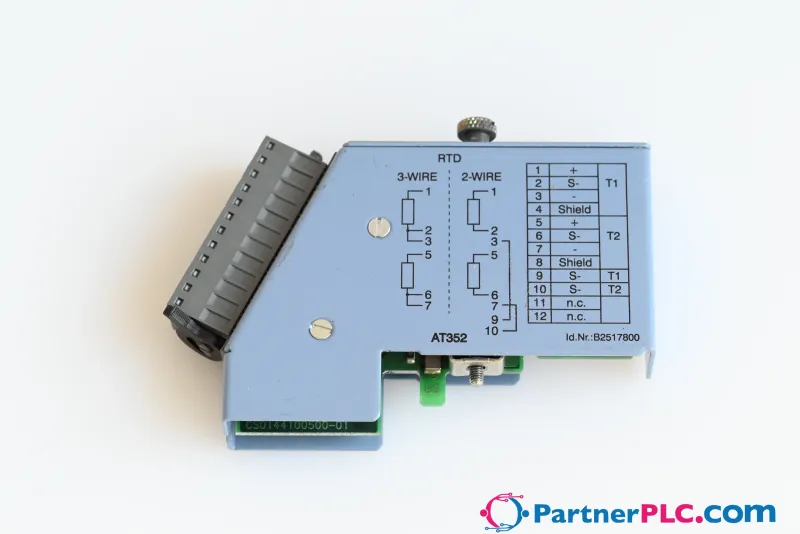

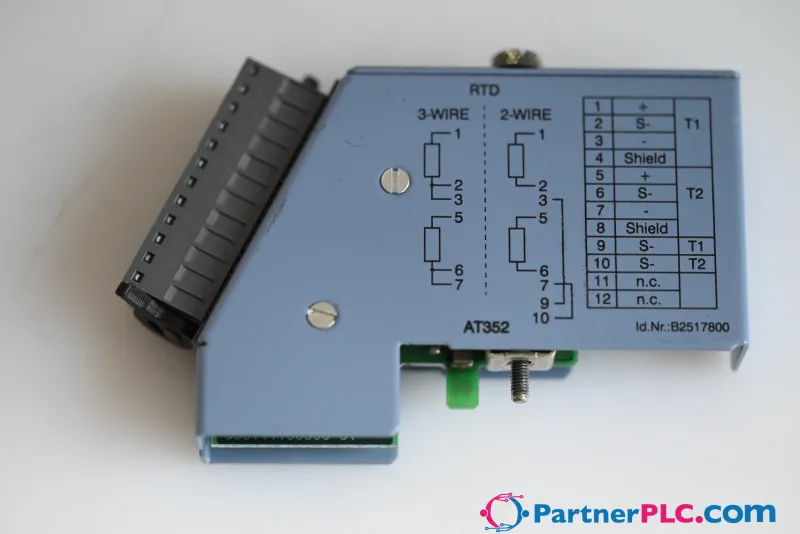

Sensor – Connection	3-line connection
Sensor – Standard	IEC/EN 60751
Digital Converter Resolution	16 Bit
Measurement Range	2 ranges can be set
Small Measurement Range	-200.00 to +327,67 °C
Resolution	0.01 °C
Large Measurement Range	-200.0 to +850.0 °C
Resolution	0.1 °C
Measurement Update	20 or 16.67 ms
Maximum Temperature Measurement	±(0.17 + 0.0005 * T F) [°C]
Error at 25 °C	TF ... Sensor Temperature in °C
Maximum Temperature Measurement	±(0.01 + 0.000031 * TF) [°C]
Error because of drift per °C	TF ... Sensor Temperature in °C
Conversion of Measurement Values to	Automatic in the module
Measurement Current	2 mA
Power Consumption	Max. 0.4 W

Operating Characteristics

Electrical Isolation – Input - PCC	No
Electrical Isolation – Input - Input	No

Mechanical Characteristics

Dimensions

B&R 2003 screw-in module

Accessories

Required accessories (order separately)

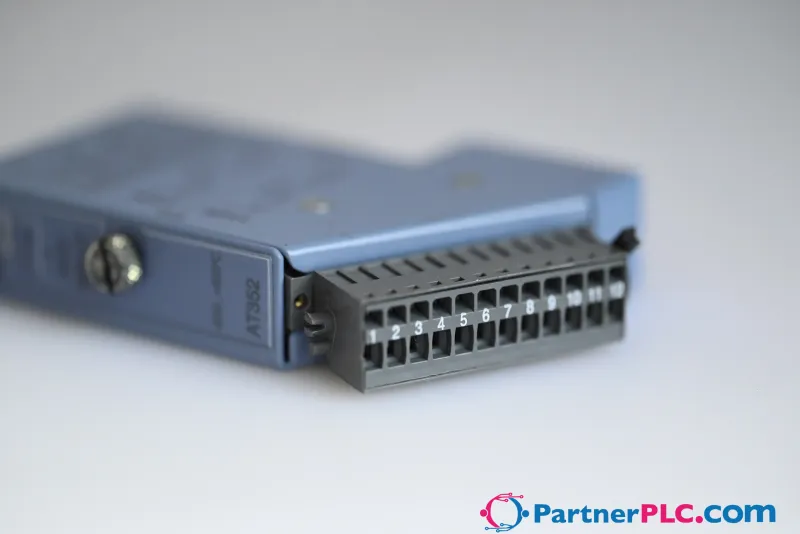

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7AT352.70PDF · 317 KB · 1.0 (06/08/2004) - EN
