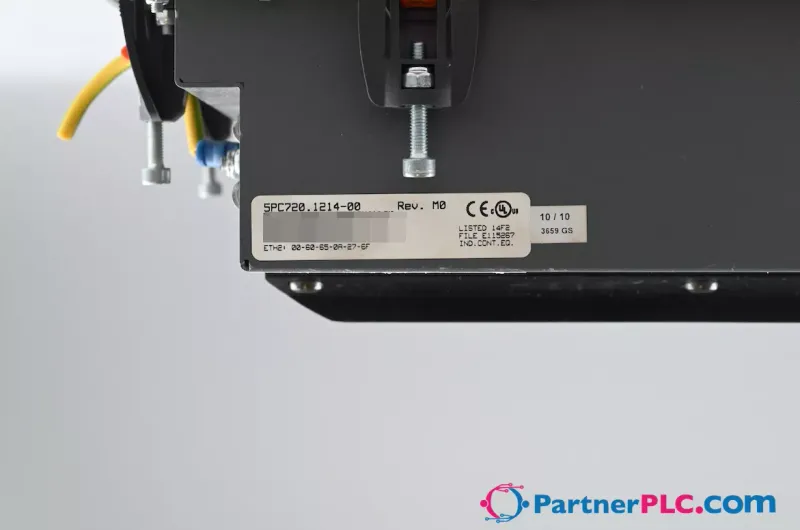

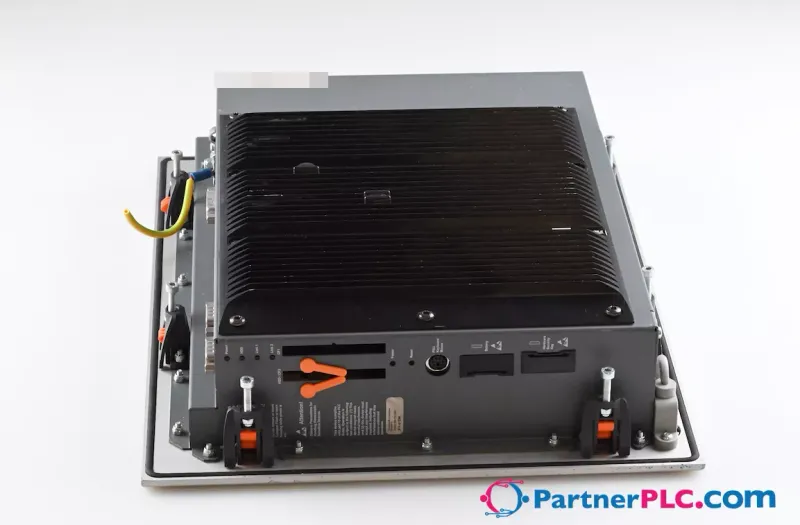

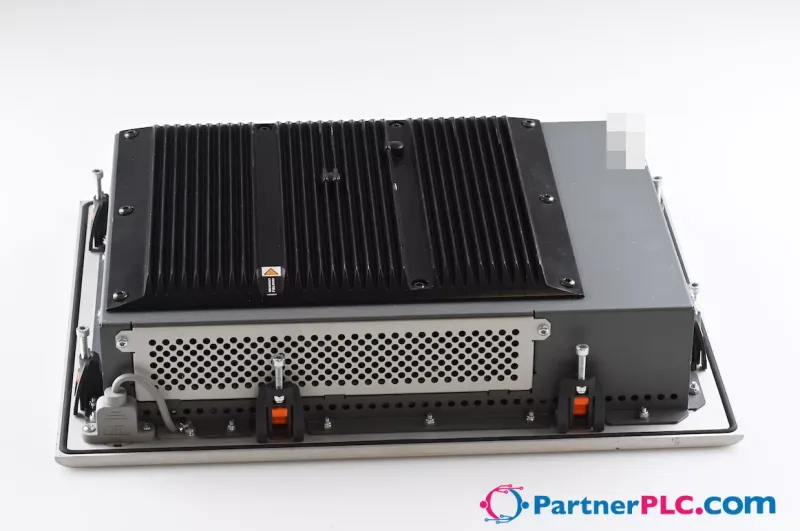

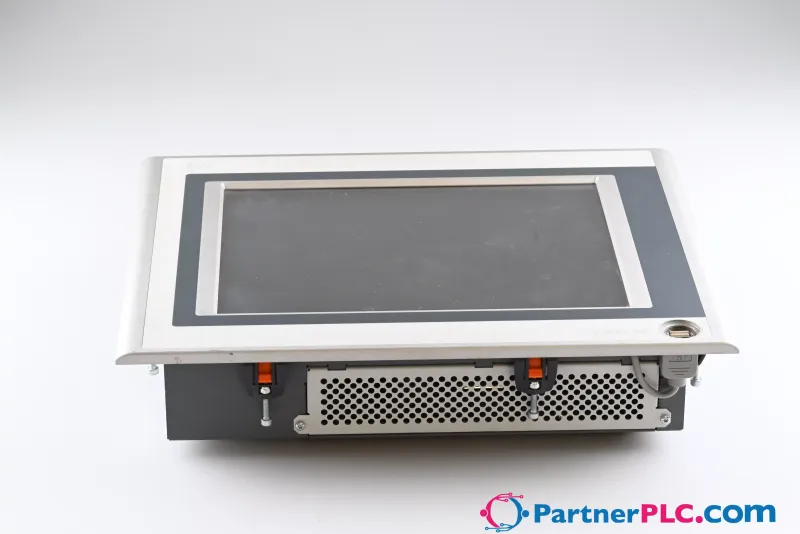

B&R 5PC720.1214-00

Industrial PC

MPN: 5PC720.1214-00
Category: Industrial PCs

€147.34excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 5PC720.1214-00?

Industrial PC

Specifications

General information

Battery – Type	Renata 950 mAh
Battery – Service life	4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.)
Battery – Removable	Yes, accessible from the outside
Battery – Variant	Lithium ion
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Dongle port	Yes
LEDs	Power, HDD, Link 1
B&R ID code	0x1C5E
Cooling	Fan slot for fan kit
Power button	Yes
Reset button	Yes
Buzzer	Yes
Keyboard/Mouse	PS/2 (combined)

Controller

SRAM – Note

Display

Viewing angles – Horizontal	Direction R / Direction L = 80°
Viewing angles – Vertical	Direction U / Direction D = 60°
Backlight – Type	LED
Backlight – Brightness	450 cd/m²
Backlight – Half-brightness time	50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.)
Touch screen – Type	AMT
Touch screen – Technology	Analog, resistive
Touch screen – Controller	Elo, serial, 12-bit
Touch screen – Transmittance	Up to 81% ±3%
Type	TFT color
Diagonal	12.1" (307 mm)
Colors	262,144
Resolution	SVGA, 800 x 600 pixels
Contrast	800:1

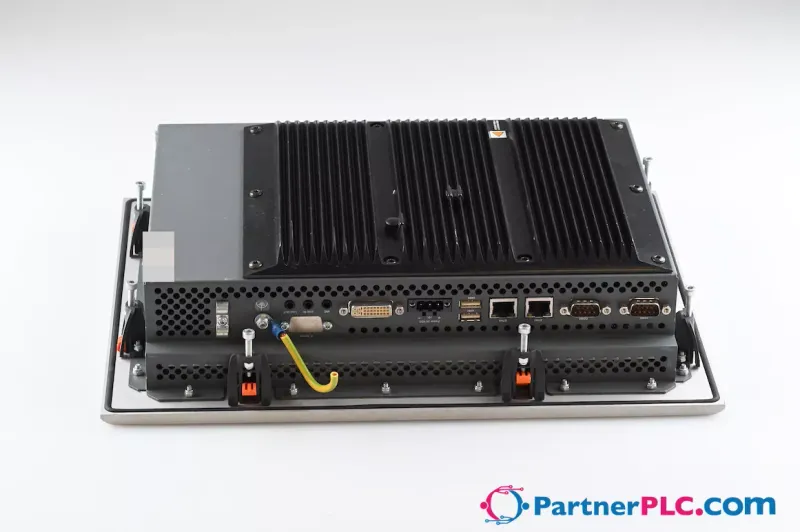

Interfaces

COM1 – Type	RS232, modem supported, not galvanically isolated
COM1 – Variant	9-pin male DSUB connector
COM1 – UART	16550-compatible, 16-byte FIFO buffer
COM1 – Max. baud rate	115 kbit/s
COM2 – Type	RS232, modem supported, not galvanically isolated
COM2 – Variant	9-pin male DSUB connector
COM2 – UART	16550-compatible, 16-byte FIFO buffer
COM2 – Max. baud rate	115 kbit/s
CompactFlash slot 1 – Type	Type I
CompactFlash slot 2 – Type	Type I (note: For add-on CompactFlash slot or add-on hard disks.)
CompactFlash slot 2 – Note	optional
USB – Quantity	3 (note: 2x rear, 1x front)
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
Ethernet – Quantity	2
Ethernet – Transfer rate	10/100 Mbit/s
Ethernet – Max. baud rate	100 Mbit/s
Panel/Monitor interface – Variant	Female DVI-I connector
Panel/Monitor interface – Type	SDL/DVI/Monitor
Audio – Type	AC97 sound
Audio – Inputs	Microphone, Line In
Audio – Outputs	Line Out
Add-on interface slot – Quantity	1

Keys

Function keys	No
Soft keys	No
System keys	No
Service life	-
LED luminous intensity	-

Slots

PCI slots – Quantity	-
PCI slots – Type	-
PCI slots – Variant	-
PCI slots – Standard	-
PCI slots – Bus speed	-
Slide-in drives	No
Add-on drives	optional (note: For add-on CompactFlash slot or add-on hard disks.)
Automation Panel Link slot	No
Slot for fan kit	Yes

Electrical properties

Nominal voltage	24 VDC ±25%
Nominal current	3.8 A
Inrush current	Typ. 10 A, max. 40 A for < 300 μs
Galvanic isolation	Yes

Operating conditions

Degree of protection per EN 60529

Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water; Back: IP20 (only with connected CF card)

Ambient conditions

Temperature – Operation	Component-dependent
Temperature – Storage	-30 to 70°C
Temperature – Transport	-30 to 70°C
Relative humidity – Operation	Component-dependent
Relative humidity – Storage	Component-dependent
Relative humidity – Transport	Component-dependent
Vibration – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Vibration – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock – Operation	15 g, 11 ms
Shock – Storage	30 g, 15 ms
Shock – Transport	30 g, 15 ms
Elevation – Operation	Max. 3000 m

Mechanical properties

Housing – Material	Metal
Front – Material	Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Light background color	Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Dark border color around display	Similar to Pantone 432CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Gasket	Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	362 mm
Dimensions – Height	284 mm
Dimensions – Depth	86.3 mm with heat sink 5AC700.HS01-01 or 5AC700.HS01-03 ; 101.5 mm with heat sink 5AC700.HS01-02
Weight	Approx. 4200 g (component-dependent)

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
5PC600.X945-00	CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB…
5AC700.HS01-03	Heat sinks — Panel PC heat sink for CPU boards with Atom 1600 MHz.
5MMDDR.2048-01	Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300
5MMDDR.1024-01	Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300
5MMDDR.0512-01	Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300

Optional accessories (6)

5AC600.HDDI-06	Drives — 80 GB hard disk; Add-on; Specified for 24-hour operation; S.M.A.R.T. Support This 80 GB hard disk is specified for 24-hour operation and al…
5AC600.HDDI-05	Drives — This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET).
5AC600.CFSI-00	Drives — CompactFlash slot; Add-on This add-on drive provides a slot for a CompactFlash card.
5PC700.FA00-01	Fan kits — Panel PC fan kit for Panel PC 700 10.4", 12.1", 15", 17" and 19" with 0 PCI slots.
5AC600.CANI-00	Serial adapters — The add-on CAN interface is equipped with an Intel 82527 CAN controller that conforms to the CAN 2.0 specification, Part A/B. The CAN contr…
5AC600.485I-00	Serial adapters — This serial interface is a combined RS232/RS422/RS485 interface. The operating mode (RS232/RS422/RS485) is selected automatically depending…
