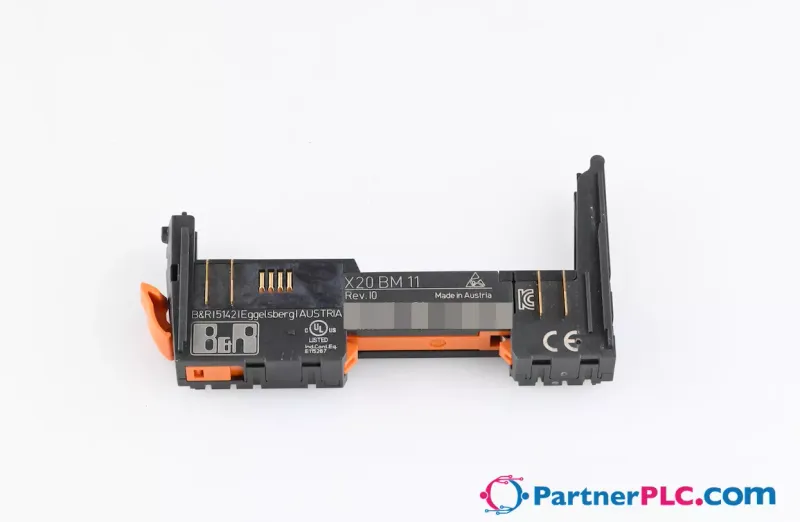

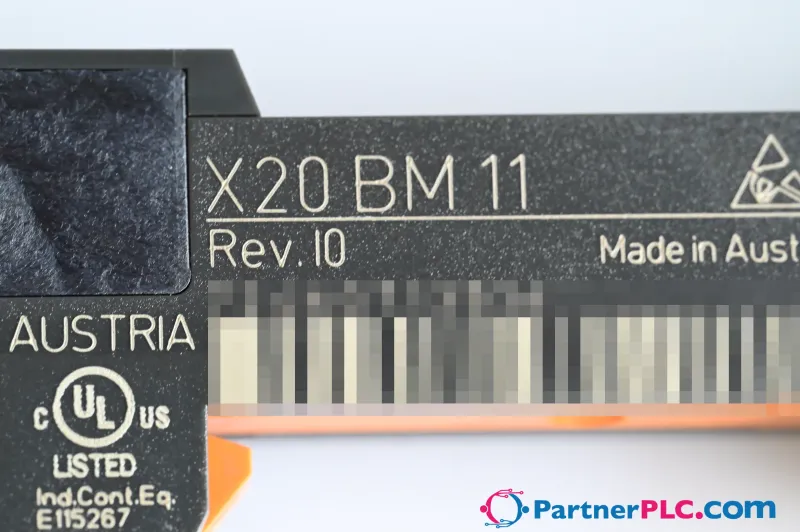

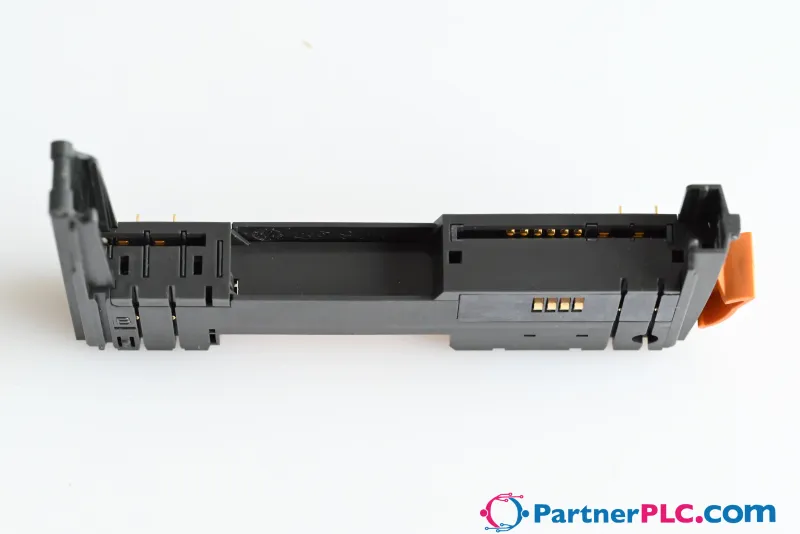

B&R X20BM11

Bus module for 24 VDC I/O modules The internal I/O power supply is connected through

MPN: X20BM11
Category: Communication Modules

€5.30excl. VAT & shipping

In stock — 127 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20BM11?

Bus module for 24 VDC I/O modules The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O modules. The internal I/O power supply is connected through.

Specifications

Short description

Bus module

Bus module, 24 VDC keyed, internal I/O power supply connected through

General information

Power consumption – Bus	0.13 W
Power consumption – Internal I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
Additional power dissipation caused by actuators (resistive) [W]	-

I/O power supply

Nominal voltage	24 VDC
Permissible contact load	10 A

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch

12.5 +0.2 mm
