8AC114.60-2 | B&R Industrial Automation
Request a Quote
Quick facts
| Availability | In stock — 2 available |
| Category | Servo & Motion Control |
| Warranty | 3-month |
| Weight | 0.1 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8AC114.60-2 be shipped?
8AC114.60-2 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8AC114.60-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8AC114.60-2.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC114.60-2, subject to availability and destination.
• POWERLINK interface for installation in ACOPOS servo drives
• Integrated 2-port hub for easy wiring
• For communication and configuration of ACOPOS servo drives in complex and time-critical applications
• Node number configurable using switch

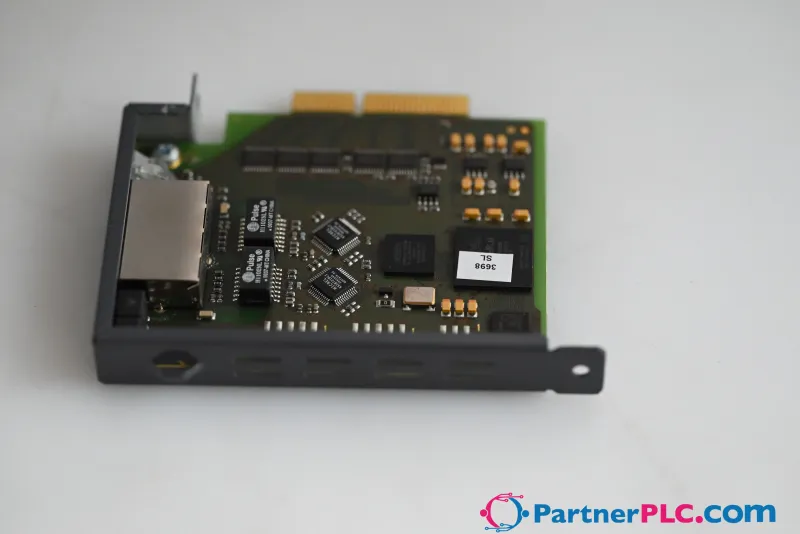

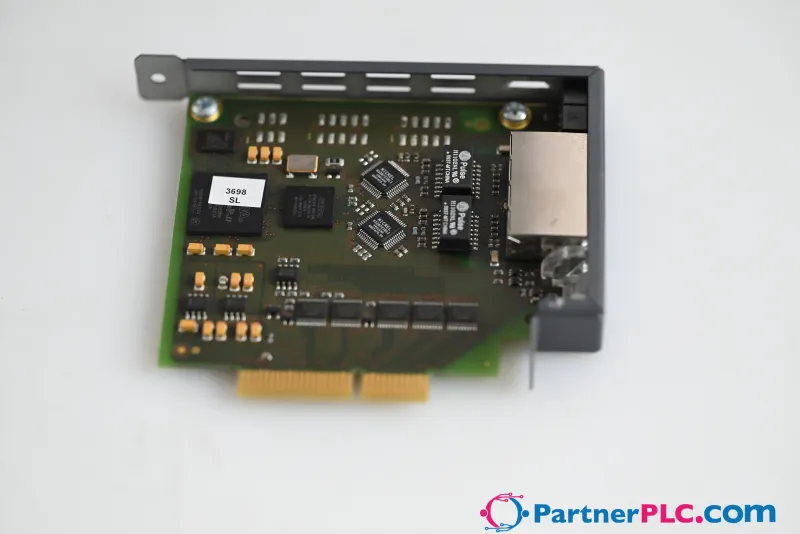

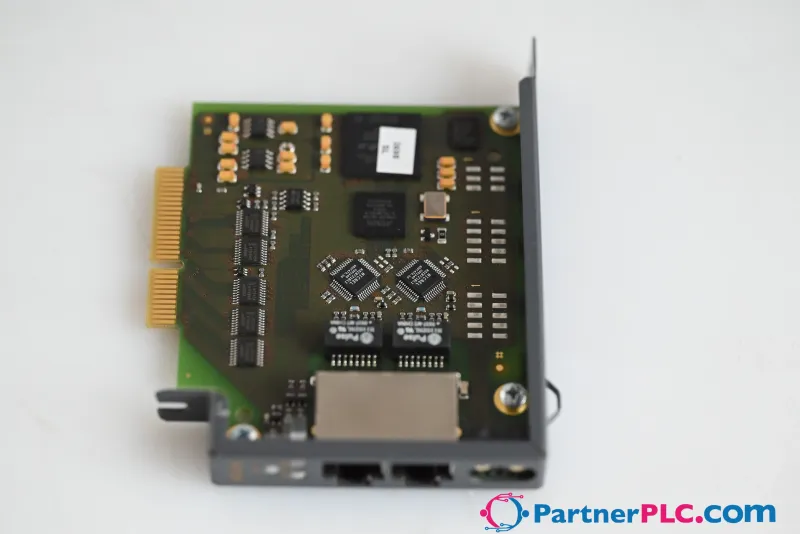

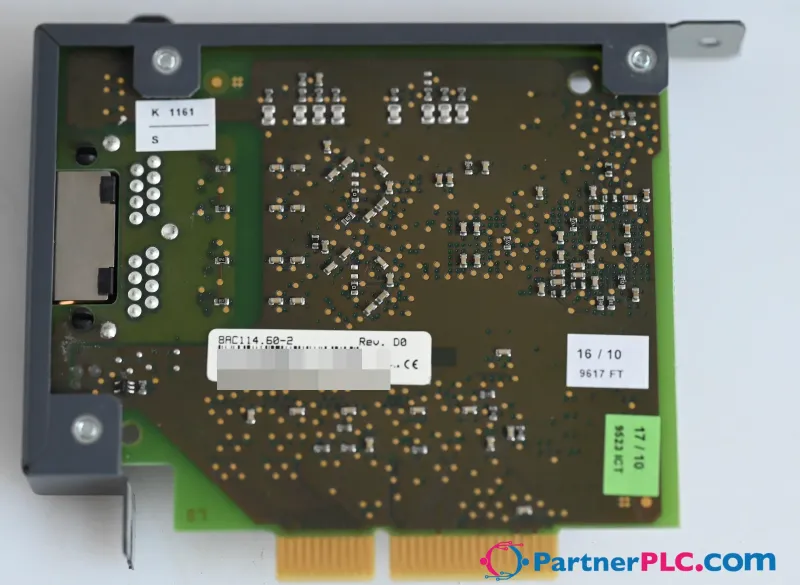

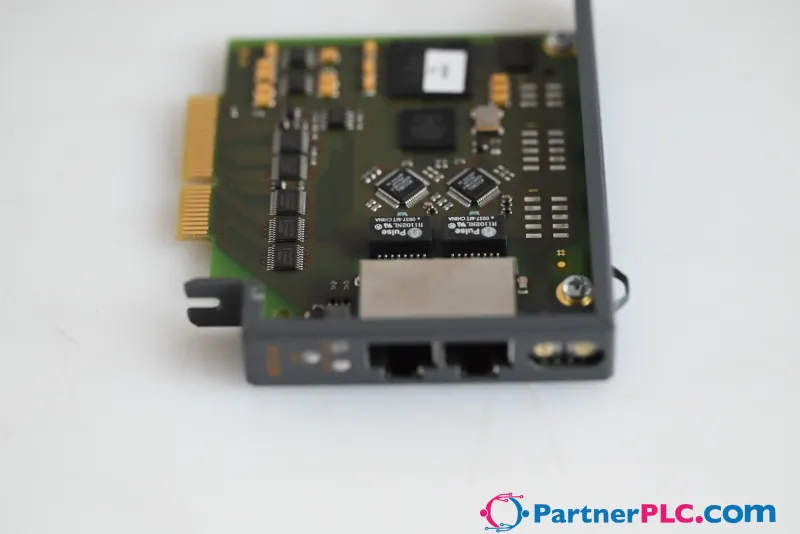

ACOPOS plug-in module, POWERLINK V2 interface
Accessories
Optional accessories (8)
| X20CA0E61.01800 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 18 m |
| X20CA0E61.01000 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 10 m |
| X20CA0E61.00600 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 6 m |
| X20CA0E61.00500 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 5 m |
| X20CA0E61.00200 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 2 m |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00020 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
Specifications
General information
| Support – Dynamic node allocation (DNA) | No |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Module type | ACOPOS plug-in module |
| B&R ID code | 0xA5C1 |
| Slot | Slot 1 |
| Power consumption | Max. 3 W |
Interfaces
| POWERLINK – Hardware | Yes (via ACOPOS servo drive) |
| POWERLINK – Software | Yes (via ACOPOS servo drive) |
| POWERLINK – Quantity | 1 |
| POWERLINK – Module-side connection | 2x RJ45 port |
| POWERLINK – Status indicators | Status LED + 2x Link LED |
| POWERLINK – Transfer rate | 100 Mbit/s |
| POWERLINK – 2-port hub | Yes |
| POWERLINK – Possible station operating modes | Synchronous to the POWERLINK cycle |
| POWERLINK – Electrical isolation | Yes |
| POWERLINK – Cabling topology | Star or tree with level 2 hubs |
| POWERLINK – Maximum number of hub levels | 10 |
| POWERLINK – Line length | Max. 100 m between two stations (segment length) " data-placement="top" data-html="true" data-container="body" data-content="The maximum total cable length is 200 m with a cycle time of 400 µs and 10 ACOPOS servo drives."> |
| POWERLINK – Network-capable | Yes |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8AC114.60-2 | PDF · 2 MB · 1.7 (04/24/2020) - EN |
| ACOPOS User´s Manual | PDF · 54 MB · 2.10 (05/23/2022) - EN |
CAD & dimension drawings
| 3D file STEP 8AC114.60-2 | ZIP · 863 KB · 1.0 (03/04/2013) |
Certificates (4)
| ACOPOS KC certificates | ZIP · 601 KB · 1.00 (04/03/2019) |
| E225616 UL Certificate of Compliance ACOPOS | PDF · 242 KB · 1.1 (09/11/2019) |
| EU Declaration Servos ACOPOS | PDF · 271 KB · 2024-02 (10/29/2025) |
| UK Declaration Servos ACOPOS | PDF · 109 KB · 2022-09 (09/08/2022) |
