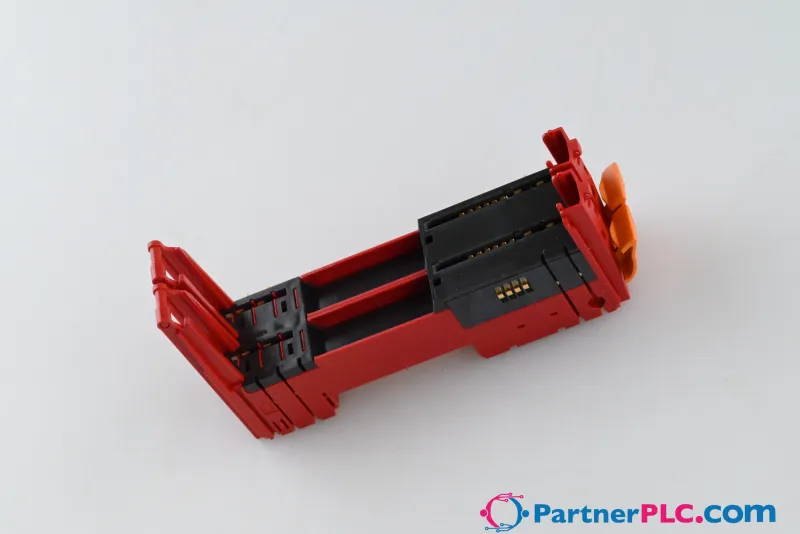

B&R X20BM32 – Bus module for double-width 240 VAC I/O modules
Request a Quote
Quick facts
| Availability | In stock — 9 available |
| Category | Communication Modules |
| Warranty | 12-month |
| Weight | 0.08 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20BM32 be shipped?
X20BM32 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20BM32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20BM32.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BM32, subject to availability and destination.
• Bus module for double-width 240 VAC I/O modules
• The internal I/O supply is interconnected
• 240 V coding for bus module, electronic module and terminal block
The bus module serves as the base for all double-width 240 VAC X20 I/O modules. The internal I/O supply is interconnected.
Specifications
Short description
| Bus module | Bus module, for double-width modules, 240 VAC keyed, internal I/O power supply connected through |
General information
| Power consumption – Bus | 0.13 W |
| Power consumption – Internal I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| Additional power dissipation caused by actuators (resistive) [W] | - |
I/O power supply
| Nominal voltage | 24 VDC |
| Permissible contact load | 10 A |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch | 25 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet X20(c)BM32 | PDF · 2 MB · 1.27 (02/10/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20BM31/2 | ZIP · 325 KB · 1.00 (11/20/2015) |
Certificates (16)
More B&R parts
UsedB&R 8AC114.60-2 – POWERLINK interface for installation in ACOPOS servo drives
NewB&R 7DO138.70 – 2003 digital output module, 8 outputs 24 VDC, 0.5 A
Available on requestB&R 8AC110.60-2 – CAN interface for installation in ACOPOS servo drives

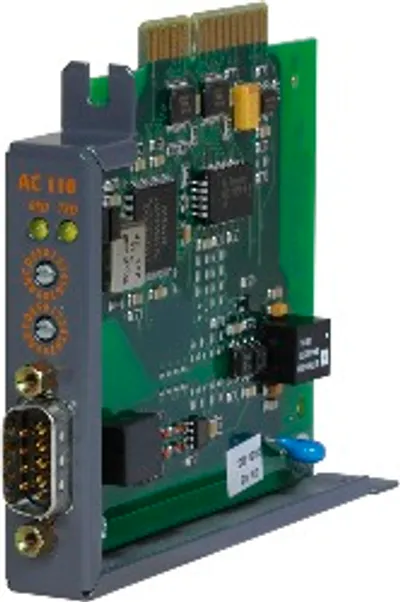

Available on requestB&R 8AC110.60-3 – ACOPOS plug-in module, CAN interface
