Used

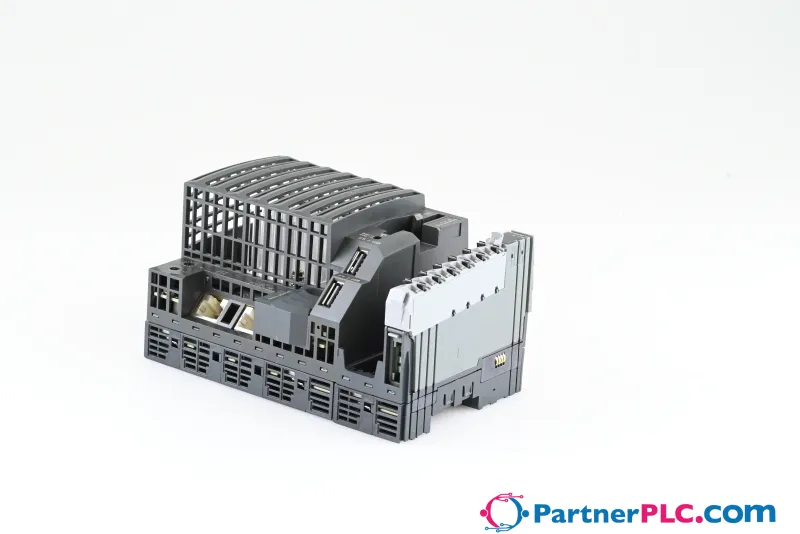

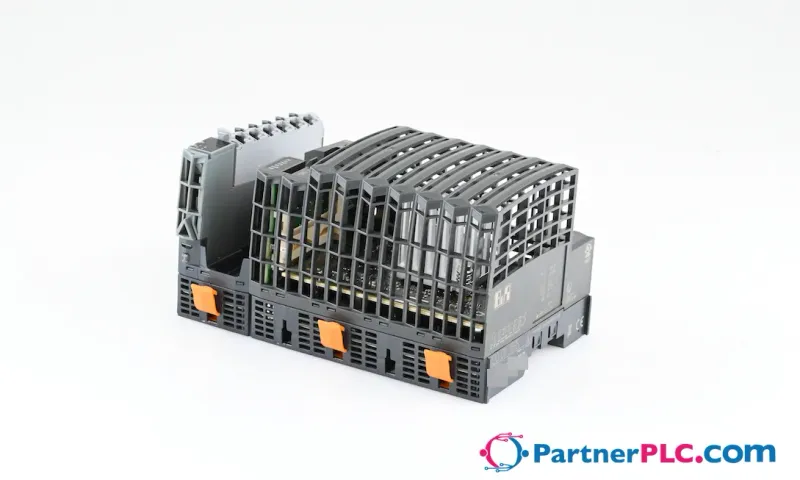

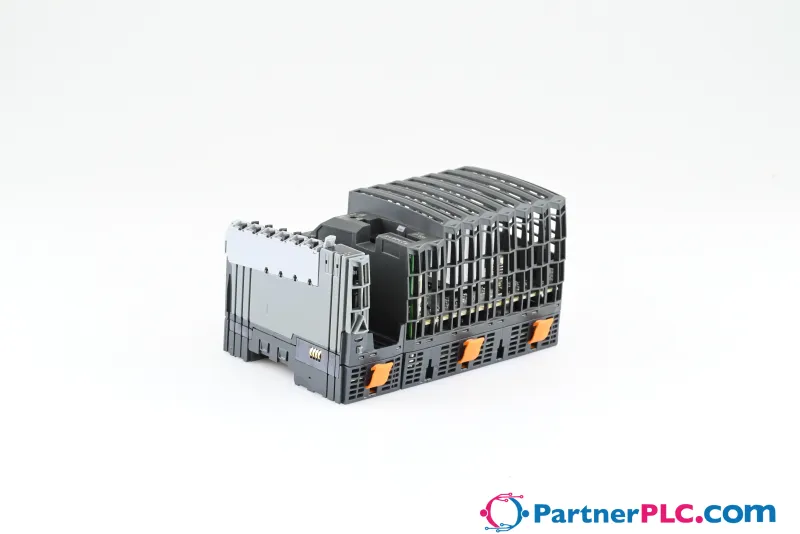

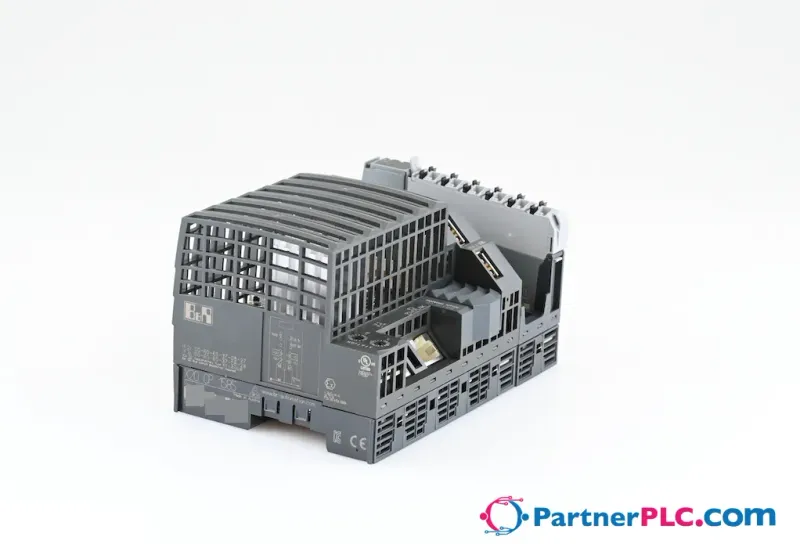

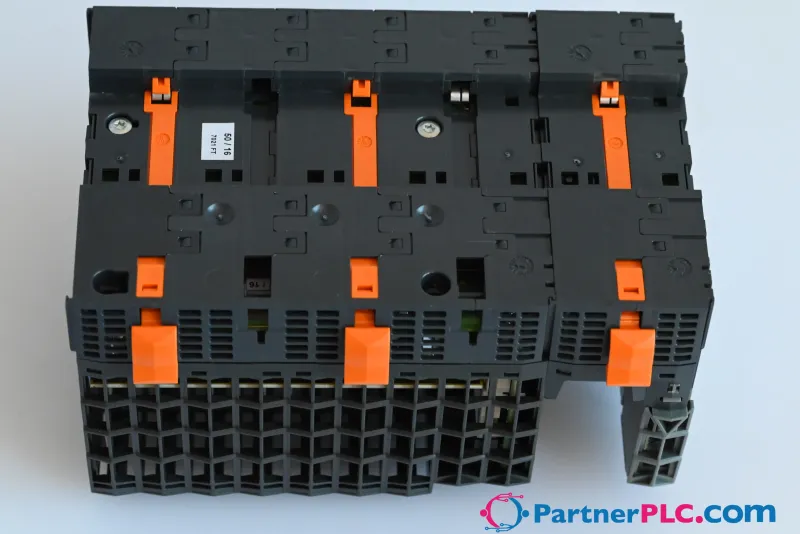

X20CP1585 | B&R Industrial Automation
MPN: X20CP1585 · Brand: B&R
€1,058.94 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | CPU & Controllers |
| Warranty | 3-month |
| Weight | 0.4 kg |
| Country of origin | AT |
Shipping & availability
When can X20CP1585 be shipped?
X20CP1585 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20CP1585 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20CP1585.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1585, subject to availability and destination.
• Intel Atom 1.0 GHz processor with an additional I/O processor
• Onboard Ethernet, POWERLINK with poll response chaining and USB
• 1 slot for modular interface expansion
• CompactFlash as removable application memory
• 256 MB DDR2-SDRAM
• Fanless
The X20CP1585 controller is based on an Atom processor clocked at 1 GHz and equipped with 256 MB DDR2 SDRAM.
USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).
The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
Accessories
Required accessories (order separately)
| 0CFCRD.8192E.02 | CompactFlash cards — CompactFlash 8 GB extended temp. |
| 0CFCRD.4096E.02 | CompactFlash cards — CompactFlash 4096 MB extended temp. |
| 0CFCRD.2048E.02 | CompactFlash cards — CompactFlash 2048 MB extended temp. |
| 0CFCRD.1024E.02 | CompactFlash cards — CompactFlash 1024 MB extended temp. |
| 0CFCRD.0512E.02 | CompactFlash cards — CompactFlash 512 MB extended temp. |
| 0CFCRD.016GE.02 | CompactFlash cards — CompactFlash 16 GB extended temp. |
Optional accessories (4)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| X20AC0SR1 | Locking plates — X20 end cover plate, right |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
Specifications
Short description
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link |
| System module | Controller |
General information
| Diagnostics – Battery | Yes, using LED status indicator and software |
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – CompactFlash | Yes, using LED status indicator |
| Diagnostics – Ethernet | Yes, using LED status indicator |
| Diagnostics – POWERLINK | Yes, using LED status indicator |
| Diagnostics – Temperature | Yes, using software register |
| Support – Controller redundancy | No |
| Support – Storage health data support | Yes |
| Support – ACOPOS support | Yes |
| Support – Visual Components support | Yes |
| Power consumption " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual."> – Internal I/O | 0.6 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0xC3AE |
| Cooling | Fanless |
| Status indicators | CPU function, Ethernet, POWERLINK, CompactFlash, battery |
| Power consumption without interface module and USB | 8.8 W |
| Power consumption for X2X Link power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual."> | 1.42 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
CPU and X2X Link power supply
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 1.5 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
X2X Link power supply output
| Nominal output power | 7 W " data-placement="top" data-html="true" data-container="body" data-content="When operated at temperatures above 55°C, a derating of the nominal output power to 5 W for the X2X Link power supply must be taken into account."> |
| Parallel connection | Yes " data-placement="top" data-html="true" data-container="body" data-content="In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time."> |
| Redundant operation | Yes |
Input I/O power supply
| Input voltage | 24 VDC -15% / +20% |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
Output I/O power supply
| Nominal output voltage | 24 VDC |
| Permissible contact load | 10 A |
Power supply - General information
| Diagnostics – RS232 data transfer | Yes, using LED status indicator |
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Overload | Yes, using LED status indicator and software |
| Electrical isolation – I/O supply - I/O power supply | No |
| Electrical isolation – CPU/X2X Link supply - CPU/X2X Link power supply | Yes |
| Status indicators | Overload, operating status, module status, RS232 data transfer |
Controller
| Processor – Data code | 24 kB |
| Processor – Program code | 32 kB |
| Processor – Type | Atom E640T |
| Processor – Clock frequency | 1 GHz |
| Processor – L2 cache | 512 kB |
| Data buffering – Battery monitoring | Yes |
| Data buffering – Lithium battery | Min. 2 years at 23°C ambient temperature |
| Standard memory – RAM | 256 MB DDR2 SDRAM |
| Standard memory – User RAM | 1 MB SRAM " data-placement="top" data-html="true" data-container="body" data-content="1 MB SRAM minus the configured remanent variables."> |
| CompactFlash slot | 1 |
| Real-time clock | Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C |
| Floating point unit (FPU) | Yes |
| Integrated I/O processor | Processes I/O data points in the background |
| Modular interface slots | 1 |
| Remanent variables | Max. 256 kB " data-placement="top" data-html="true" data-container="body" data-content="The memory size for remanent variables is configurable in Automation Studio."> |
| Shortest task class cycle time | 200 µs |
| Typical instruction cycle time | 0.0044 µs |
Interfaces
| Interface IF1 – Signal | RS232 |
| Interface IF1 – Variant | Connection via 12-pin terminal block X20TB12 |
| Interface IF1 – Max. distance | 900 m |
| Interface IF1 – Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 – Physical layer | 10BASE-T/100BASE-TX/1000BASE-T |
| Interface IF2 – Half-duplex | Yes |
| Interface IF2 – Full-duplex | Yes |
| Interface IF2 – Autonegotiation | Yes |
| Interface IF2 – Auto-MDI/MDIX | Yes |
| Interface IF2 – Signal | Ethernet |
| Interface IF2 – Variant | 1x RJ45 shielded |
| Interface IF2 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF2 – Transfer rate | 10/100/1000 Mbit/s |
| Interface IF3 – Physical layer | 100BASE-TX |
| Interface IF3 – Half-duplex | Yes |
| Interface IF3 – Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Interface IF3 – Autonegotiation | Yes |
| Interface IF3 – Auto-MDI/MDIX | Yes |
| Interface IF3 – Fieldbus | POWERLINK (V1/V2) managing or controlled node |
| Interface IF3 – Type | Type 4 " data-placement="top" data-html="true" data-container="body" data-content="For additional information, see section "Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> |
| Interface IF3 – Variant | 1x RJ45 shielded |
| Interface IF3 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF3 – Transfer rate | 100 Mbit/s |
| Interface IF4 – Type | USB 1.1/2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Max. output current | 0.5 A |
| Interface IF5 – Type | USB 1.1/2.0 |
| Interface IF5 – Variant | Type A |
| Interface IF5 – Max. output current | 0.5 A |
| Interface IF6 – Fieldbus | X2X Link master |
Electrical properties
| Electrical isolation | Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 150 mm |
| Dimensions – Height | 99 mm |
| Dimensions – Depth | 85 mm |
| Note | Order application memory (CompactFlash) separately ; Backup battery included in delivery ; X20 end cover plate (right) included in delivery ; 12-pin X20 terminal block included in delivery ; Interface module slot covers included in delivery |
| Weight | 400 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)CPx58x | PDF · 3 MB · 1.57 (09/20/2022) - EN |
| Redundancy for control systems | PDF · 9 MB · 1.31 (07/03/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 CPU modules X20CP1x8x | ZIP · 7 MB · 1.20 (02/27/2025) |
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
