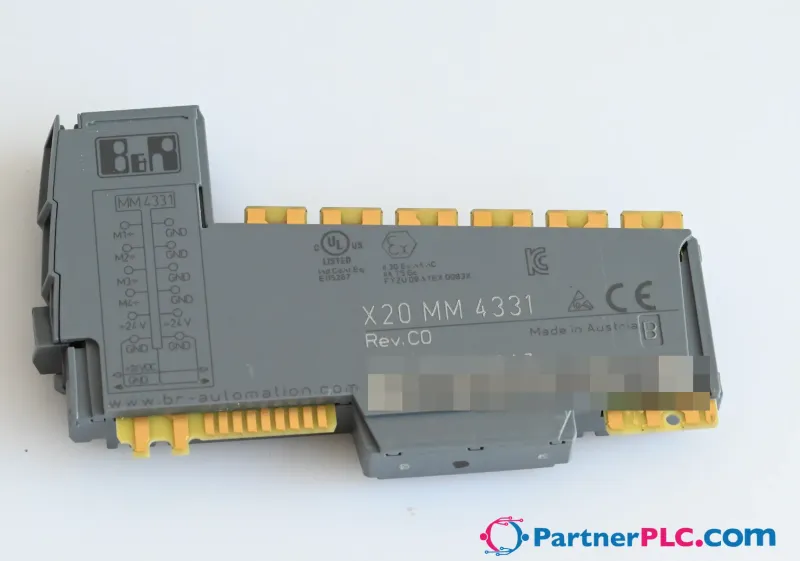

B&R X20MM4331

4 half-bridge outputs High component density 3 A continuous current 5 A peak current Readable current The 4...

MPN: X20MM4331
Category: Analog I/O Modules

€104.94excl. VAT & shipping

In stock — 8 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20MM4331?

4 half-bridge outputs High component density 3 A continuous current 5 A peak current Readable current The 4 outputs on the motor module are designed as half-bridge outputs. The continuous current per channel is 3 A at a peak current of up to 5 A. Integrated diagnostics offer the possibility to read back the output current for each channel using the application. The module offers extensive possibilities for controlling motors, valves or resistive loads and is particularly well suited for controlling brush DC motors. The outputs can be switched on/off and short-circuited.

Specifications

Short description

I/O module

4 half bridge outputs

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Output	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	0.8 W
Power consumption – External I/O	Corresponding to external load
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xA976
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Motor output stage

Current value measurement – Resolution	100 mA
Current value measurement – Data collection	In high side branch
Protective circuit – External	24 VDC power supply - maximum current 10 A (melting fuse)
Quantity	4
Type	Half bridge; High-side driver; Low-side driver
Nominal voltage	24 VDC
Switching voltage	24 VDC (-15% / +20%)
Nominal current	3 A
Maximum current	5 A (250 ms)
Total nominal current	10 A
Output protection	Thermal shutdown in the event of overcurrent or short circuit
Supply voltage	No reverse polarity protection
Insulation voltage between channel and bus	500 V eff

Digital outputs

Recording current value on high branch – Resolution	100 mA
Quantity	4
Nominal voltage	24 VDC
Output protection	Thermal shutdown in the event of overcurrent or short circuit
Type	Half bridge ; High-side driver (source); Low-side driver (sink)
Max. continuous current per output	3 A
Max. module current	10 A

Electrical properties

Electrical isolation

Bus isolated from channel and internal I/O power supply ; Channel not isolated from channel and internal I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 50°C
Temperature – Vertical mounting orientation	Not permitted
Temperature – Derating	See section "Derating".
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (9)
