B&RRefurbished

B&R X20IF2181-2

POWERLINK V2 for real-time Ethernet communication Integrated link selector function (preconfigured)…

MPN: X20IF2181-2
Category: Communication Modules

€715.50excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

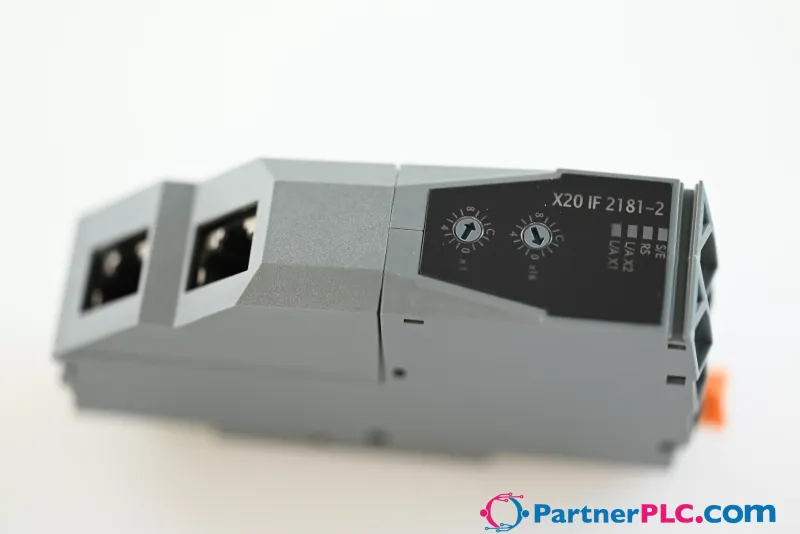

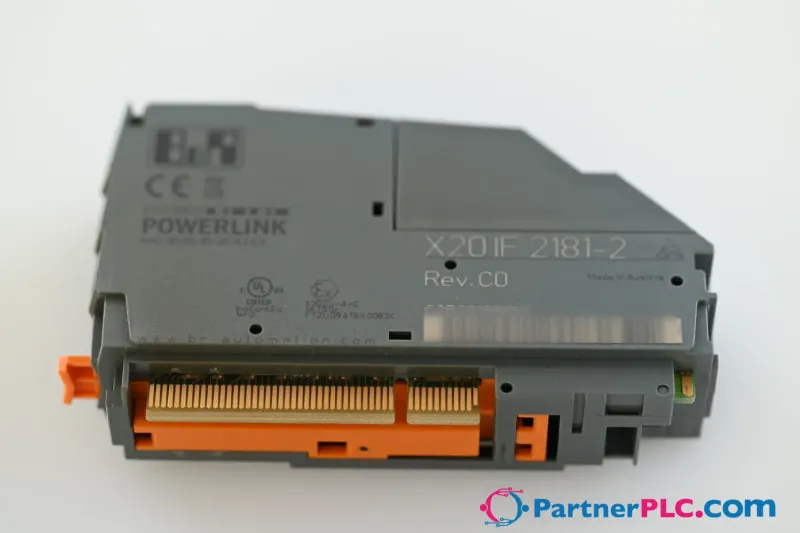

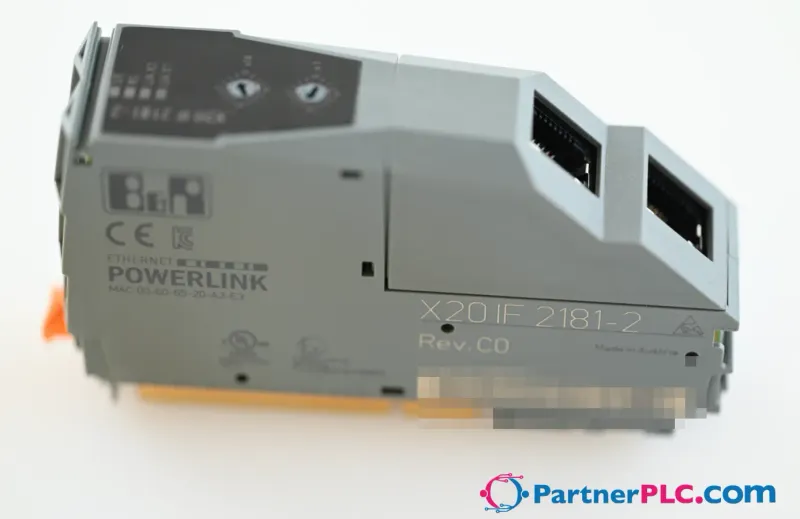

What is the B&R X20IF2181-2?

POWERLINK V2 for real-time Ethernet communication Integrated link selector function (preconfigured) Redundant Managing Node for controller redundancy Integrated hub for efficient cabling (configurable) Configurable ring redundancy Poll response chaining Dynamic Node Allocation (DNA) The interface module is used to expand the X20 CPU for specific applications. It is equipped with an POWERLINK interface. POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG, see www.ethernet-powerlink.org) ensures its openness and continual development. Systems with redundant cabling can be implemented easily using POWERLINK. Unlike ring redundancy, cable redundancy does not require cable looping, which can sometimes be problematic. This allows the creation of all types of tree structures. When using a device with the link selector function, data is always transferred via the highest quality network lines. The link selector function is integrated in the X20IF2181-2 module. Further information: Technology information: Redundancy User's manual: Redundancy for control systems

Specifications

Short description

Communication module

1x POWERLINK managing or controlled node

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xC3B3
Status indicators	Module status, bus function
POWERLINK cable redundancy system	Configurable
Controller redundancy	Configurable
Power consumption	2 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Fieldbus	POWERLINK managing or controlled node
Type	Type 5Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> (note: For additional information, see section)
Variant	2x shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs
Controller	POWERLINK MAC

Electrical properties

Electrical isolation

PLC isolated from POWERLINK (X1 and X2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	In the X20 PLC

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File STEP/DXF X20BC and X20IF ModuleZIP · 1 MB · 2.3 (09/19/2019)
