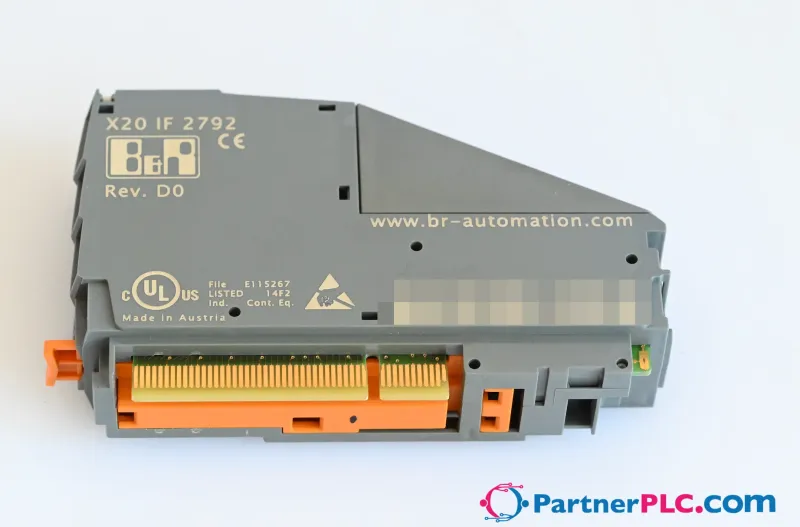

B&R X20IF2792

X2X Link connection CAN bus connection Integrated terminating resistor The interface module can be used to…

MPN: X20IF2792
Category: Communication Modules

€79.50excl. VAT & shipping

In stock — 15 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20IF2792?

X2X Link connection CAN bus connection Integrated terminating resistor The interface module can be used to expand the X20 CPU for specific applications. It is equipped with both an X2X Link interface and a CAN bus interface.

Specifications

Short description

Communication module

1x X2X Link master, 1x CAN bus

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1F26
Status indicators	Module status, data transfer, terminating resistor
Power consumption	1.25 W (rev. <E0: 1.51 W)
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Fieldbus	X2X Link master
Interface IF1 – Variant	4-pin male multipoint connector
Interface IF1 – Number of stations	Max. 253
Interface IF1 – Internal bus power supply	No
Interface IF1 – Network topology	Line
Interface IF1 – Distance between 2 stations	Max. 100 m
Interface IF1 – Bus terminating resistor	Internal
Interface IF2 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF2 – Variant	5-pin male multipoint connector
Interface IF2 – Max. distance	1000 m
Interface IF2 – Transfer rate	Max. 1 Mbit/s
Interface IF2 – Terminating resistor	Integrated in module
Interface IF2 – Controller	SJA 1000

Electrical properties

Electrical isolation

PLC isolated from X2X Link (IF1) and CAN (IF2) and interfaces isolated from each other

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 and 1x terminal block TB2105 separately.
Slot	In the X20 PLC

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB2105.9110	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
0TB2105.9010	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (8)

X20IF2792: frequently asked questions

When can X20IF2792 be shipped?

X20IF2792 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20IF2792 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20IF2792.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20IF2792, subject to availability and destination.
