B&RRefurbished

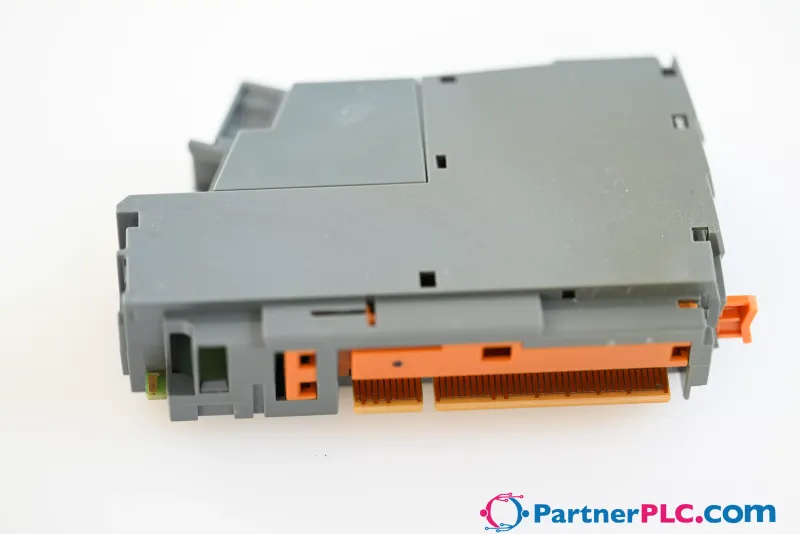

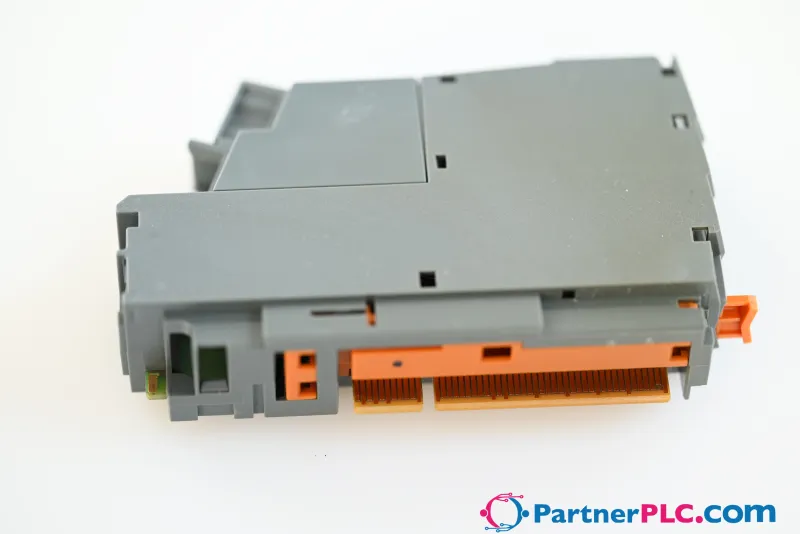

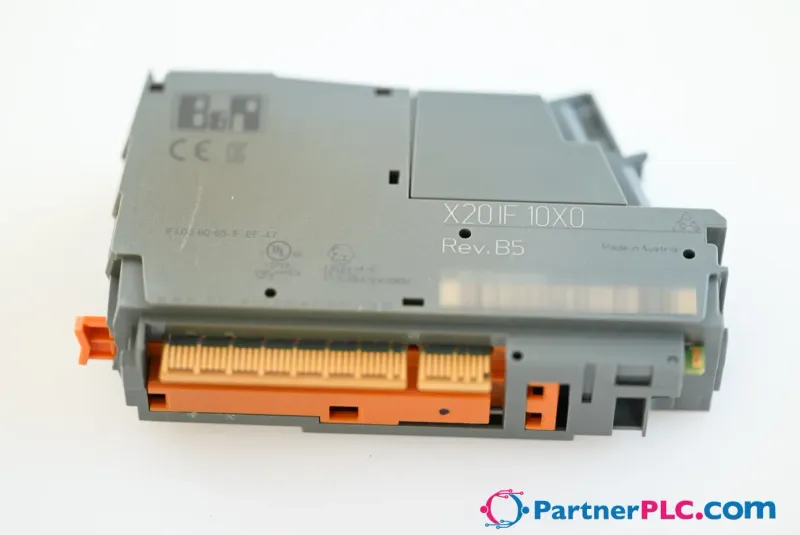

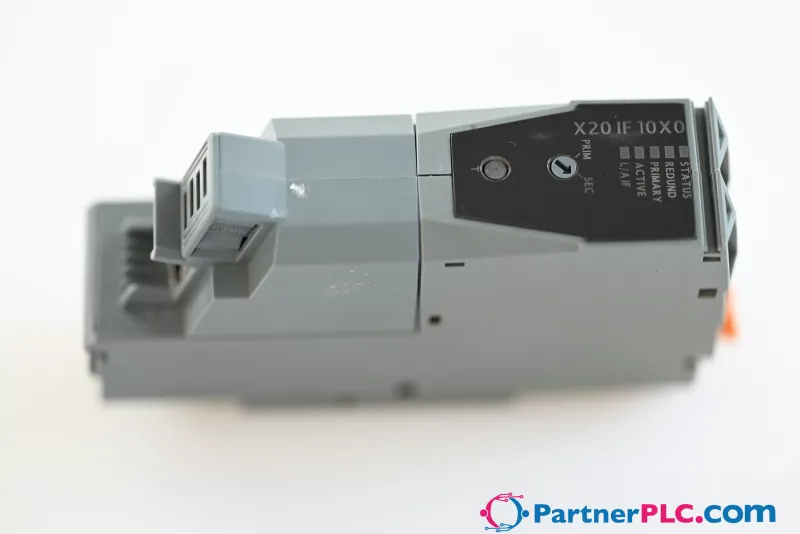

B&R X20IF10X0

CPU-CPU data synchronization module for redundant CPU systems Interface module for the operation of…

MPN: X20IF10X0
Category: Communication Modules

€475.94excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20IF10X0?

CPU-CPU data synchronization module for redundant CPU systems Interface module for the operation of redundant CPUs. Further information: Technology information: Redundancy User's manual: Redundancy for control systems

Specifications

Short description

Communication module

Controller redundancy link module

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Diagnostics – Data transfer	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xC3B4
Status indicators	Module status, bus function
Power consumption	1.93 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	1000BASE-SX
Line length – MMF 50/125 µm	Min.: 2 m, max.: Up to 500 m
Line length – MMF 62.5/125 µm	Min.: 2 m, max.: Up to 300 m
Fieldbus	Redundancy link
Standard (compliance)	IEEE Std 802.3, 2002 edition, clause 38
Variant	1x duplex LC
Transfer rate	1 Gbit/s
Wave length	850 nm
Cable fiber type	Multimode fiber with 62.5/125 µm or 50/125 µm core diameter ; LC connector on both sides

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 85%, non-condensing
Relative humidity – Storage	5 to 85%, non-condensing
Relative humidity – Transport	5 to 85%, non-condensing

Mechanical properties

Slot	Left IF slot of X20CP368x PLC
