B&R
8TB4204.202L-104-pin push-in screw terminal block, two-row, pitch: 10.16 mm, label 2: PE L3 L2 L1, coding L: 1010
Terminal blocks Parts
Compare Terminal blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of pins | Coding | Nominal current | Dimensions – Width | Weight |
|---|---|---|---|---|---|
| 8TB1110.20B-00 | 10 | B | 17 A / 10 A | 35 mm | 9.2 g |
| 8TB1110.20C-00 | 10 | C | 17 A (IEC) / 10 A (UL) | 42 mm | 9.2 g |

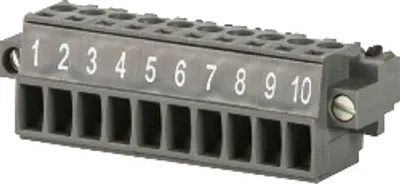

| 8TB1110.20D-00 | 10 | D | 17 A (IEC) / 10 A (UL) | 42 mm | 9.2 g |
| 8TB1110.21C-00 | 10 | C | 14.5 A (IEC) / 10 A (UL) | 42 mm | 10.9 g |
| 8TB1110.21D-00 | 10 | D | 14.5 A (IEC) / 10 A (UL) | 42 mm | 10.9 g |

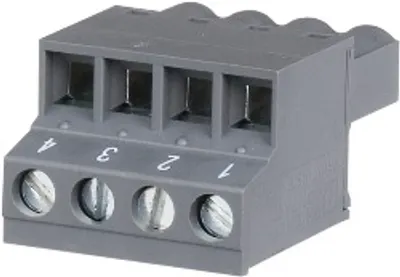

| 8TB2104.2010-00 | 4 | 0 | 12 A (IEC) / 15 A (UL) | 20 mm | 11.5 g |

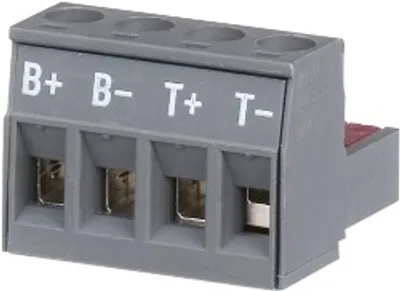

| 8TB2104.203F-00 | 4 | F | 12 A (IEC) / 15 A (UL) | 20.3 mm | 3.6 g |

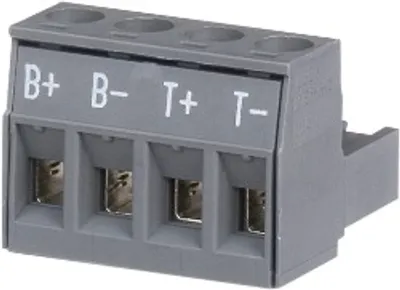

| 8TB2104.203L-00 | 4 | L | 12 A (IEC) / 15 A (UL) | 20.3 mm | 3.6 g |
| 8TB2104.204A-00 | 4 | A | 12 A (IEC) / 15 A (UL) | 20.3 mm | 3.6 g |

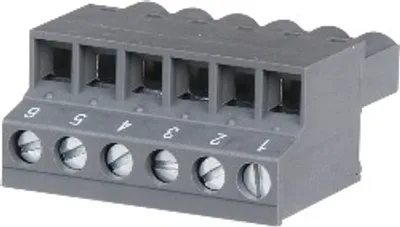

| 8TB2106.2010-00 | 6 | 0 | 12 A (IEC) / 15 A (UL) | 30.5 mm | 18.1 g |

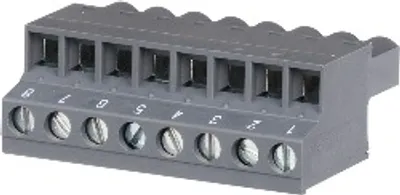

| 8TB2108.2010-00 | 8 | 0 | 12 A (IEC) / 15 A (UL) | 40.6 mm | 23.9 g |

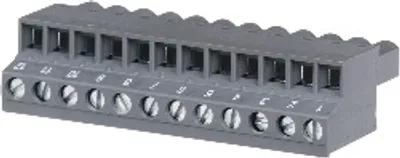

| 8TB2112.2010-00 | 12 | 0 | 12 A (IEC) / 15 A (UL) | 61 mm | 35.2 g |

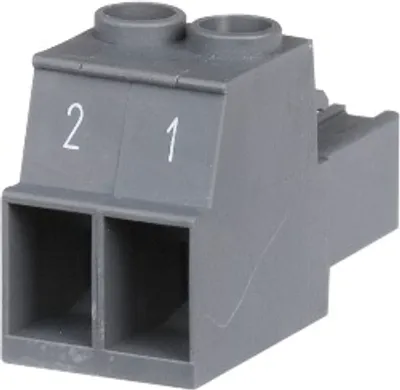

| 8TB3102.201C-11 | 2 | C | 41 A (IEC/UL) | 15.2 mm | 9.4 g |

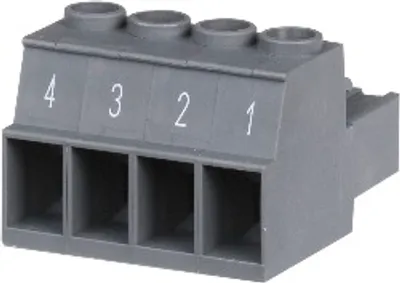

| 8TB3104.201H-11 | 4 | H | 41 A (IEC/UL) | 30.4 mm | 3.3 g |

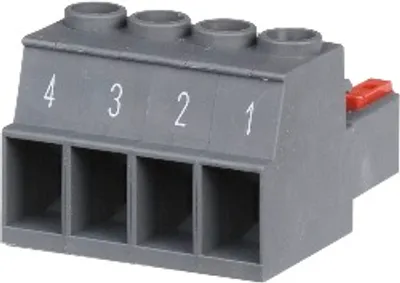

| 8TB3104.201M-11 | 4 | M | 41 A (IEC/UL) | 30.4 mm | 3.3 g |

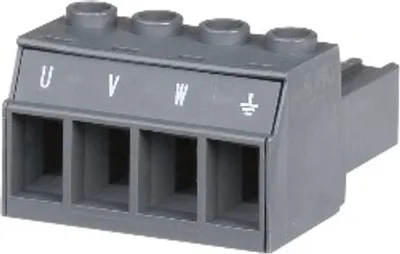

| 8TB3104.204G-11 | 4 | G | 41 A (IEC/UL) | 30.4 mm | 3.3 g |

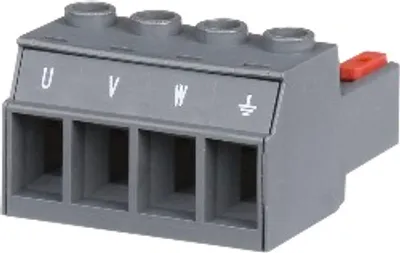

| 8TB3104.204K-11 | 4 | K | 41 A (IEC/UL) | 30.4 mm | 3.3 g |

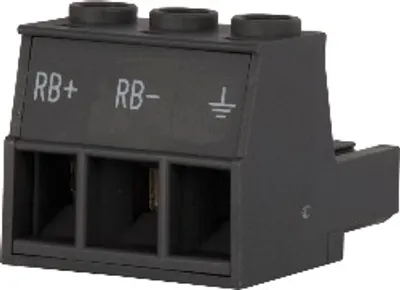

| 8TB4103.202A-00 | 3 | A | 41 A (IEC) / 50 A (UL) | 29.5 mm | 25.2 g |

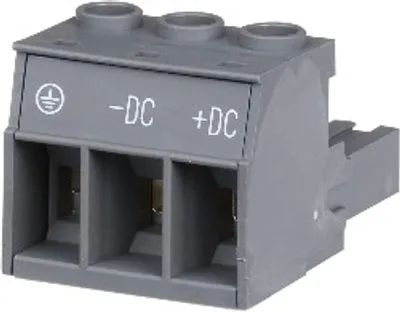

| 8TB4103.203C-10 | 3 | C | 76 A (IEC) / 55 A (UL) | 30.3 mm | 27.1 g |

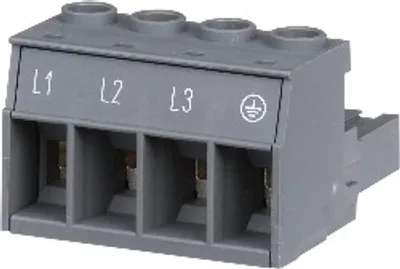

| 8TB4104.202L-10 | 4 | L | 76 A (IEC) / 55 A (UL) | 40.5 mm | 34.9 g |

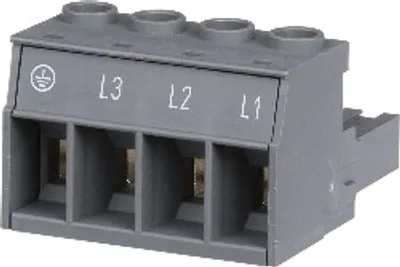

| 8TB4104.202N-10 | 4 | N | 76 A (IEC) / 55 A (UL) | 40.5 mm | 35 g |

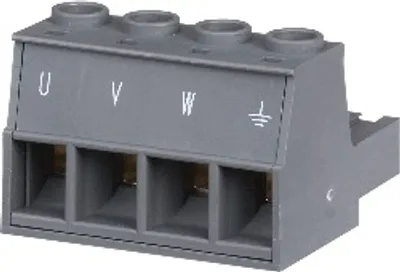

| 8TB4104.204G-00 | 4 | G | 41 A (IEC) / 50 A (UL) | 39.7 mm | 33.2 g |
| 8TB4104.204G-10 | 4 | G | 76 A (IEC) / 55 A (UL) | 40.5 mm | 34.9 g |
Common to all listed parts
| Cable type | Only copper wires (no aluminum wires!) |
