Terminal blocks Parts
B&R
8TB4104.228P-104-pin push-in terminal block, one-row, pitch: 10.16 mm, label 8: GND, OUT, GND, OUT coding G
B&R
8TB4104.208P-104-pin screw clamp terminal block, one-row, pitch: 10.16 mm, label 8: GND, OUT, GND, OUT coding G
B&R
8TB2112.2210-0012-pin push-in terminal block, one-row, pitch: 5.08 mm, label 1: Numbered consecutively
B&R
8TB2106.2210-00Push-in terminal block 6-pin, 1-row, spacing: 5.08 mm, label 1: numbered consecutively
Compare Terminal blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Coding | Nominal current | Dimensions – Width | Dimensions – Depth | Weight |
|---|---|---|---|---|---|
| 8TB4104.206D-10 | D | 76 A (IEC) / 55 A (UL) | 40.5 mm | 41.5 mm | 13.5 g |

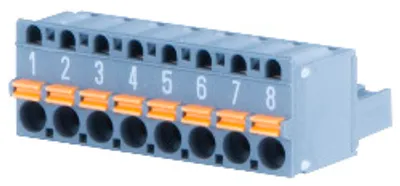

| 8TB2108.2210-00 | 0 | 12 A (IEC) / 10 A (UL) | 41.3 mm | 25.4 mm | 13.1 g |

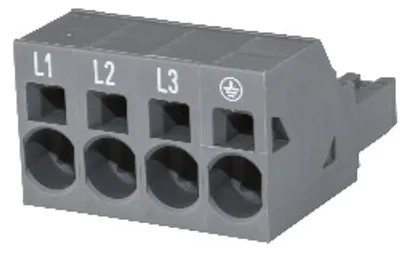

| 8TB4104.222L-10 | L | 76 A (IEC) / 66 A (UL) | 40.6 mm | 25.1 mm | 32 g |
| 8TB2104.223L-00 | L | 12 A (IEC) / 10 A (UL) | 20.1 mm | 15 mm | 65 g |

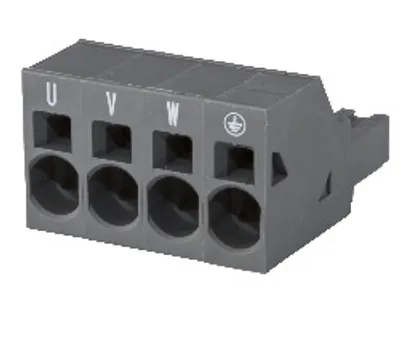

| 8TB4104.224G-10 | G | 76 A (IEC) / 66 A (UL) | 40.6 mm | 25.1 mm | 32 g |

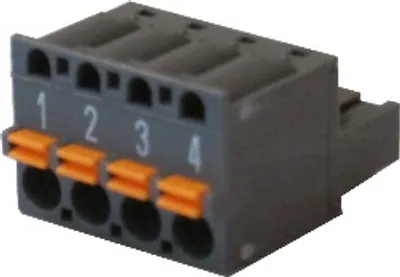

| 8TB2104.2210-00 | 0 | 12 A (IEC) / 10 A (UL) | 26 mm | 25.6 mm | 7 g |

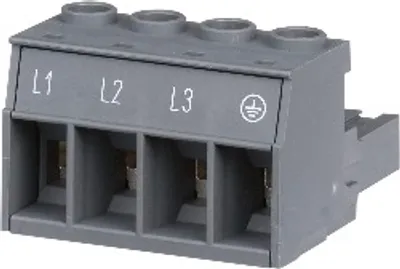

| 8TB3104.206F-10 | F | 41 A (IEC) / 41 A (UL) | 30.4 mm | 35.3 mm | 17 g |
| 8TB3103.202A-10 | A | 41 (IEC/UL) | 22.8 mm | 35.3 mm | 13.7 g |

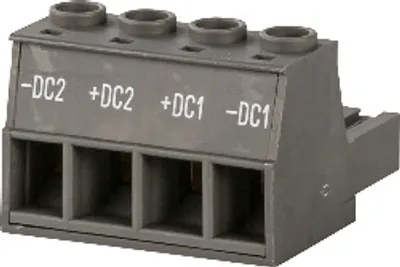

| 8TB3104.203L-10 | L | 41 A (IEC/UL) | 30.4 mm | 35.3 mm | 3.3 g |

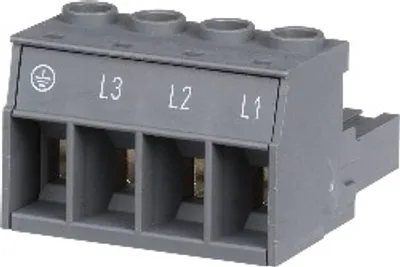

| 8TB4104.202N-00 | N | 41 A (IEC) / 50 A (UL) | 39.7 mm | 39 mm | 33.2 g |
| 8TB4104.203L-00 | L | 41 A (IEC) / 50 A (UL) | 39.7 mm | 39 mm | 33 g |
| 8TB2104.202N-00 | N | 12 A (IEC) / 15 A (UL) | 20.3 mm | 18.2 mm | 3.6 g |
Common to all listed parts
| Cable type | Only copper wires (no aluminum wires!) |
