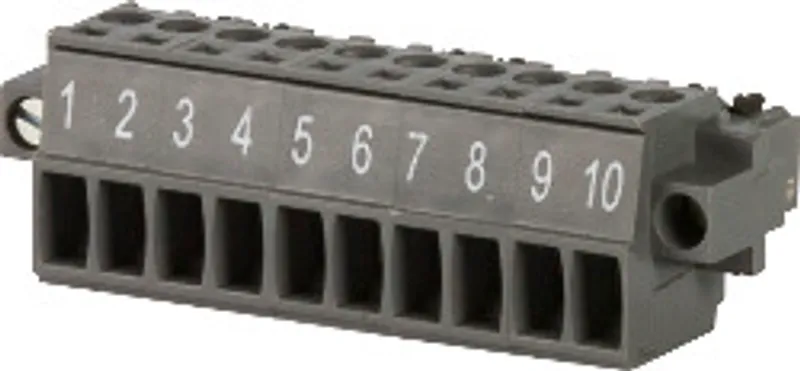

B&R 8TB1110.20C-00

10-pin screw clamp terminal block, 1-row, pitch: 3.5 mm

MPN: 8TB1110.20C-00
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8TB1110.20C-00?

10-pin screw clamp terminal block, 1-row, pitch: 3.5 mm, numbered consecutively, coding C: 1001111001

Specifications

Terminal block

Connection cross section – AWG wire	28 to 14 AWG
Connection cross section – Wire end sleeves with plastic covering	0.2 to 1.5 mm²
Connection cross section – Single-wire	0.2 to 1.5 mm²
Connection cross section – Fine-stranded wires	0.2 to 1.5 mm²
Connection cross section – With wire end sleeve	0.2 to 1.5 mm²
Note	Label 1: Numbered consecutively; Coding C: 1001111001; 1-row
Number of pins	10
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	C
Pitch	3.5 mm
Wire stripping length	6 mm
Tightening torque	0.2 to 0.25 Nm

Electrical properties

Nominal voltage	320 V (IEC) / 300 V (UL)
Nominal current	17 A (IEC) / 10 A (UL)

Mechanical properties

Dimensions – Width	42 mm
Dimensions – Height	13 mm
Dimensions – Depth	18.5 mm
Weight	9.2 g
