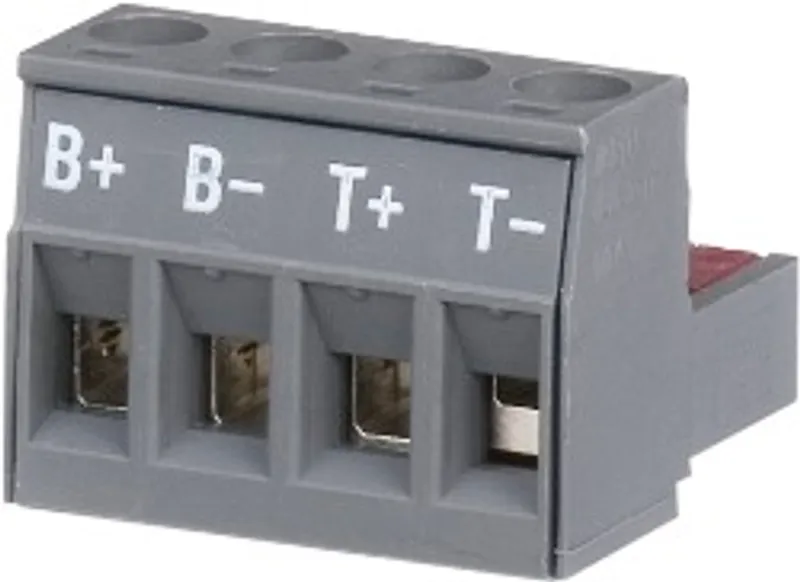

B&R 8TB2104.203F-00

4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm

MPN: 8TB2104.203F-00
Category: Terminal blocks

€15.90excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 8TB2104.203F-00?

4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding F: 0101

Specifications

Terminal block

Connection cross section – AWG wire	30 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 2.5 mm²
Connection cross section – Single-wire	0.2 to 2.5 mm²
Connection cross section – Fine-stranded wires	0.2 to 1.5 mm²
Connection cross section – With wire end sleeve	0.25 to 2.5 mm²
Note	Label 3: T- T+ B- B+; Coding F: 0101; 1-row
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	F
Pitch	5.08 mm
Wire stripping length	10 mm
Tightening torque	0.5 to 0.6 Nm
Tension	>10 N (0.2 mm²); >50 N (2.5 mm²)

Electrical properties

Nominal voltage	250 V (IEC) / 300 V (UL)
Nominal current	12 A (IEC) / 15 A (UL)

Mechanical properties

Dimensions – Width	20.3 mm
Dimensions – Height	15 mm
Dimensions – Depth	18.3 mm
Weight	3.6 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

8TB2104.203F-00: frequently asked questions

When can 8TB2104.203F-00 be shipped?

8TB2104.203F-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8TB2104.203F-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8TB2104.203F-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB2104.203F-00, subject to availability and destination.
