Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V19-G-BK1M-PUR-U/ABG-V19-G | 240787-100002 | max. 80 N / 300 mm | 1 m L | Li 9Y C 11Y 8 x 0,25 | 82 g |
| V1-W-15M-PUR-ABG0 | 293641 | max. 100 N / 300 mm | 15 m L | Li 9Y 11YM 4 x 0.34 | 550 g |
| V1-W-10M-PUR-ABG0 | 293640 | max. 100 N / 300 mm | 10 m L | Li 9Y 11YM 4 x 0.34 | 367 g |
| V1S-G-BK1M-PUR-U | 240771-100000 | max. 80 N / 300 mm | 1 m L | Li 9Y 11Y 4 x 0.34 | 35.53 g |
| V1-G-25M-PUR-ABG | 240004-100001 | max. 100 N / 300 mm | 25 m L | Li 9Y 11YM 4 x 0.34 | 906.67 g |
| V31S-GM-BK5M-PUR-U | 240807-100001 | max. 80 N / 300 mm | 5 m L | Li 9Y 11Y 4 x 0.34 | 116.15 g |
| V1-G-BK15M-PUR-U5/ABG-V1-W | 284761 | max. 80 N / 300 mm | 15 m L | Li 9Y C11Y 4 x 0,50 | 909.04 g |

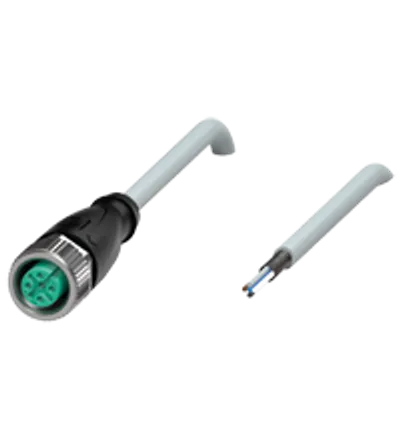

| V15-G-5M-PVC-ABG | 240004-100000 | max. 25 N / 100 mm | 5 m L | Li 9Y YM 5 x 0,34 | 216 g |
| V19-W-BK0,4M-PUR-U/ABG | 240005-100000 | max. 80 N / 300 mm | 0.4 m L | Li 9Y C 11Y 8 x 0,25 | 34.47 g |
| V1-W-10M-PUR-ABG-V1-W | 240789-100000 | max. 100 N / 300 mm | 10 m L | Li 9Y 11YM 4 x 0.34 | 365.46 g |
| V1-W-BK15M-PUR-U5/ABG-V1-W | 284439 | max. 80 N / 300 mm | 15 m L | Li 9Y C11Y 4 x 0,50 | 833.75 g |
| V1-G-BK10M-PUR-U5/ABG-V1-W | 284438 | max. 80 N / 300 mm | 10 m L | Li 9Y C11Y 4 x 0,50 | 550 g |
| V1-W-BK10M-PUR-U5/ABG-V1-W | 284437 | max. 80 N / 300 mm | 10 m L | Li 9Y C11Y 4 x 0,50 | 570 g |
| V1-G-50M-PUR | 239998-100005 | max. 60 N / 500 mm | 50 m L | Li 9Y 11YM 4 x 0.34 | 1505 g |
| V19S-G-10M-PUR-ABG | 283391 | max. 100 N / 300 mm | 10 m L | Li 9Y V1 C V1 11Y 8 x 0,25 | 533 g |
| V31-GM-3M-PUR-ABG-V31-GM | 240822-100006 | max. 100 N / 300 mm | 3 m L | Li 9Y 11YM 4 x 0.34 | 119 g |
| V31-GM-2,2M-PUR-ABG-V31-GM | 240822-100005 | max. 100 N / 300 mm | 2.2 m L | Li 9Y 11YM 4 x 0.34 | 90.8 g |
| V31-GM-2M-PUR-ABG-V31-GM | 240822-100004 | max. 100 N / 300 mm | 2 m L | Li 9Y 11YM 4 x 0.34 | 83.6 g |
| V31-GM-1,6M-PUR-ABG-V31-GM | 240822-100003 | max. 100 N / 300 mm | 1.6 m L | Li 9Y 11YM 4 x 0.34 | 69.3 g |
| V31-GM-1,2M-PUR-ABG-V31-GM | 240822-100002 | max. 100 N / 300 mm | 1.2 m L | Li 9Y 11YM 4 x 0.34 | 56.02 g |
| V31-GM-0,8M-PUR-ABG-V31-GM | 240822-100001 | max. 100 N / 300 mm | 0.8 m L | Li 9Y 11YM 4 x 0.34 | 42.26 g |
| V31-GM-0,4M-PUR-ABG-V31-GM | 240822-100000 | max. 100 N / 300 mm | 0.4 m L | Li 9Y 11YM 4 x 0.34 | 30.71 g |

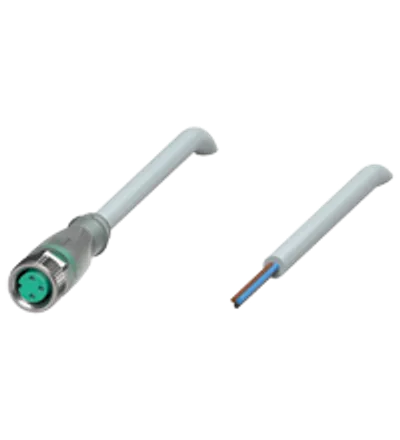

| V3-GM-E2-20M-PUR | 240801-100000 | max. 80 N / 500 mm | 20 m L | Li 9Y 11Y 3 x 0,25 | 425 g |
| V1-W-E8W-BK10M-PUR-A-V1-G | 240784-100001 | max. 80 N / 300 mm | 10 m L | Li F 9Y 11Y 4 x 0,34 | 288.57 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |
| Plug connector: Loosening protection | integrated |
| Plug connector: Mating cycles | min. 100 |
