Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|

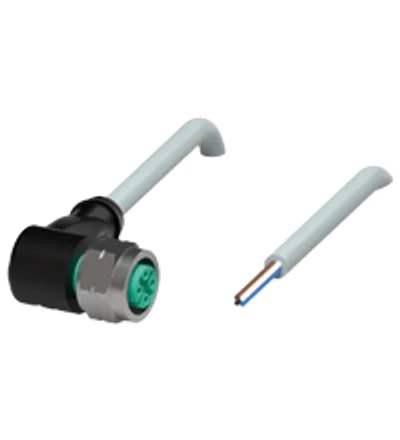

| V1-WV4A-25M-PVC | 240768-100000 | max. 80 N / 300 mm | 25 m L | Li Y YM 4 x 0,34 | 881.25 g |
| V1-W-0,3M-PUR-V1-G | 240776-100006 | max. 60 N / 500 mm | 0.3 m L | Li 9Y 11YM 4 x 0.34 | 29.58 g |
| V15-G-20M-PVC-ABG | 240004-100004 | max. 25 N / 100 mm | 20 m L | Li 9Y YM 5 x 0,34 | 764.4 g |
| V1-G-BK0,75M-PUR-U-V1-G-Y285728 | 285728 | max. 80 N / 300 mm | 0.75 m L | Li 9Y 11Y 4 x 0.34 | 42.5 g |
| V1S-G-BK0,75M-PUR-U-V1S-G-Y285720 | 285720 | max. 80 N / 300 mm | 0.75 m L | Li 9Y 11Y 4 x 0.34 | 38.91 g |
| V19-WV4A-3M-PUR-ABG0 | 295573 | max. 80 N / 300 mm | 3 m L | Li 9Y C 11Y 8 x 0,25 | 169.75 g |
| V3-GM-BK1,3M-PUR-U | 240799-100003 | max. 80 N / 300 mm | 1.3 m L | Li F 9Y 11Y 3 x 0,34 | 34.98 g |
| V3-GM-BK4M-PUR-U-V3-GM | 240813-100004 | max. 80 N / 300 mm | 4 m L | Li F 9Y 11Y 3 x 0,34 | 107 g |
| V3-GM-BK1,2M-PUR-U-V3-GM | 240813-100002 | max. 80 N / 300 mm | 1.2 m L | Li F 9Y 11Y 3 x 0,34 | 38.96 g |
| V3-GM-BK0,8M-PUR-U-V3-GM | 240813-100001 | max. 80 N / 300 mm | 0.8 m L | Li F 9Y 11Y 3 x 0,34 | 30 g |
| V1-W-25M-PUR-ABG | 240005-100003 | max. 100 N / 300 mm | 25 m L | Li 9Y 11YM 4 x 0.34 | 890.5 g |
| V31S-GM-BK3M-PUR-U | 240807-100006 | max. 80 N / 300 mm | 3 m L | Li 9Y 11Y 4 x 0.34 | 83.08 g |

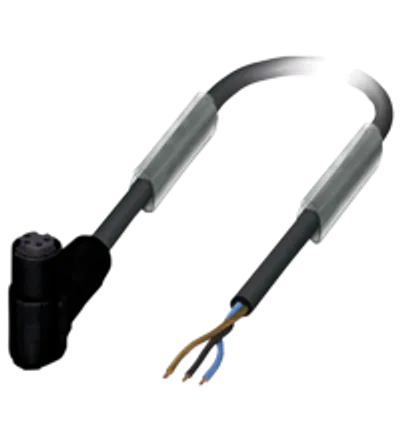

| V3-WR-1M-PUR | 194463 | — | 1 m L | Li 9Y 11Y 3 x 0,25 | — |
| V1-W-8M-PVC | 239999-100011 | max. 80 N / 300 mm | 8 m L | Li Y YM 4 x 0,34 | 284 g |
| V1-W-BK1M-PUR-A | 239999-100010 | max. 80 N / 300 mm | 1 m L | Li F 9Y 11Y 4 x 0,34 | 40.67 g |
| V15-W-50M-PUR-ABG | 240005-100002 | max. 100 N / 300 mm | 50 m L | Li 9Y 11YM 5 x 0.34 | 1824.05 g |
| V15-W-50M-PUR | 239999-100009 | max. 60 N / 500 mm | 50 m L | Li 9Y 11YM 5 x 0.34 | 1600.65 g |
| V31-WM-BK15M-PUR-U | 240800-100007 | max. 80 N / 300 mm | 15 m L | Li 9Y 11Y 4 x 0.34 | 399.33 g |

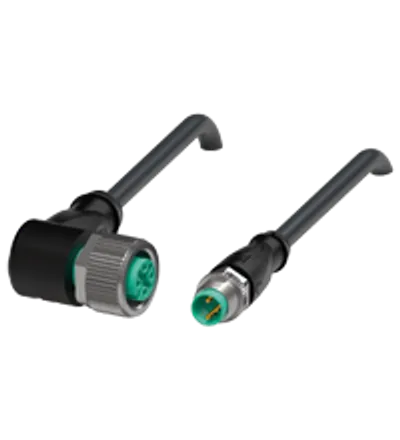

| V11-W-BK1M-PUR-R1-V3-GM | 295369 | max. 50 N / 300 mm | 1 m L | Li 9Y 11YM 4 x 0.34 | 42.65 g |
| V11-W-BK2M-PUR-R1-V3-GM | 295370 | max. 50 N / 300 mm | 2 m L | Li 9Y 11YM 4 x 0.34 | 65.92 g |
| V3-GM-BK2M-PUR-R1-V3-GM | 295367 | max. 50 N / 300 mm | 2 m L | Li 9Y 11YM 4 x 0.34 | 60.07 g |
| V3-GM-BK1,5M-PUR-R1-V3-GM | 295366 | max. 50 N / 300 mm | 1.5 m L | Li 9Y 11YM 4 x 0.34 | 49.6 g |
| V3-GM-BK1M-PUR-R1-V3-GM | 295365 | max. 50 N / 300 mm | 1 m L | Li 9Y 11YM 4 x 0.34 | 36.09 g |
| V3-GM-BK0,6M-PUR-R1-V3-GM | 295364 | max. 50 N / 300 mm | 0.6 m L | Li 9Y 11YM 4 x 0.34 | 25.54 g |
Common to all listed parts
| Connector 1: Coding | A-coded |
| Degree of protection | EN 60529 |
| Pollution degree | 3 |
| Plug connector: Body | TPU, black |
| Plug connector: Flammability | V-2 |
| Cable: Cores | bare copper (Cu) |
