Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|
| V1-G-E2-BK3M-PUR-U-V1-G | 240779-0002 | max. 80 N / 300 mm | 3 m L | Li F 9Y 11Y 3 x 0,34 | 88.29 g |
| V1-G-E2-BK1,5M-PUR-U-V1-G | 240779-0001 | max. 80 N / 300 mm | 1.5 m L | Li F 9Y 11Y 3 x 0,34 | 58.5 g |
| V11-W-20M-PVC | 239999-0022 | max. 80 N / 300 mm | 20 m L | Li Y YM 3 x 0,34 | 621.2 g |

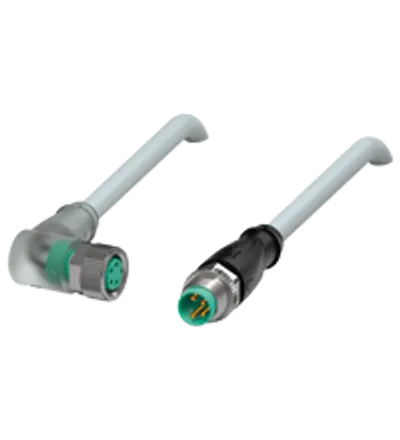

| V31-WM-A2-2M-PUR-V31-GM | 240819-0003 | max. 60 N / 500 mm | 2 m L | Li 9Y 11Y 4 x 0,25 | 56.06 g |
| V31-GM-BK1,5M-PUR-U-V31-GM | 240813-0005 | max. 80 N / 300 mm | 1.5 m L | Li 9Y 11Y 4 x 0.34 | 47.1 g |
| V31-GM-BK0,6M-PUR-U-V31-GM | 240813-0004 | max. 80 N / 300 mm | 0.6 m L | Li 9Y 11Y 4 x 0.34 | 22.95 g |
| V31-GM-20M-PUR-ABG | 240803-0006 | max. 100 N / 300 mm | 20 m L | Li 9Y 11YM 4 x 0.34 | 686 g |
| V15-WV4A-10M-PVC | 240768-0007 | max. 80 N / 300 mm | 10 m L | Li Y YM 5 x 0,34 | 388 g |
| V15-GV4A-10M-PVC | 240006-0004 | max. 80 N / 300 mm | 10 m L | Li Y YM 5 x 0,34 | 389.2 g |
| V15-W-2M-PVC-ABG | 253356 | max. 25 N / 100 mm | 2 m L | Li 9Y YM 5 x 0,34 | 90.2 g |
| V3-WM-E2-1,5M-PUR-V3-GM | 240819-0002 | max. 80 N / 500 mm | 1.5 m L | Li 9Y 11Y 3 x 0,25 | 41.7 g |
| V1-W-2M-PVC-ABG | 240005-0004 | max. 25 N / 100 mm | 2 m L | Li 9Y YM 4 x 0,34 | 86.86 g |
| V3-WM-BK0,6M-PUR-U-V3-GM | 240815-0002 | max. 80 N / 300 mm | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 26 g |
| V1-W-BK1M-PVC-U-V1-G | 240776-0015 | max. 50 N / 300 mm | 1 m L | Li YY 4 x 0,34 | 50 g |
| V11-G-BK1M-PUR-U-V11-G | 240775-0016 | max. 80 N / 300 mm | 1 m L | Li F 9Y 11Y 3 x 0,34 | 44.68 g |
| V1-G-BK1M-PVC-U-V1-G | 240775-0015 | max. 50 N / 300 mm | 1 m L | Li YY 4 x 0,34 | 50.27 g |
| V1-G-BK0,6M-PVC-U-V1-G | 240775-0014 | max. 50 N / 300 mm | 0.6 m L | Li YY 4 x 0,34 | 43 g |
| V31-GM-5M-PUR-ABG | 240803-0005 | max. 100 N / 300 mm | 5 m L | Li 9Y 11YM 4 x 0.34 | 179.95 g |

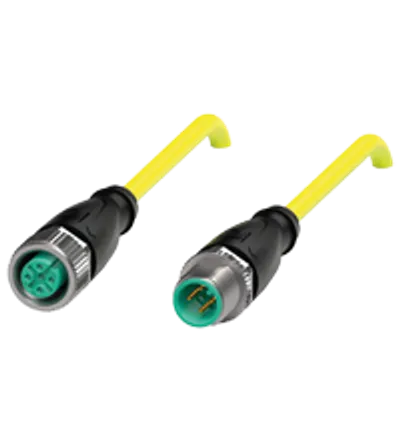

| V1-G-YE2M-PUR-U-V1-G | 240775-0013 | max. 50 N / 300 mm | 2 m L | Li F 9Y 11Y 4 x 0,34 | 72.35 g |
| V1-W-YE5M-PVC-U-V1-G | 240776-0013 | max. 50 N / 300 mm | 5 m L | Li YY 4 x 0,34 | 168 g |
| V1-W-BK2M-PVC-U-V1-G | 240776-0011 | max. 50 N / 300 mm | 2 m L | Li YY 4 x 0,34 | 80 g |
| V15-W-2M-PUR-ABG | 240005-0003 | max. 100 N / 300 mm | 2 m L | Li 9Y 11YM 5 x 0.34 | 82.35 g |
| V1-G-BK0,5M-PVC-U | 239998-0022 | max. 50 N / 300 mm | 0.5 m L | Li YY 4 x 0,34 | 24.88 g |
| V15S-W-BK5M-PUR-U/0,75 | 240772-0001 | max. 50 N / 300 mm | 5 m L | Li F 9Y 11Y 5 x 0,75 | 305 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |
| Plug connector: Loosening protection | integrated |
