Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Sheath diameter | Length | Mass |
|---|---|---|---|---|---|

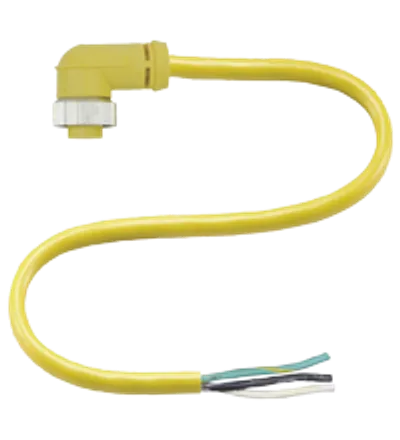

| V93-W-YE10M-STOOW | 912586 | max. 600 V UB | ∅ 9.9 mm | 10 m L | 1355 g |
| V93-W-YE4M-STOOW | 912585 | max. 600 V UB | ∅ 9.9 mm | 4 m L | 600 g |
| V93-W-YE2M-STOOW | 912584 | max. 600 V UB | ∅ 9.9 mm | 2 m L | 295.3 g |
| V94-W-YE4M-STOOW | 912590 | max. 600 V UB | ∅ 10.7 mm | 4 m L | 684.5 g |

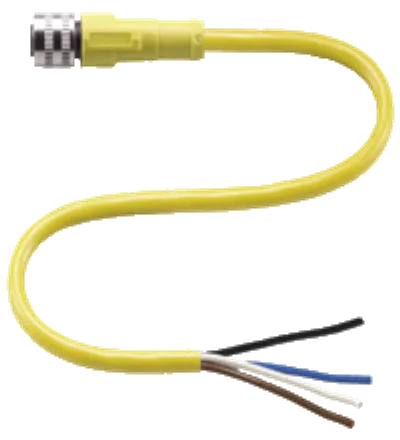

| V1-G-YE10M-PUR | 911709 | max. 300 V DC UB | ∅ 5.2 mm | 10 m L | 411 g |
| V1-G-YE5M-PUR | 908981 | max. 300 V DC UB | ∅ 5.2 mm | 5 m L | 214 g |
| V95-G-YE4M-STOOW | 912592 | max. 600 V UB | ∅ 12.9 mm | 4 m L | 960 g |
| V95-G-YE2M-STOOW | 912591 | max. 600 V UB | ∅ 12.9 mm | 2 m L | 504 g |

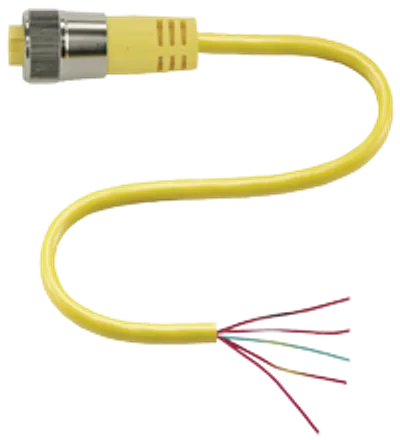

| V95-G-YE5M-PVC-22 | 913067 | max. 300 V UB | ∅ 5.7 mm | 5 m L | 301 g |
| V95-G-YE3M-PVC-22 | 912314 | max. 300 V UB | ∅ 5.7 mm | 3 m L | 209 g |
| V95-G-YE10M-PVC-22 | 913068 | max. 300 V UB | ∅ 5.7 mm | 10 m L | 546 g |
| V95-G-YE2M-PVC-22 | 910360 | max. 300 V UB | ∅ 5.7 mm | 2 m L | 153 g |

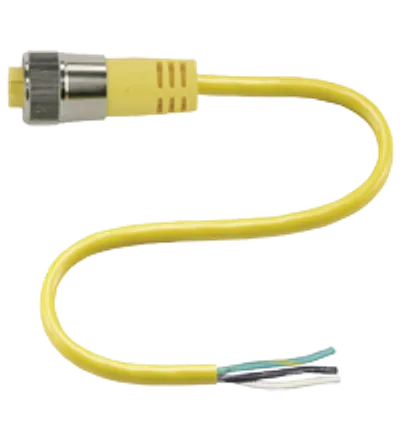

| V93-G-YE6M-STOOW | 912582 | max. 600 V UB | ∅ 9.9 mm | 6 m L | 877.8 g |
| V93-G-YE4M-STOOW | 912581 | max. 600 V UB | ∅ 9.9 mm | 4 m L | 593 g |
| V93-G-YE10M-STOOW | 912583 | max. 600 V UB | ∅ 9.9 mm | 10 m L | 1379 g |
| V95-G-YE6M-STOOW | 912593 | max. 600 V UB | ∅ 12.9 mm | 6 m L | 1446 g |
| V3-WR-10M-PUR | 229047 | max. 48 V AC / 60 V DC UB | 4.3 mm | 10 m L | 187.5 g |
| V3S-GM-0,15M-PUR-ABG-SUBD | 228636 | max. 48 V AC / 60 V DC UB | 4.8 mm | 0.15 m L | 67 g |
| V1-W-BK5M-PVC-U | 225770 | max. 250 V AC/DC UB | 4.3 mm | 5 m L | 157.6 g |
| V1-W-BK2M-PUR-U | 241085 | max. 250 V AC/DC UB | 4.3 mm | 2 m L | 58.41 g |
| V94-G-YE4M-STOOW | 912588 | max. 600 V UB | ∅ 10.7 mm | 4 m L | 707 g |
| V93-G-YE2M-STOOW | 912580 | max. 600 V UB | ∅ 9.9 mm | 2 m L | 317.2 g |
| V1-G-E2-BK10M-PUR-U-V1-G | 240779-0004 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 10 m L | 188 g |
| V1-G-E2-BK5M-PUR-U-V1-G | 240779-0003 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 5 m L | 139.18 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
