Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Sheath diameter | Length | Mass |
|---|---|---|---|---|---|
| FB9271-300 | 70139505 | — | — | — | — |
| V31-GM-BK0,65M-PUR-U | 70140753 | max. 30 V AC/DC UB | 4.3 mm | 0.65 m L | 21.21 g |

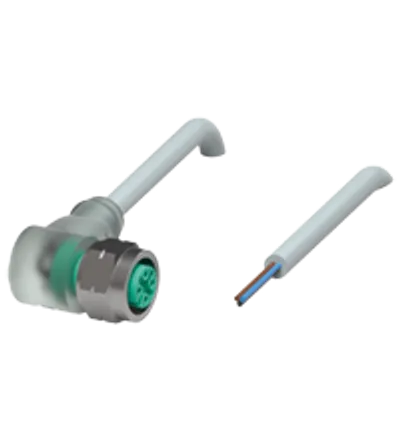

| V1-WV4A-E2-10M-PUR | 70123968 | max. 24 V DC -20 % / +25 % UB | 4.8 mm | 10 m L | 278.67 g |
| V31-GR-BK1M-PUR-U-V31-GR | 70127484-100001 | max. 30 V AC/DC UB | 4.3 mm | 1 m L | 30.42 g |
| V1-G-BK10M-PUR-O1-V1-G | 240775-100113 | max. 250 V AC/DC UB | 4.8 mm | 10 m L | 374.5 g |
| V19-G-BK50M-PUR-U/ABG-V19-G | 240787-100022 | max. 30 V AC/DC UB | 6 mm | 50 m L | 2321 g |
| V1-W-S-BK8M-PUR-A-V1-G | 70138157 | max. 250 V AC/DC UB | 4.3 mm | 8 m L | 228.4 g |
| V125-W-YE2M-PVC | 910408 | max. 125 V AC/DC UB | ∅ 5.9 mm | 2 m L | 121 g |
| V125-W-YE5M-PVC | 908917 | max. 125 V AC/DC UB | ∅ 5.9 mm | 5 m L | 274 g |
| V12-G-YE20M-PVC-18 | 910906 | max. 300 V DC UB | ∅5.9 mm | 20 m L | 1139.6 g |
| V12-G-YE5M-PVC-18 | 910903 | max. 300 V DC UB | ∅5.9 mm | 5 m L | 306 g |
| V12-G-YE20M-PVC | 913331 | max. 300 V DC UB | ∅5.2 mm | 20 m L | 774 g |
| V12-G-YE5M-PVC | 908951 | max. 300 V DC UB | ∅5.2 mm | 5 m L | 210.2 g |
| V12-G-YE2M-PVC | 908949 | max. 300 V DC UB | ∅5.2 mm | 2 m L | 94.6 g |
| V31-GM-BK5M-PUR-U-V3-GM | 230062 | max. 30 V AC/DC UB | 4.3 mm | 5 m L | 131.38 g |
| V31-GM-BK2M-PUR-U-V3-GM | 230061 | max. 30 V AC/DC UB | 4.3 mm | 2 m L | 58.5 g |
| V3-GM-BK5M-PUR-U-V3-GM | 230060 | max. 48 V AC / 60 V DC UB | 4.3 mm | 5 m L | 131.36 g |
| V3-GM-BK3M-PUR-U-V3-GM | 230059 | max. 48 V AC / 60 V DC UB | 4.3 mm | 3 m L | 83.08 g |
| V3-GM-BK1,5M-PUR-U-V3-GM | 224379 | max. 48 V AC / 60 V DC UB | 4.3 mm | 1.5 m L | 49.15 g |
| V3-GM-BK1M-PUR-U-V3-GM | 224649 | max. 48 V AC / 60 V DC UB | 4.3 mm | 1 m L | 32.93 g |
| V3-GM-BK0,6M-PUR-U-V3-GM | 224378 | max. 48 V AC / 60 V DC UB | 4.3 mm | 0.6 m L | 24.42 g |
| V3-GM-BK0,3M-PUR-U-V3-GM | 224377 | max. 48 V AC / 60 V DC UB | 4.3 mm | 0.3 m L | 16.77 g |
| V11-G-BK5M-PUR-U-V3-GM | 456713 | max. 48 V AC / 60 V DC UB | 4.3 mm | 5 m L | 136.16 g |
| V11-G-BK3M-PUR-U-V3-GM | 456712 | max. 48 V AC / 60 V DC UB | 4.3 mm | 3 m L | 94.17 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
