Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath diameter | Length | Mass | Plug connector: Body |
|---|---|---|---|---|---|
| V311-GR-BK1M-PUR-U-V311-GR | 70127484-100000 | 4.8 mm | 1 m L | 42 g | PUR, black |
| V311-GM-BK1M-PUR-U-V311-GM | 70124952-100001 | 4.8 mm | 1 m L | 43.83 g | TPU, black |

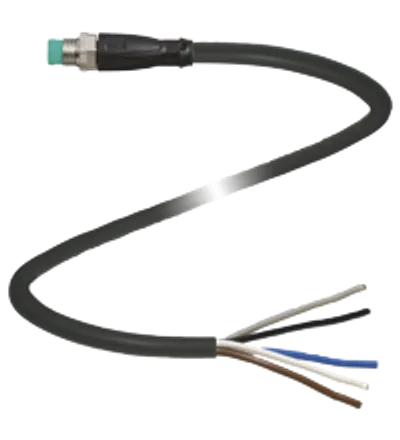

| V311S-GM-BK3M-PUR-U | 70124952-100006 | 4.8 mm | 3 m L | — | TPU, black |
| V311S-GM-BK1M-PUR-U | 70124952-100005 | 4.8 mm | 1 m L | 38.85 g | TPU, black |
| V311-GM-BK3M-PUR-U | 70124952-100004 | 4.8 mm | 3 m L | 99.38 g | TPU, black |
| V311-GM-BK1M-PUR-U | 70124952-100003 | 4.8 mm | 1 m L | 38.79 g | TPU, black |

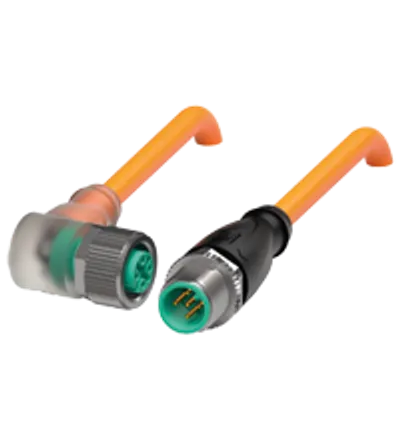

| V15-W-E8-OR10M-PUR-A1-V15-G | 70137220-100020 | 5.3 mm | 10 m L | — | TPU, transparent/black |
| V15-W-E8-OR5M-PUR-A1-V15-G | 70137220-100019 | 5.3 mm | 5 m L | 206.84 g | TPU, transparent/black |
| V1-W-E8-OR25M-PUR-A1-V1-G | 70137220-100012 | 4.9 mm | 25 m L | 1300 g | TPU, transparent/black |
| V1-W-E8-OR10M-PUR-A1-V1-G | 70137220-100007 | 4.9 mm | 10 m L | 331.5 g | TPU, transparent/black |
| V1-W-E8-OR7,5M-PUR-A1-V1-G | 70137220-100005 | 4.9 mm | 7.5 m L | 254.4 g | TPU, transparent/black |
| V1-W-E8-OR5M-PUR-A1-V1-G | 70137220-100010 | 4.9 mm | 5 m L | 165.4 g | TPU, transparent/black |
| V1-W-E8-OR4M-PUR-A1-V1-G | 70137220-100009 | 4.9 mm | 4 m L | 149.2 g | TPU, transparent/black |
| V1-W-E8-OR2M-PUR-A1-V1-G | 70137220-100004 | 4.9 mm | 2 m L | 77.13 g | TPU, transparent/black |
| V1-W-E8-OR1,5M-PUR-A1-V1-G | 70137220-100008 | 4.9 mm | 1.5 m L | 66.6 g | TPU, transparent/black |
| V1-W-E8-OR1M-PUR-A1-V1-G | 70137220-100003 | 4.9 mm | 1 m L | 54.84 g | TPU, transparent/black |
| V1-W-E8-OR0,6M-PUR-A1-V1-G | 70137220-100001 | 4.9 mm | 0.6 m L | 43.8 g | TPU, transparent/black |

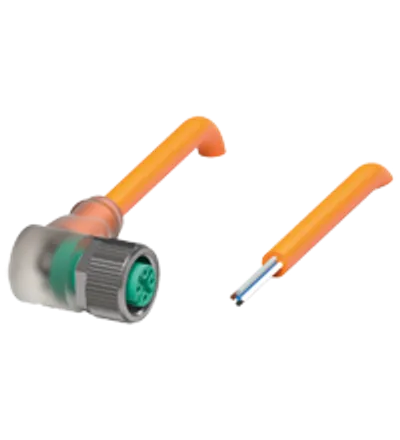

| V15-W-E8-OR10M-PUR-A1 | 70137220-100018 | 5.3 mm | 10 m L | — | TPU, transparent |
| V15-W-E8-OR5M-PUR-A1 | 70137220-100017 | 5.3 mm | 5 m L | 195 g | TPU, transparent |
| V1-W-E8-OR20M-PUR-A1 | 70137220-100016 | 4.9 mm | 20 m L | — | TPU, transparent |
| V1-W-E8-OR15M-PUR-A1 | 70137220-100014 | 4.9 mm | 15 m L | — | TPU, transparent |
| V1-W-E8-OR10M-PUR-A1 | 70137220-100015 | 4.9 mm | 10 m L | 282.6 g | TPU, transparent |
| V1-W-E8-OR7,5M-PUR-A1 | 70137220-100006 | 4.9 mm | 7.5 m L | — | TPU, transparent |
| V1-W-E8-OR5M-PUR-A1 | 70137220-100002 | 4.9 mm | 5 m L | 170.6 g | TPU, transparent |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) |
| UL File Number | E231213 |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
