Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath diameter | Number of cores | Length | Cable code |
|---|---|---|---|---|---|
| V318S-GM-BK5M-PUR-U2S | 70162252 | 5.9 mm | 8 | 5 m L | Li 9Y C 11Y 8 x 0,14 |
| V318S-GM-BK3M-PUR-U2S | 70162250 | 5.9 mm | 8 | 3 m L | Li 9Y C 11Y 8 x 0,14 |
| V318-GM-BK5M-PUR-U2S | 70162248 | 5.9 mm | 8 | 5 m L | Li 9Y C 11Y 8 x 0,14 |
| V318-GM-BK3M-PUR-U2S | 70162244 | 5.9 mm | 8 | 3 m L | Li 9Y C 11Y 8 x 0,14 |
| V15-G-1M-PUR-V15-W | 70128170-100143 | 4.8 mm | 5 | 1 m L | Li 9Y 11YM 5 x 0.34 |

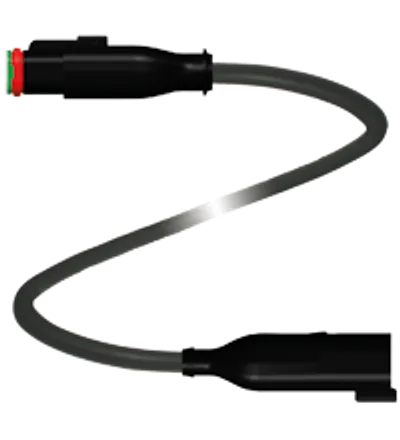

| DT6S-G-BK10M-PUR-O1-DT6P-G | 70167479 | 6 mm | 6 | 10 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-G-BK5M-PUR-O1-DT6P-G | 70167540 | 6 mm | 6 | 5 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-G-BK3M-PUR-O1-DT6P-G | 70167481 | 6 mm | 6 | 3 m L | Li 9Y 11Y 6 x 0,50 |

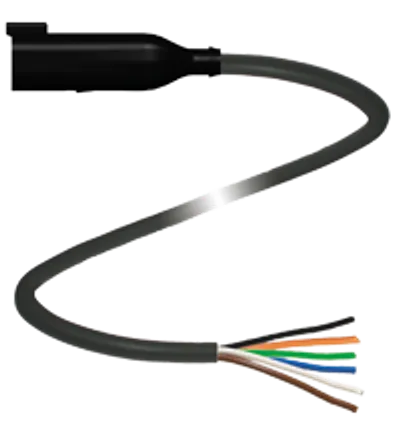

| DT6P-G-BK10M-PUR-O1 | 70167473 | 6 mm | 6 | 10 m L | Li 9Y 11Y 6 x 0,50 |
| DT6P-G-BK6M-PUR-O1 | 70167475 | 6 mm | 6 | 6 m L | Li 9Y 11Y 6 x 0,50 |
| DT6P-G-BK3M-PUR-O1 | 70167474 | 6 mm | 6 | 3 m L | Li 9Y 11Y 6 x 0,50 |

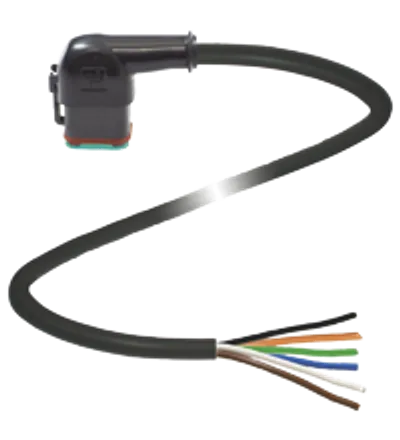

| DT6S-W-BK10M-PUR-O1 | 70167543 | 6 mm | 6 | 10 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-W-BK6M-PUR-O1 | 70167545 | 6 mm | 6 | 6 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-W-BK3M-PUR-O1 | 70167544 | 6 mm | 6 | 3 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-W-BK1,5M-PUR-O1 | 70167542 | 6 mm | 6 | 1.5 m L | Li 9Y 11Y 6 x 0,50 |

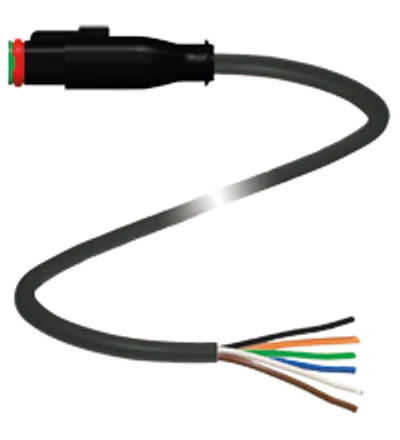

| DT6S-G-BK10M-PUR-O1 | 70167478 | 6 mm | 6 | 10 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-G-BK6M-PUR-O1 | 70167482 | 6 mm | 6 | 6 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-G-BK3M-PUR-O1 | 70167480 | 6 mm | 6 | 3 m L | Li 9Y 11Y 6 x 0,50 |
| DT6S-G-BK1,5M-PUR-O1 | 70167477 | 6 mm | 6 | 1.5 m L | Li 9Y 11Y 6 x 0,50 |
| V11-G-BK1,6M-PUR-U-V3-GM | 70147674-100005 | 4.3 mm | 3 | 1.6 m L | Li F 9Y 11Y 3 x 0,34 |
| V11-G-BK0,95M-PUR-U-V3-GM | 70169447 | 4.3 mm | 3 | 0.95 m L | Li F 9Y 11Y 3 x 0,34 |
| V11-G-BK0,7M-PUR-U-V3-GM | 70147674-100004 | 4.3 mm | 3 | 0.7 m L | Li F 9Y 11Y 3 x 0,34 |
| V11-G-BK0,5M-PUR-U-V3-GM | 70147674-100003 | 4.3 mm | 3 | 0.5 m L | Li F 9Y 11Y 3 x 0,34 |
| V3-WM-E2-OR10M-PUR-A1-V11-G | 70169444 | 4.9 mm | 4 | 10 m L | Li F 9Y 11Y 4 x 0,34 |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Pollution degree | 3 |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
