Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|
| V1-W-15M-PUR-ABG | 207221 | max. 100 N / 300 mm | 15 m L | Li 9Y 11YM 4 x 0.34 | 537 g |

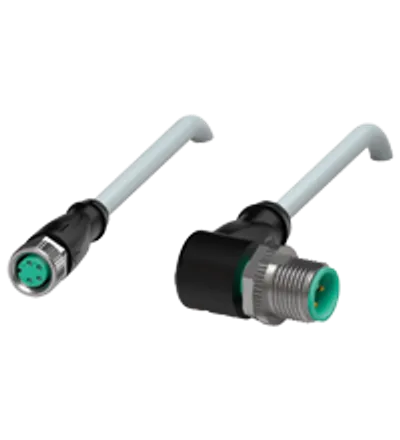

| V31-GM-5M-PVC-V11-W | 200186 | max. 80 N / 300 mm | 5 m L | Li YY 3 x 0,25 | 143.88 g |
| V31-GM-10M-PVC-V11-W | 200188 | max. 80 N / 300 mm | 10 m L | Li YY 3 x 0,25 | 280 g |
| V1-G-20M-PUR-V1-W | 114636 | max. 60 N / 500 mm | 20 m L | Li 9Y 11YM 4 x 0.34 | 582.88 g |
| V1-G-15M-PUR-V1-W | 114635 | max. 60 N / 500 mm | 15 m L | Li 9Y 11YM 4 x 0.34 | 445 g |
| V3-WM-E2-3M-PUR | 199605 | max. 80 N / 500 mm | 3 m L | Li 9Y 11Y 3 x 0,25 | 60.2 g |
| V31-GM-10M-PUR-V1-G | 189541 | max. 60 N / 500 mm | 10 m L | Li 9Y 11Y 4 x 0,25 | 296 g |
| V31-GM-5M-PUR-V1-G | 189540 | max. 60 N / 500 mm | 5 m L | Li 9Y 11Y 4 x 0,25 | 155.75 g |
| V3-WM-5M-PUR-V11-G | 192211 | max. 80 N / 500 mm | 5 m L | Li 9Y 11Y 3 x 0,25 | 119.42 g |
| V3-WM-3M-PUR-V11-G | 187920 | max. 80 N / 500 mm | 3 m L | Li 9Y 11Y 3 x 0,25 | 76.41 g |
| V3-WM-2M-PUR-V11-G | 187919 | max. 80 N / 500 mm | 2 m L | Li 9Y 11Y 3 x 0,25 | 66.65 g |
| V3-WM-1M-PUR-V11-G | 187918 | max. 80 N / 500 mm | 1 m L | Li 9Y 11Y 3 x 0,25 | 37.56 g |

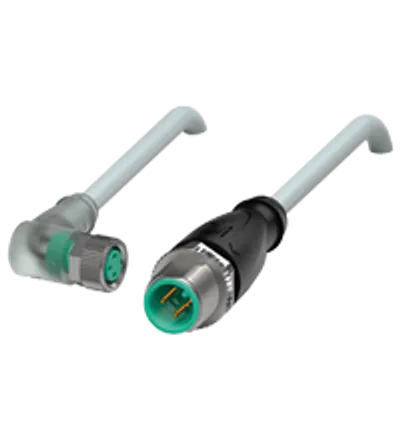

| V3-WM-E2-2M-PUR-V11-G | 187937 | max. 80 N / 500 mm | 2 m L | Li 9Y 11Y 3 x 0,25 | 50 g |
| V1-W-A2-3M-PUR | 197840 | max. 60 N / 500 mm | 3 m L | Li 9Y 11YM 4 x 0.34 | 98 g |
| V1-W-A2-20M-PUR | 187636 | max. 60 N / 500 mm | 20 m L | Li 9Y 11YM 4 x 0.34 | 560.7 g |
| V1-G-E2-10M-PUR | 186792 | max. 10 N / 50 mm | 10 m L | Li 9Y 11YM 3 x 0.34 | 271.97 g |
| V1-G-E2-2M-PUR | 186790 | max. 10 N / 50 mm | 2 m L | Li 9Y 11YM 3 x 0.34 | 63.3 g |
| V1-W-E2-3M-PUR | 189299 | max. 10 N / 50 mm | 3 m L | Li 9Y 11YM 3 x 0.34 | 90.83 g |
| V1-W-E2-20M-PUR | 036330 | max. 10 N / 50 mm | 20 m L | Li 9Y 11YM 3 x 0.34 | 464.3 g |
| V1-W-E2-15M-PUR | 035191 | max. 10 N / 50 mm | 15 m L | Li 9Y 11YM 3 x 0.34 | 373.8 g |
| V1-W-E2-10M-PVC | 189302 | max. 80 N / 300 mm | 10 m L | Li Y YM 3 x 0,34 | 281.9 g |
| V1-W-3M-PUR | 193748 | max. 60 N / 500 mm | 3 m L | Li 9Y 11YM 4 x 0.34 | 92.24 g |
| V1-W-20M-PUR | 193003 | max. 60 N / 500 mm | 20 m L | Li 9Y 11YM 4 x 0.34 | 584.4 g |
| V1-G-3M-PUR | 193747 | max. 60 N / 500 mm | 3 m L | Li 9Y 11YM 4 x 0.34 | 89.37 g |
Common to all listed parts
| Connector 1: Connection | socket |
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |
