Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V11-G-BK15M-PUR-U-V11-W | 240778-0016 | max. 80 N / 300 mm | 15 m L | Li F 9Y 11Y 3 x 0,34 | 379 g |
| V11-G-BK10M-PUR-U-V11-W | 240778-0015 | max. 80 N / 300 mm | 10 m L | Li F 9Y 11Y 3 x 0,34 | 261 g |
| V3-GM-0,3M-PUR | 240799-0018 | max. 80 N / 500 mm | 0.3 m L | Li 9Y 11Y 3 x 0,25 | 36.11 g |
| V15-G-BK5M-PUR-U | 239998-0042 | max. 80 N / 300 mm | 5 m L | Li F 9Y 11Y 5 x 0,34 | 177.2 g |
| V19-W-BK2M-PUR-U/ABG | 456512 | max. 80 N / 300 mm | 2 m L | Li 9Y C 11Y 8 x 0,25 | 119.62 g |
| V11-G-10M-PUR-V11-W | 240778-0013 | max. 10 N / 50 mm | 10 m L | Li 9Y 11YM 3 x 0.34 | 284.72 g |
| V11-G-5M-PUR-V11-W | 240778-0012 | max. 10 N / 50 mm | 5 m L | Li 9Y 11YM 3 x 0.34 | 150 g |
| V11-G-3M-PUR-V11-W | 240778-0011 | max. 10 N / 50 mm | 3 m L | Li 9Y 11YM 3 x 0.34 | 99.61 g |

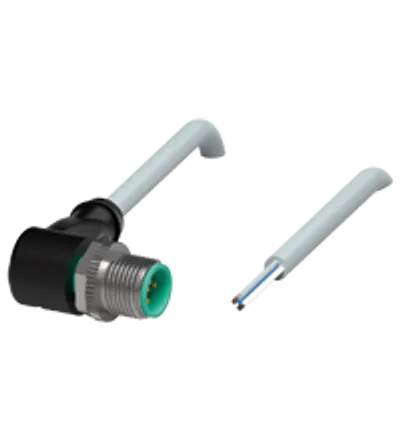

| V15S-W-5M-PUR | 240772-0004 | max. 60 N / 500 mm | 5 m L | Li 9Y 11YM 5 x 0.34 | 160.09 g |
| V11S-W-5M-PUR | 240772-0003 | max. 10 N / 50 mm | 5 m L | Li 9Y 11YM 3 x 0.34 | 142.44 g |
| V17-G-3M-PUR | 269405 | max. 100 N / 300 mm | 3 m L | Li 9Y V1 C V1 11Y 8 x 0,25 | 165.45 g |
| V15-G-BK2,5M-PUR-A-V15-G | 240775-0038 | max. 80 N / 300 mm | 2.5 m L | Li F 9Y 11Y 5 x 0,34 | 101.83 g |

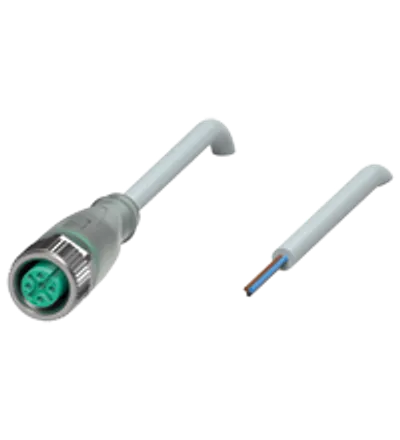

| V1-G-E2/E3-10M-PUR | 240000-0003 | max. 10 N / 50 mm | 10 m L | Li 9Y 11YM 3 x 0.34 | 277 g |
| V95-W-10M-PVC | 269127 | — | — | — | 690 g |

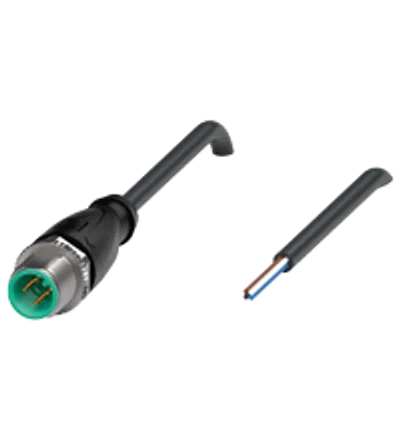

| V1S-G-BK0,6M-PUR-A | 263308 | max. 80 N / 300 mm | 0.6 m L | Li F 9Y 11Y 4 x 0,34 | 23.26 g |
| V1-W-2M-PUR-ABG-V1-G | 240788-0009 | max. 100 N / 300 mm | 2 m L | Li 9Y 11YM 4 x 0.34 | 99 g |
| V3S-GM-3M-PUR | 240807-0006 | max. 80 N / 500 mm | 3 m L | Li 9Y 11Y 3 x 0,25 | 67.83 g |
| V3-WM-BK15M-PUR-U | 240800-0008 | max. 80 N / 300 mm | 15 m L | Li F 9Y 11Y 3 x 0,34 | 371 g |
| V15-W-2,5M-PUR-V15-G | 242914 | max. 60 N / 500 mm | 2.5 m L | Li 9Y 11YM 5 x 0.34 | 100.92 g |
| V1-W-E2-3M-PUR-V1-G | 240780-0018 | max. 60 N / 500 mm | 3 m L | Li 9Y 11YM 3 x 0.34 | 101.6 g |

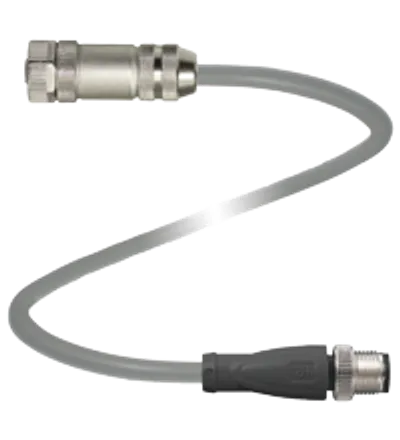

| V19-G-2M-PVC-TP-V19-G | 268716 | — | 2 m L | — | 243.6 g |
| V1-G-1M-PUR-ABG-V1-G | 240787-0012 | max. 100 N / 300 mm | 1 m L | Li 9Y 11YM 4 x 0.34 | 65.6 g |
| V31-GM-30M-PUR | 240799-0017 | max. 60 N / 500 mm | 30 m L | Li 9Y 11Y 4 x 0,25 | 623.78 g |
| V19-G-BK60M-PUR-U | 239998-0041 | max. 50 N / 300 mm | 60 m L | Li 9Y 11Y 8 x 0,25 | 2855 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
