Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product extension optional light source | color of the actuating element | outer diameter of the actuating element | Net Weight | installation depth |
|---|---|---|---|---|---|
| 3SU1103-0AB50-1BA0-Z X90 | Yes | blue | 29.45 mm | 55.5 g | 49.7 mm |
| 3SU1100-0AB50-1BA0-Z Y10 | No | blue | 29.45 mm | 45.5 g | 49.7 mm |
| 3SU1100-0AB50-1BA0-Z X90 | No | blue | 29.45 mm | 45.5 g | 49.7 mm |
| 3SU1100-0AB50-1BA0 | No | blue | 29.45 mm | 45.5 g | 49.7 mm |
| 3SU1100-0AB40-3FA0-Z Y19 | No | green | 29.45 mm | 54.5 g | 71.7 mm |
| 3SU1100-0AB40-3FA0-Z Y15 | No | green | 29.45 mm | 54.5 g | 71.7 mm |
| 3SU1100-0AB40-3FA0-Z Y13 | No | green | 29.45 mm | 54.5 g | 71.7 mm |
| 3SU1100-0AB40-3FA0-Z Y12 | No | green | 29.45 mm | 54.5 g | 71.7 mm |
| 3SU1100-0AB80-1FA0-Z X90 | No | gray | 29.45 mm | 52.5 g | 71.7 mm |
| 3SU1100-0AB80-1FA0 | No | gray | 29.45 mm | 52.5 g | 71.7 mm |
| 3SU1100-0AB70-1FA0-Z Y19 | No | clear | 29.45 mm | 55.5 g | 71.7 mm |
| 3SU1100-0AB70-1FA0-Z Y15 | No | clear | 29.45 mm | 55.5 g | 71.7 mm |
| 3SU1100-0AB70-1FA0-Z Y13 | No | clear | 29.45 mm | 55.5 g | 71.7 mm |
| 3SU1100-0AB70-1FA0-Z Y12 | No | clear | 29.45 mm | 55.5 g | 71.7 mm |
| 3SU1100-0AB70-1FA0-Z Y11 | No | clear | 29.45 mm | 55.5 g | 71.7 mm |
| 3SU1102-0AB30-3BA0-Z Y19 | Yes | yellow | 29.45 mm | 52.5 g | 49.7 mm |
| 3SU1102-0AB30-3BA0-Z Y10 | Yes | yellow | 29.45 mm | 52.5 g | 49.7 mm |
| 3SU1102-0AB30-3BA0-Z X90 | Yes | yellow | 29.45 mm | 52.5 g | 49.7 mm |

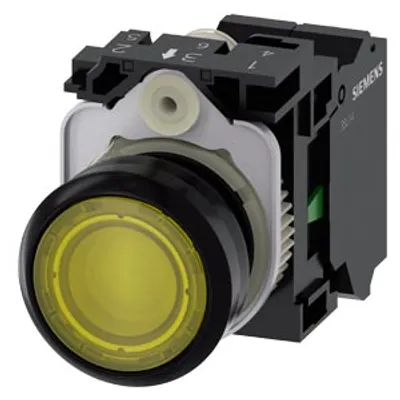

| 3SU1102-0AB30-3BA0 | Yes | yellow | 29.45 mm | 52.5 g | 49.7 mm |
| 3SU1000-1BD30-0AA0 | No | yellow | 40 mm | 0.025 kg | 24.4 mm |
| 3SU1000-1BD20-0AA0-Z Y19 | No | red | 40 mm | 25 g | 24.4 mm |
| 3SU1000-1BD20-0AA0-Z Y15 | No | red | 40 mm | 25 g | 24.4 mm |
| 3SU1000-1BD20-0AA0-Z Y13 | No | red | 40 mm | 25 g | 24.4 mm |
| 3SU1000-1BD20-0AA0-Z Y12 | No | red | 40 mm | 25 g | 24.4 mm |
Common to all listed parts
| principle of operation of the actuating element | momentary contact type |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
| protection class IP | IP66, IP67, IP69(IP69K) |
