Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | type of electrical connection | color of the light source | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1106-6AA50-1AA0-Z Y19 | 43 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1106-6AA50-1AA0-Z Y15 | 43 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1106-6AA50-1AA0-Z Y13 | 43 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA50-1AA0-Z Y13 | 42 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA50-1AA0-Z Y12 | 42 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA50-1AA0-Z Y11 | 42 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA50-1AA0-Z Y10 | 42 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA50-1AA0-Z X90 | 42 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA50-1AA0 | 42 g | other | blue | 11.8 mm | 49.7 mm |
| 3SU1103-6AA40-3AA0-Z Y19 | 38.5 g | other | green | 11.8 mm | 49.7 mm |
| 3SU1000-0CB50-0AA0-Z X90 | 38 g | — | — | 18.1 mm | 24.3 mm |
| 3SU1000-0CB50-0AA0 | 38 g | — | — | 18.1 mm | 24.3 mm |
| 3SU1000-0CB40-0AA0-Z Y19 | 21 g | — | — | 18.1 mm | 24.3 mm |
| 3SU1000-0CB40-0AA0-Z Y15 | 21 g | — | — | 18.1 mm | 24.3 mm |
| 3SU1000-0CB40-0AA0-Z Y13 | 21 g | — | — | 18.1 mm | 24.3 mm |
| 3SU1000-0CB40-0AA0-Z Y12 | 21 g | — | — | 18.1 mm | 24.3 mm |
| 3SU1000-0CB40-0AA0-Z Y11 | 21 g | — | — | 18.1 mm | 24.3 mm |

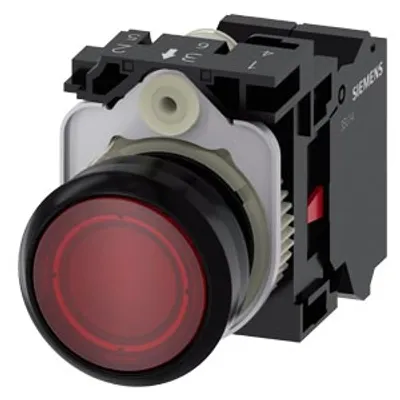

| 3SU1103-0AB20-3CA0 | 97.5 g | spring-loaded terminals | red | 11 mm | 49.7 mm |
| 3SU1103-0AB20-1FA0-Z Y19 | 60.5 g | screw terminal | red | 11 mm | 71.7 mm |
| 3SU1103-0AB20-1FA0-Z Y15 | 60.5 g | screw terminal | red | 11 mm | 71.7 mm |
| 3SU1103-0AB20-1FA0-Z Y13 | 60.5 g | screw terminal | red | 11 mm | 71.7 mm |
| 3SU1103-0AB20-1CA0-Z Y13 | 54.5 g | screw terminal | red | 11 mm | 49.7 mm |
| 3SU1103-0AB20-1CA0-Z Y12 | 54.5 g | screw terminal | red | 11 mm | 49.7 mm |
| 3SU1103-0AB20-1CA0-Z Y11 | 54.5 g | screw terminal | red | 11 mm | 49.7 mm |
Common to all listed parts
| material of the actuating element | plastic |
| shape of the actuating element | round |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
