Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | mechanical service life (operating cycles) typical | Net Weight | mounting height | installation depth | type of electrical connection |
|---|---|---|---|---|---|
| 3SU1000-5PF11-0AA0-Z X90 | 1 000 000 | 124.5 g | 56.3 mm | 25.4 mm | — |
| 3SU1000-5PF11-0AA0 | 1 000 000 | 124.5 g | 56.3 mm | 25.4 mm | — |

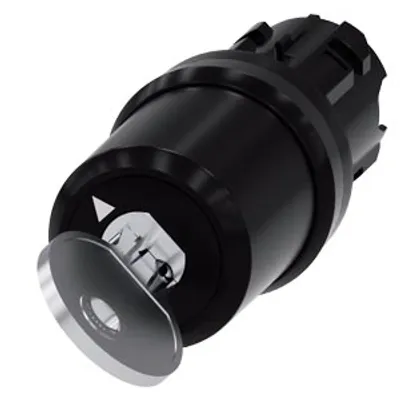

| 3SU1000-5PF01-0AA0-Z Y19 | 1 000 000 | 126.5 g | 56.3 mm | 25.4 mm | — |
| 3SU1000-5PF01-0AA0-Z Y15 | 1 000 000 | 126.5 g | 56.3 mm | 25.4 mm | — |
| 3SU1000-5PF01-0AA0-Z Y12 | 1 000 000 | 126.5 g | 56.3 mm | 25.4 mm | — |
| 3SU1106-0AB40-1FA0-Z Y19 | 3 000 000 | 62.5 g | 11 mm | 71.7 mm | screw terminal |
| 3SU1106-0AB40-1FA0-Z Y15 | 3 000 000 | 62.5 g | 11 mm | 71.7 mm | screw terminal |
| 3SU1106-0AB40-1FA0-Z Y13 | 3 000 000 | 62.5 g | 11 mm | 71.7 mm | screw terminal |
| 3SU1106-0AB40-1FA0-Z Y12 | 3 000 000 | 62.5 g | 11 mm | 71.7 mm | screw terminal |
| 3SU1106-0AB40-1BA0-Z Y12 | 3 000 000 | 52.5 g | 11 mm | 49.7 mm | screw terminal |
| 3SU1106-0AB40-1BA0-Z Y11 | 3 000 000 | 52.5 g | 11 mm | 49.7 mm | screw terminal |
| 3SU1106-0AB40-1BA0-Z Y10 | 3 000 000 | 52.5 g | 11 mm | 49.7 mm | screw terminal |
| 3SU1106-0AB20-3FA0-Z Y13 | 3 000 000 | 60.5 g | 11 mm | 71.7 mm | spring-loaded terminals |
| 3SU1106-0AB20-1FA0-Z Y19 | 3 000 000 | 62.5 g | 11 mm | 71.7 mm | screw terminal |
| 3SU1106-6AA40-1AA0-Z Y13 | — | 42 g | 11.8 mm | 49.7 mm | other |
| 3SU1106-6AA40-1AA0-Z Y12 | — | 42 g | 11.8 mm | 49.7 mm | other |
| 3SU1106-6AA40-1AA0-Z Y11 | — | 42 g | 11.8 mm | 49.7 mm | other |
| 3SU1106-6AA40-1AA0-Z Y10 | — | 42 g | 11.8 mm | 49.7 mm | other |
| 3SU1106-6AA40-1AA0-Z X90 | — | 42 g | 11.8 mm | 49.7 mm | other |
| 3SU1106-6AA40-1AA0 | — | 42 g | 11.8 mm | 49.7 mm | other |

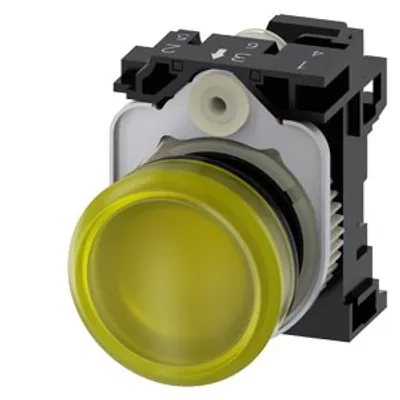

| 3SU1106-6AA30-3AA0-Z Y19 | — | 41 g | 11.8 mm | 49.7 mm | other |
| 3SU1100-0AB30-3BA0 | 10 000 000 | 47.5 g | 11 mm | 49.7 mm | spring-loaded terminals |
| 3SU1100-0AB30-1FA0-Z Y19 | 10 000 000 | 0.055 kg | 11 mm | 71.7 mm | screw terminal |
| 3SU1100-0AB30-1FA0-Z Y15 | 10 000 000 | 0.055 kg | 11 mm | 71.7 mm | screw terminal |
Common to all listed parts
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| installation width | 29.5 mm |
| Environmental Product Declaration(EPD) | Yes |
