Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | shape of the actuating element | Net Weight | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1000-0DB60-0AA0-Z Y10 | Pushbuttons | round | 25 g | 18.1 mm | 24.3 mm |
| 3SU1000-0DB60-0AA0-Z X90 | Pushbuttons | round | 25 g | 18.1 mm | 24.3 mm |
| 3SU1000-0DB60-0AA0 | Pushbuttons | round | 25 g | 18.1 mm | 24.3 mm |
| 3SU1000-0DB50-0AA0-Z Y19 | Pushbuttons | round | 21 g | 18.1 mm | 24.3 mm |
| 3SU1000-0DB50-0AA0-Z Y15 | Pushbuttons | round | 21 g | 18.1 mm | 24.3 mm |
| 3SU1000-0DB50-0AA0-Z Y13 | Pushbuttons | round | 21 g | 18.1 mm | 24.3 mm |
| 3SU1000-0DB50-0AA0-Z Y12 | Pushbuttons | round | 21 g | 18.1 mm | 24.3 mm |
| 3SU1000-4WS10-0AA0-Z Y19 | — | round | 22 g | 29.6 mm | 29.5 mm |
| 3SU1000-4WS10-0AA0-Z X90 | — | round | 22 g | 29.6 mm | 29.5 mm |
| 3SU1000-4WS10-0AA0 | — | round | 22 g | 29.6 mm | 29.5 mm |
| 3SU1000-4JL11-0AA0-Z Y19 | Key-operated switches | Key | 83.5 g | 51.7 mm | 25.4 mm |
| 3SU1000-4JL11-0AA0-Z Y15 | Key-operated switches | Key | 83.5 g | 51.7 mm | 25.4 mm |
| 3SU1000-4JL11-0AA0-Z Y12 | Key-operated switches | Key | 83.5 g | 51.7 mm | 25.4 mm |
| 3SU1000-4JL11-0AA0-Z Y11 | Key-operated switches | Key | 83.5 g | 51.7 mm | 25.4 mm |
| 3SU1001-6AA50-0AA0 | — | round | 11.5 g | 11.8 mm | 24.4 mm |
| 3SU1001-6AA40-0AA0-Z Y19 | Indicator lights | round | 12 g | 11.8 mm | 24.4 mm |

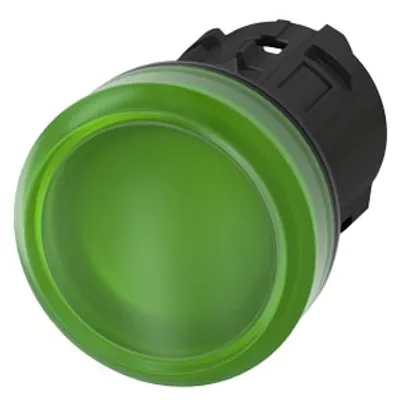

| 3SU1001-6AA40-0AA0-Z Y15 | Indicator lights | round | 12 g | 11.8 mm | 24.4 mm |
| 3SU1001-6AA40-0AA0-Z Y13 | Indicator lights | round | 12 g | 11.8 mm | 24.4 mm |
| 3SU1001-6AA30-0AA0 | Indicator lights | round | 12 g | 11.8 mm | 24.4 mm |
| 3SU1001-6AA20-0AA0-Z Y19 | — | round | 12 g | 11.8 mm | 24.4 mm |
| 3SU1001-6AA20-0AA0-Z Y15 | — | round | 12 g | 11.8 mm | 24.4 mm |
| 3SU1100-7AB10-1NA0-Z Y15 | Coordinate switches | Extended handle | 81.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AB10-1NA0-Z Y12 | Coordinate switches | Extended handle | 81.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AB10-1NA0-Z Y11 | Coordinate switches | Extended handle | 81.5 g | 71.3 mm | 53.7 mm |
Common to all listed parts
| material of the front ring | plastic |
| color of the front ring | black |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
