Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | shape of the actuating element | outer diameter of the actuating element | design of the front ring | Net Weight | height |
|---|---|---|---|---|---|
| 3SU1000-1HB10-0AA0-Z Y19 | round | 40 mm | without | 46 g | 40 mm |
| 3SU1000-1HB10-0AA0-Z Y15 | round | 40 mm | without | 46 g | 40 mm |
| 3SU1002-2BM40-0AA0-Z Y15 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |

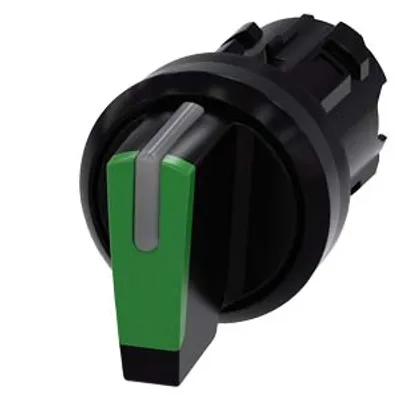

| 3SU1002-2BM40-0AA0-Z Y12 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BM40-0AA0-Z Y11 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BM40-0AA0-Z Y10 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BM40-0AA0-Z X90 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BM40-0AA0 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BM30-0AA0-Z Y19 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BF30-0AA0-Z Y19 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BF30-0AA0-Z Y15 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1002-2BF30-0AA0-Z Y12 | Handle | 32.3 mm | standard | 22 g | 32.3 mm |
| 3SU1000-5BL51-0AA0-Z Y15 | Key | 29.5 mm | Standard | 126.5 g | 29.5 mm |
| 3SU1000-5BL51-0AA0-Z Y12 | Key | 29.5 mm | Standard | 126.5 g | 29.5 mm |
| 3SU1000-5BL51-0AA0-Z Y11 | Key | 29.5 mm | Standard | 126.5 g | 29.5 mm |
| 3SU1000-5BL51-0AA0-Z Y10 | Key | 29.5 mm | Standard | 126.5 g | 29.5 mm |
| 3SU1000-5BL51-0AA0-Z Y01+Y19 | Key | 29.5 mm | Standard | 126.5 g | 29.5 mm |
| 3SU1000-5BL51-0AA0-Z Y01 | Key | 29.5 mm | Standard | 126.5 g | 29.5 mm |
| 3SU1000-5BL11-0AA0-Z Y10 | Key | 29.5 mm | Standard | 122.5 g | 29.5 mm |
| 3SU1000-5BL11-0AA0-Z Y01+Y19 | Key | 29.5 mm | Standard | 122.5 g | 29.5 mm |
| 3SU1000-5BL11-0AA0-Z Y01 | Key | 29.5 mm | Standard | 122.5 g | 29.5 mm |
| 3SU1000-5BF21-0AA0 | Key | 29.5 mm | Standard | 127.5 g | 29.5 mm |
| 3SU1000-5BF11-0AA0-Z Y19 | Key | 29.5 mm | Standard | 125.5 g | 29.5 mm |

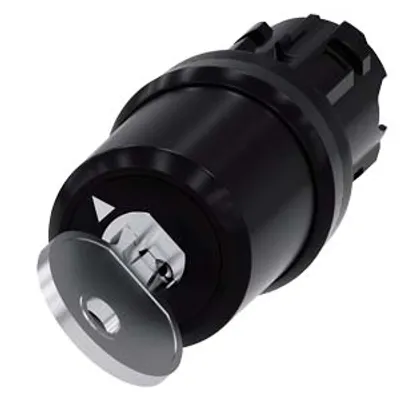

| 3SU1000-5BF11-0AA0-Z Y15 | Key | 29.5 mm | Standard | 125.5 g | 29.5 mm |
Common to all listed parts
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
