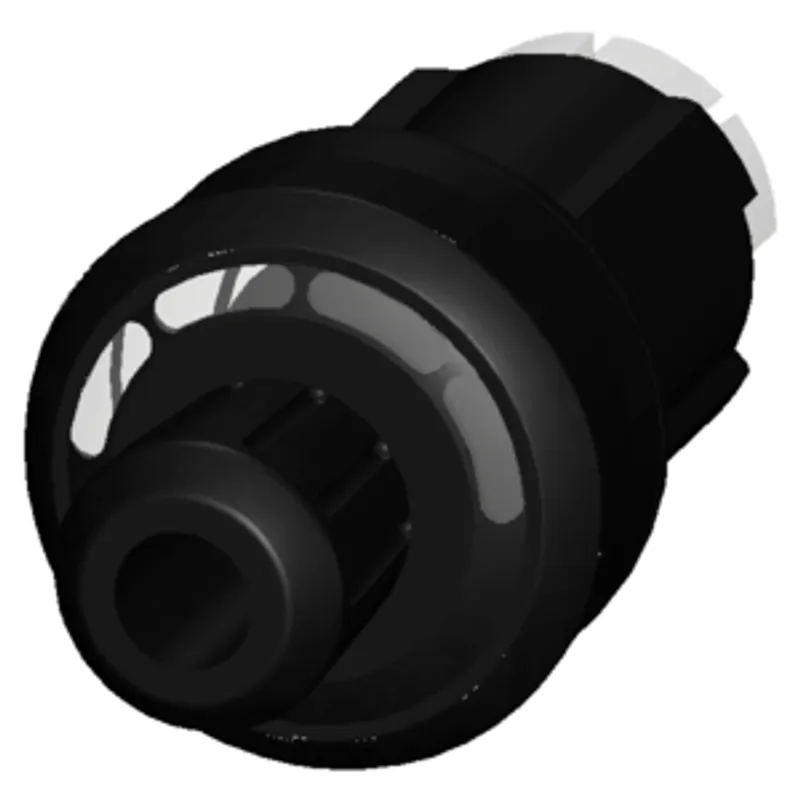

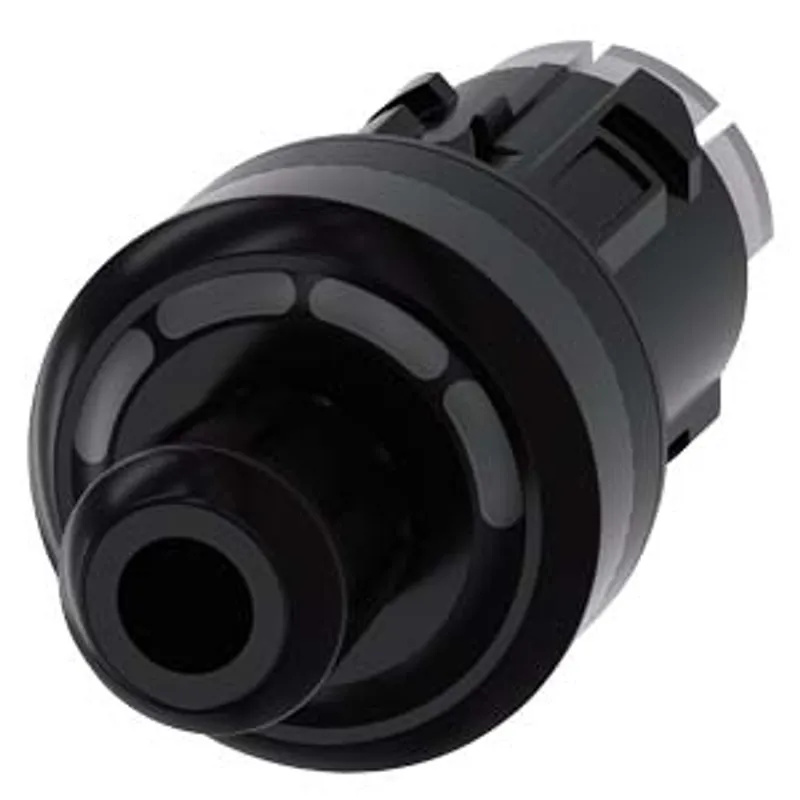

Siemens 3SU1000-4WS10-0AA0
ID key-operated switch, 22 mm, round, plastic, black, RFID, 4 switch positions O-I-II-III
- MPN
- 3SU1000-4WS10-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1000-4WS10-0AA0?
ID key-operated switch, 22 mm, round, plastic, black, RFID, 4 switch positions O-I-II-III, operating angle 3x45°, without ID key, Key removal in O+I+II+III
Specifications
Actuator
| principle of operation of the actuating element | latching |
| product extension optional – light source | No |
| product extension optional – contact module | No |
| color – of the actuating element | black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| number of switching positions | 4 |
| switch position for key distraction | Key removal possible in all 4 positions |
Front ring
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
General technical data
| protection class IP | IP65 |
| mechanical service life (operating cycles) typical | 100 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 22 g |
Connections/ Terminals
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
Ambient conditions
| ambient temperature – during operation | -25 ... +70 °C |
| ambient temperature – during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |

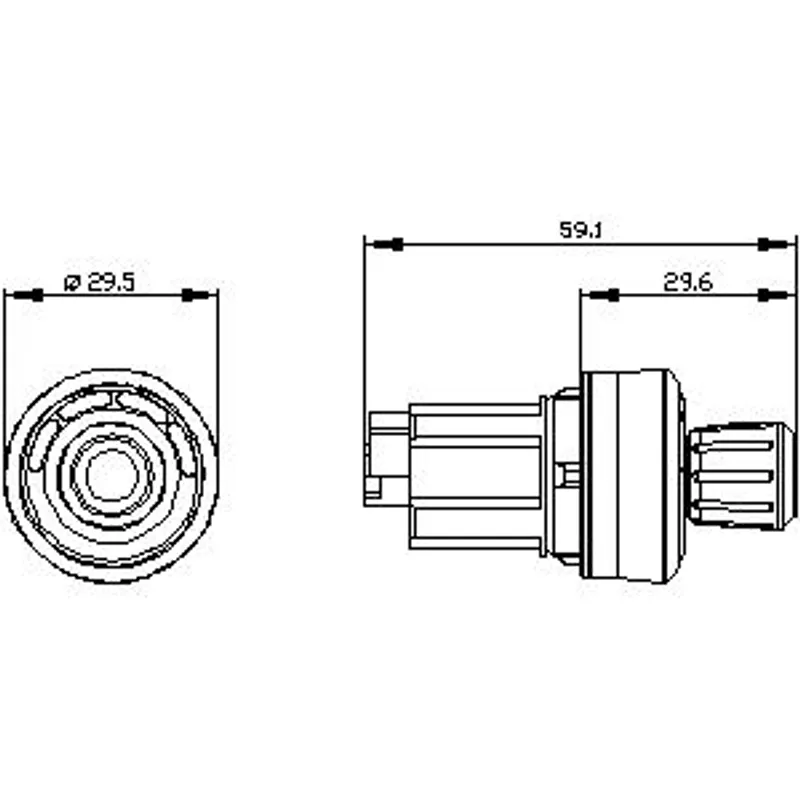

Installation/ mounting/ dimensions
| height | 29.5 mm |
| width | 29.5 mm |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 29.6 mm |
| installation width | 29.5 mm |
| installation depth | 29.5 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SU1000-4WS10-0AA0: frequently asked questions
When can 3SU1000-4WS10-0AA0 be shipped?
3SU1000-4WS10-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SU1000-4WS10-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SU1000-4WS10-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1000-4WS10-0AA0, subject to availability and destination.
