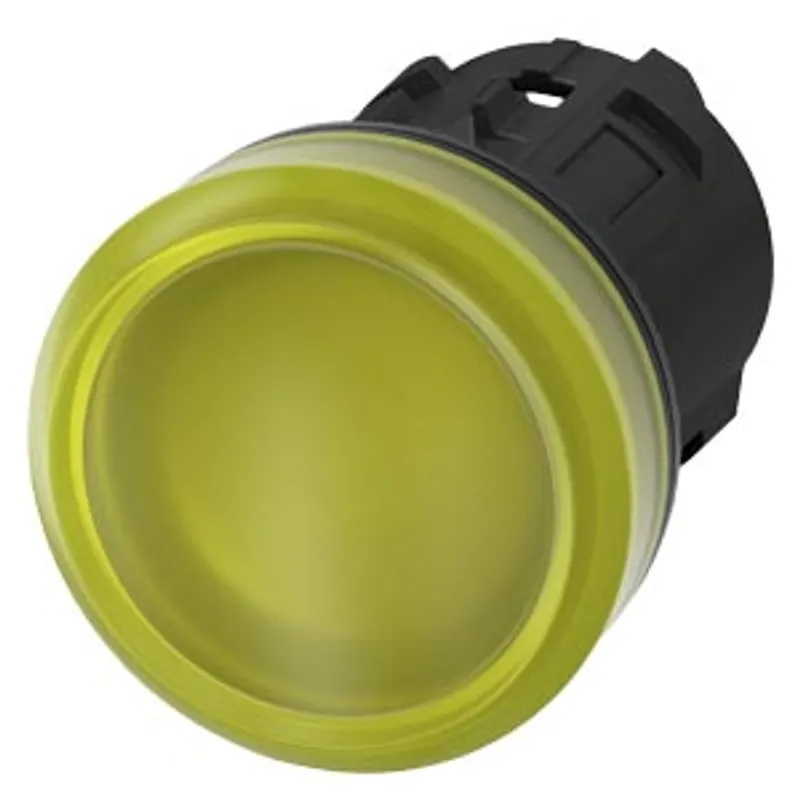

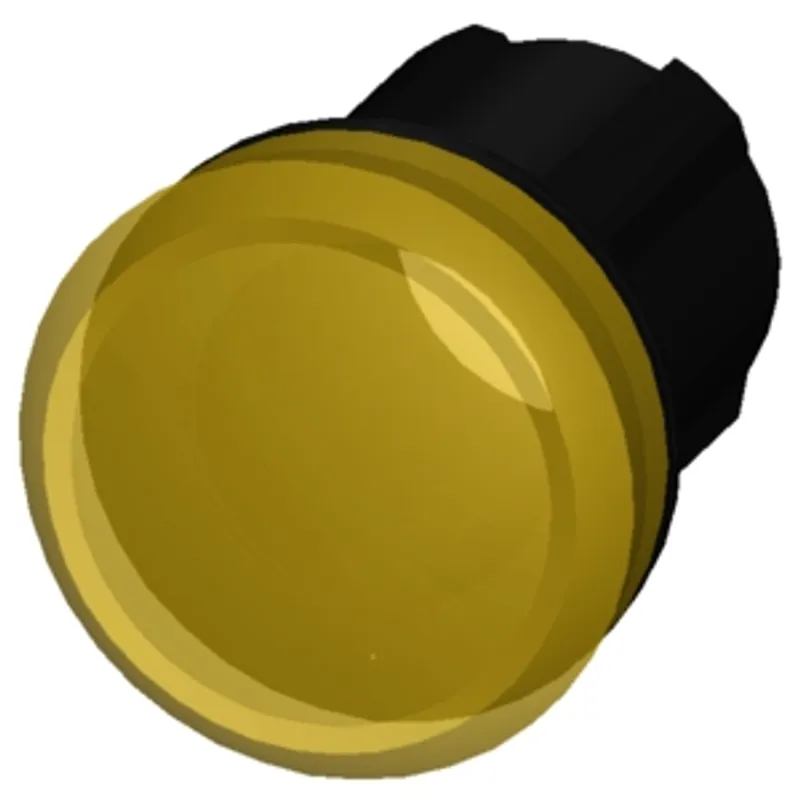

Siemens 3SU1001-6AA30-0AA0
Indicator lights, 22 mm, round, plastic, yellow, lens, smooth
- MPN
- 3SU1001-6AA30-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1001-6AA30-0AA0?
Indicator lights, 22 mm, round, plastic, yellow, lens, smooth
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Plastic, black, 22 mm |
Actuator
| product extension optional — light source | Yes |
| product extension optional — contact module | No |
| color — of the actuating element | yellow |
| color — of the cover cap | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
Front ring
| product component front ring | No |
| material of the front ring | plastic |
| color of the front ring | black |
General technical data
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| reference code according to IEC 81346-2 | P |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 12 g |
Connections/ Terminals
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |

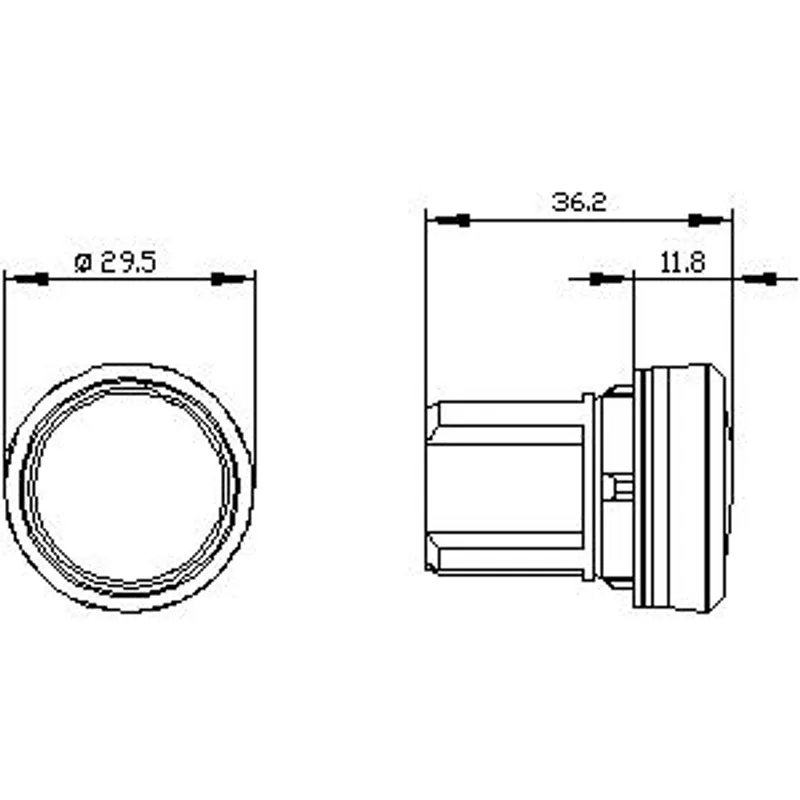

Installation/ mounting/ dimensions
| height | 29.5 mm |
| width | 29.5 mm |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 24.4 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
