3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA6110-8KP31-0AA0 | LDAE | ETU850 | 13 W | 2.5 kg | 150 A |

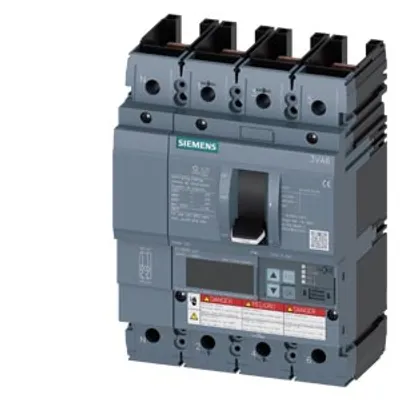

| 3VA6110-8KM41-2AA0 | LDAE | ETU830 | 13 W | 2.9 kg | 150 A |
| 3VA6110-8KL31-2AA0 | LDAE | ETU820 | 13 W | 2.3 kg | 150 A |
| 3VA6110-8KL31-0AA0 | LDAE | ETU820 | 13 W | 2.5 kg | 150 A |
| 3VA6110-8JT41-2AA0 | LDAE | ETU556 | 13 W | 2.9 kg | 150 A |
| 3VA5145-5ED31-1AA0 | MEAM | TM210 | 11.4 W | 0.88 kg | 450 A |
| 3VA5145-5ED31-0AA0 | MEAS | TM210 | 11.4 W | 950 g | 450 A |
| 3VA5145-5ED21-0AA0 | MEAS | TM210 | 7.6 W | 621 g | 450 A |
| 3VA5270-6EF31-2AA0 | HFAS | TM240 | 17 W | 2 100 g | 350 A |
| 3VA5270-6EF31-0AA0 | HFAS | TM240 | 17 W | 2 kg | 350 A |
| 3VA5270-6ED61-0AA0 | HFAS | TM210 | 11 W | 1.9 kg | 700 A |
| 3VA5270-6ED41-2AA0 | HFAS | TM210 | 17 W | 2 800 g | 700 A |

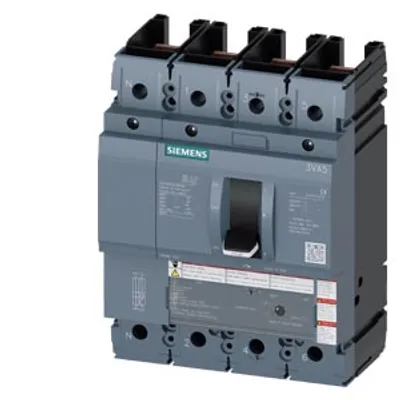

| 3VA5270-5EF41-2AA0 | MFAS | TM240 | 17 W | 2 800 g | 350 A |
| 3VA5270-5EF41-0AA0 | MFAS | TM240 | 17 W | 2.7 kg | 350 A |
| 3VA5270-5EF31-2AA0 | MFAS | TM240 | 17 W | 2 100 g | 350 A |
| 3VA5191-1MU31-0AA0 | HEAP | TM120M | 6 W | 740 g | 30 A |
| 3VA5191-1MH31-0AA0 | HEAP | TM120M | 6 W | 938 g | 50 A |
| 3VA5190-6ED11-1AA0 | H5EAM | TM210 | 7.13 W | 0.38 kg | 900 A |
| 3VA5190-6ED11-0AA0 | H5EAS | TM210 | 7.13 W | 0.383 kg | 900 A |
| 3VA5190-6EC31-1AA0 | HEAM | TM230 | 21.4 W | 961 g | 450 A |
| 3VA5190-5GD41-0AA0 | MEAS | TM210 | 18 W | 952 g | 900 A |
| 3VA5190-5GC41-0AA0 | MEAS | TM230 | 18 W | 1.24 g | 450 A |
| 3VA5190-5ED41-0AA0 | MEAS | TM210 | 21.4 W | 952 g | 900 A |
| 3VA5560-0MH36-0AA0 | HMAP | TM120M | 120 W | 15.26 kg | 4 800 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
