3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

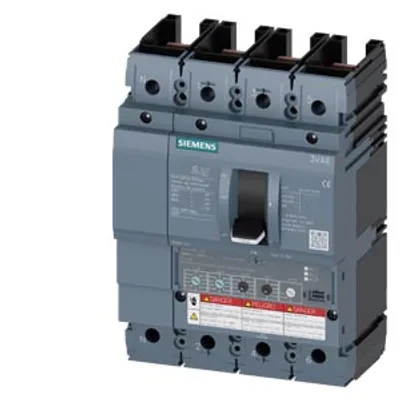

| 3VA6115-0HN41-0AA0 | EDAE | ETU350 | 29 W | 2.821 kg | 1 800 A |
| 3VA5335-6EC31-2AA0 | HJAS | TM230 | 71 W | 4 820 g | 1 750 A |
| 3VA5335-6EC31-1AA0 | HJAM | TM230 | 71 W | 5.2 kg | 1 750 A |
| 3VA5335-6EC31-0AA0 | HJAS | TM230 | 71 W | 4.714 kg | 1 750 A |

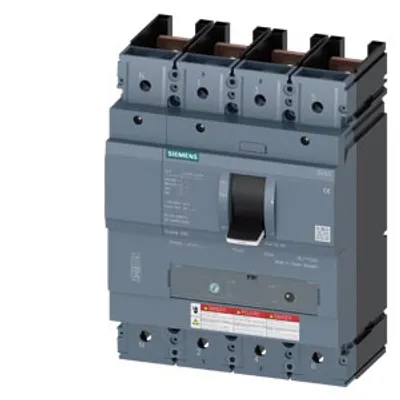

| 3VA5335-5GF41-2AA0 | MJAS | TM240 | 71 W | 6 820 g | 1 750 A |
| 3VA5335-5GF41-0AA0 | MJAS | TM240 | 71 W | 6.82 kg | — |
| 3VA5335-5GC41-2AA0 | MJAS | TM230 | 71 W | 6 820 g | 1 750 A |
| 3VA5335-5EC31-2AA0 | MJAS | TM230 | 71 W | 4 820 g | 1 750 A |
| 3VA5335-5EC31-1AA0 | MJAM | TM230 | 71 W | 5.2 kg | 1 750 A |

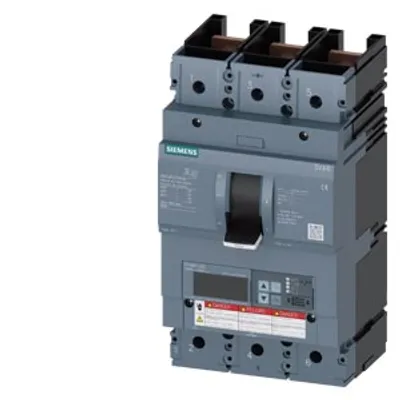

| 3VA6325-0KQ31-0AA0 | EJAE | ETU860 | 27 W | 5.3 kg | 375 A |

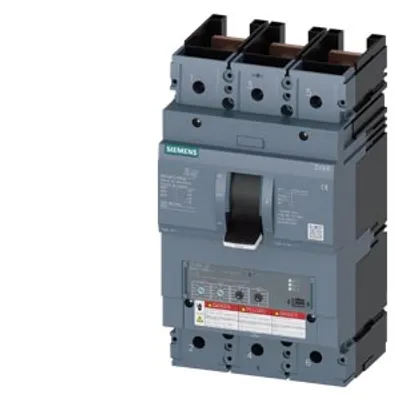

| 3VA6325-0HN31-0AA0 | EJAE | ETU350 | 27 W | 5.3 kg | 3 000 A |
| 3VA6325-0HM31-0AA0 | EJAE | ETU330 | 27 W | 5.3 kg | 375 A |

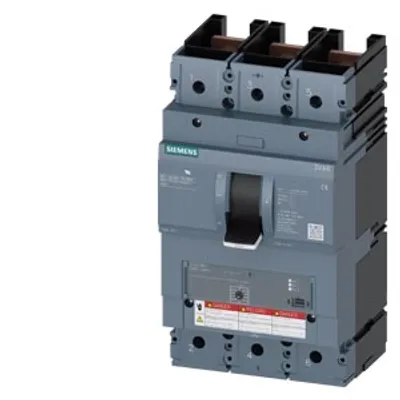

| 3VA6320-1MS31-0AA0 | CJAR | ETU310M | 18 W | 4.5 kg | 600 A |

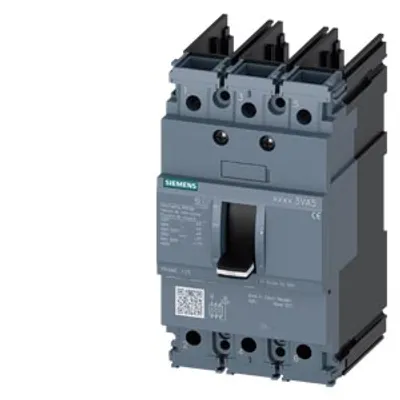

| 3VA5190-5ED31-1AA0 | MEAM | TM210 | 21.4 W | 0.88 kg | 900 A |

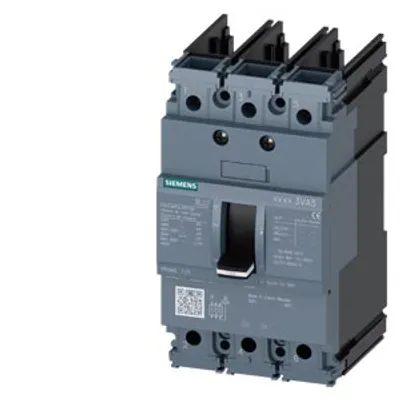

| 3VA5190-5ED31-0AA0 | MEAS | TM210 | 21.4 W | 940 g | 900 A |

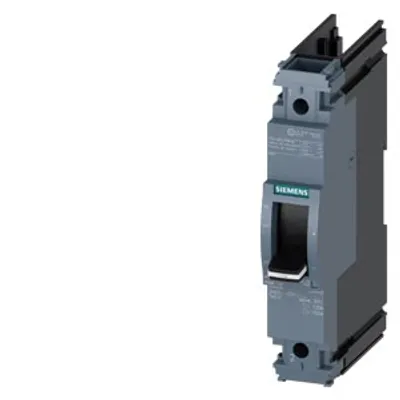

| 3VA5190-4ED11-1AA0 | SEAM | TM210 | 7.13 W | 0.38 kg | 900 A |

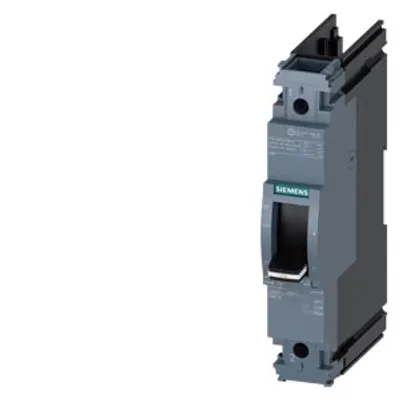

| 3VA5190-4ED11-0AA0 | SEAS | TM210 | 7.13 W | 390 g | 900 A |

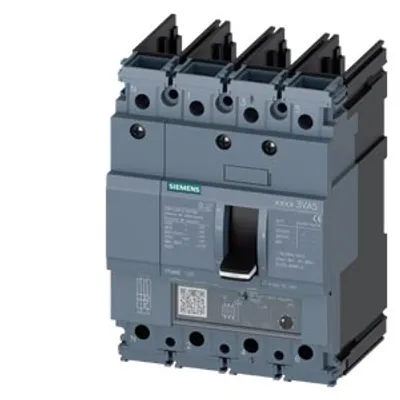

| 3VA5190-4EC41-0AA0 | SEAS | TM230 | 21.4 W | 952 g | 450 A |

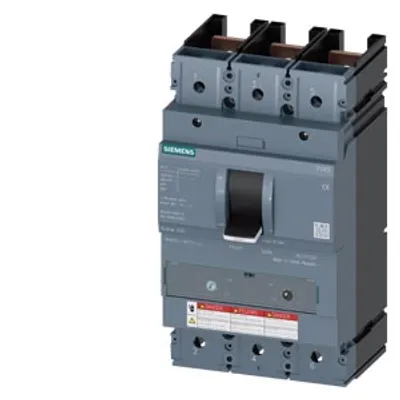

| 3VA5330-7EF31-2AA0 | CJAS | TM240 | 70 W | 4 820 g | 1 500 A |
| 3VA5330-7EF31-0AA0 | CJAS | TM240 | 70 W | 4.753 kg | 1 500 A |
| 3VA5330-6GC41-2AA0 | HJAS | TM230 | 70 W | 6 820 g | 1 500 A |
| 3VA6110-5JT31-2AA0 | MDAE | ETU556 | 13 W | 2.3 kg | 150 A |

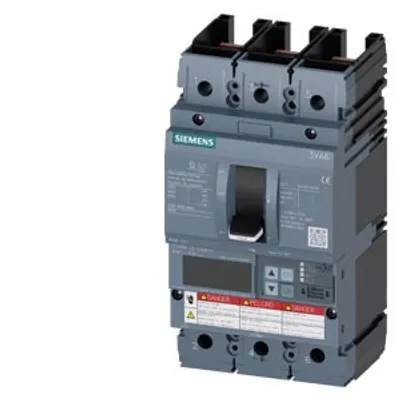

| 3VA6110-5JT31-0AA0 | MDAE | ETU556 | 13 W | 2.5 kg | 150 A |

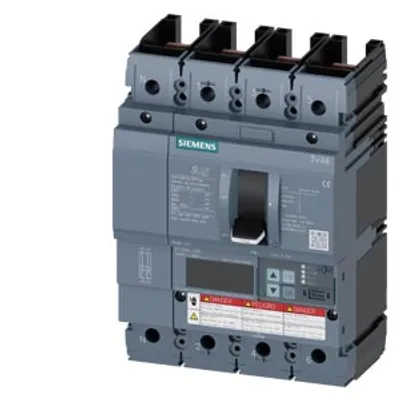

| 3VA6110-5JQ41-2AA0 | MDAE | ETU560 | 13 W | 2.9 kg | 150 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| reference code / according to IEC 81346-2 | Q |
