3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|

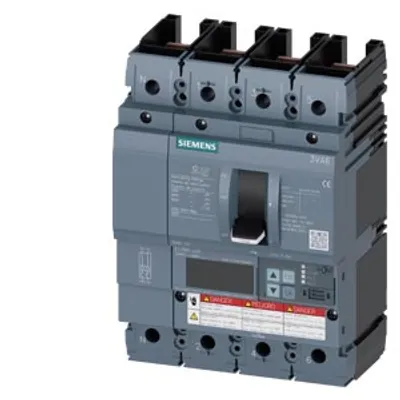

| 3VA6110-5JQ41-0AA0 | MDAE | ETU560 | 13 W | 4.33 W | 3.2 kg |
| 3VA6210-7JP31-2AA0 | CFAE | ETU550 | 6.7 W | 2.23 W | 2.3 kg |

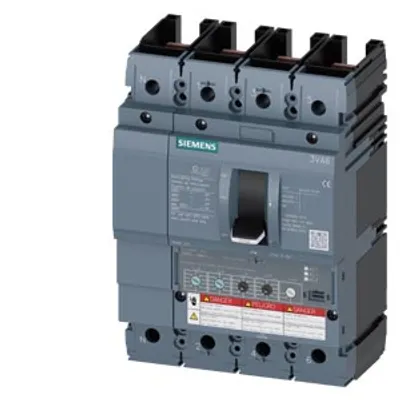

| 3VA6210-7HM41-2AA0 | CFAE | ETU330 | 6.7 W | 2.23 W | 2.9 kg |
| 3VA5260-5ED31-1AA0 | MFAM | TM210 | 22 W | 7.3 W | 2 kg |
| 3VA5250-7ED61-0AA0 | CFAS | TM210 | 12 W | 5.8 W | 1.9 kg |
| 3VA5250-7ED31-1AA0 | CFAM | TM210 | 17 W | 5.8 W | 2 kg |

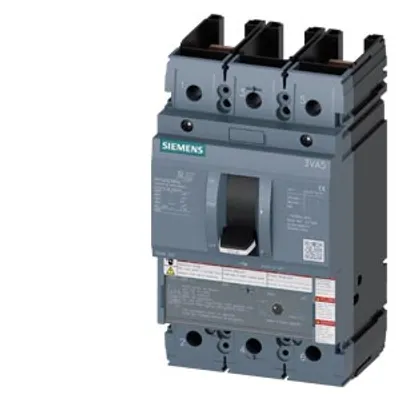

| 3VA5240-5ED61-0AA0 | MFAS | TM210 | 14 W | 6.8 W | 1.9 kg |
| 3VA5235-7ED61-0AA0 | CFAS | TM210 | 14.4 W | 7.2 W | 2 100 g |

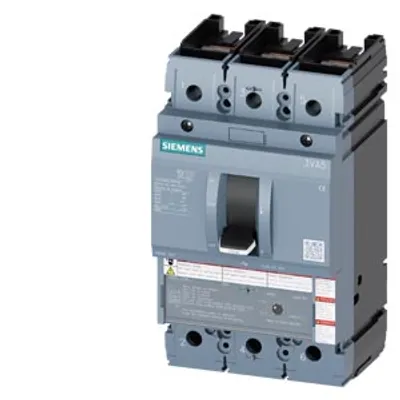

| 3VA5235-7ED36-1AA0 | CFAM | TM210 | 21.7 W | 7.2 W | 2 100 g |
| 3VA6325-6KT31-2AA0 | HJAE | ETU856 | 27 W | 9 W | 5.3 kg |
| 3VA6325-6KT31-0AA0 | HJAE | ETU856 | 27 W | 9 W | 5.3 kg |
| 3VA6325-6KQ41-2AA0 | HJAE | ETU860 | 27 W | 9 W | 6.9 kg |
| 3VA6325-6KQ41-0AA0 | HJAE | ETU860 | 27 W | 9 W | 6.9 kg |

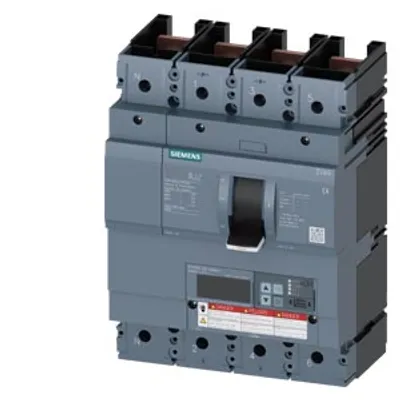

| 3VA6325-6JT41-0AA0 | HJAE | ETU556 | 27 W | 9 W | 6.9 kg |

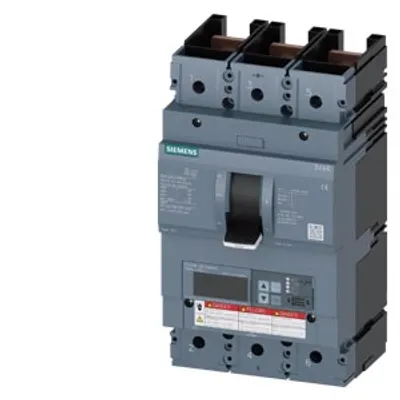

| 3VA6325-6JT31-2AA0 | HJAE | ETU556 | 27 W | 9 W | 5.3 kg |

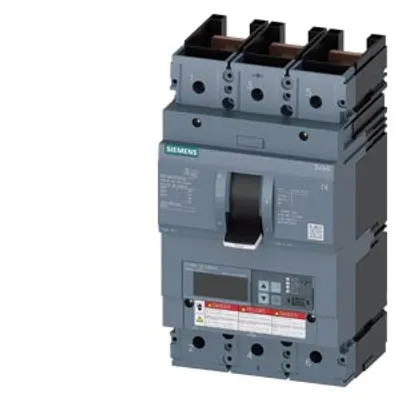

| 3VA6325-6JT31-0AA0 | HJAE | ETU556 | 27 W | 9 W | 5.3 kg |

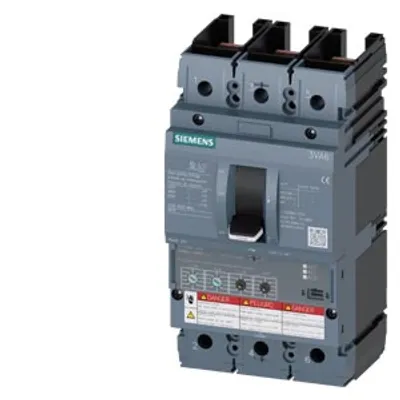

| 3VA6225-0HM31-0AA0 | EFAE | ETU330 | 42 W | 14 W | 2.2 kg |

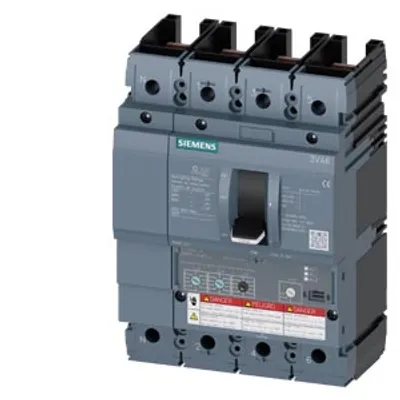

| 3VA6225-0HL41-0AA0 | EFAE | ETU320 | 42 W | 14 W | 2.821 kg |

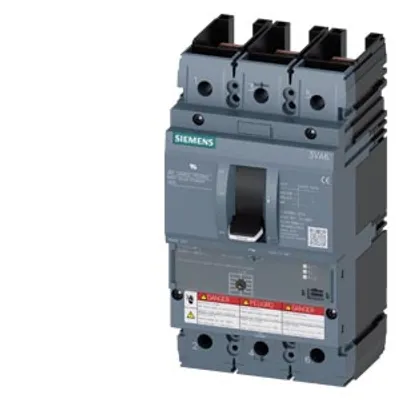

| 3VA6215-1MS31-0AA0 | CFAR | ETU310M | 15 W | 5 W | 2.5 kg |
| 3VA5814-5EC31-1AA0 | MPAM | TM230 | 331 W | 331 W | 3.133 kg |

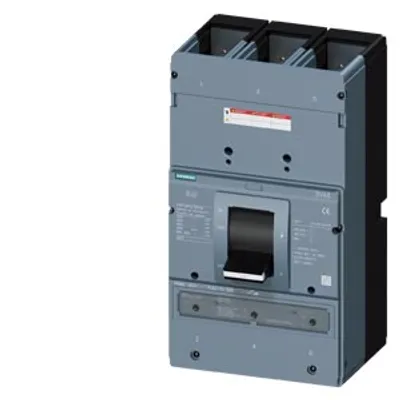

| 3VA5814-5EC31-0AA0 | MPAS | TM230 | 331 W | 331 W | 24.66 kg |
| 3VA5790-7EC61-2AA0 | CNAS | TM230 | 167 W | 167 W | 3.133 kg |
| 3VA6210-5KL31-2AA0 | MFAE | ETU820 | 6.7 W | 2.23 W | 2.3 kg |

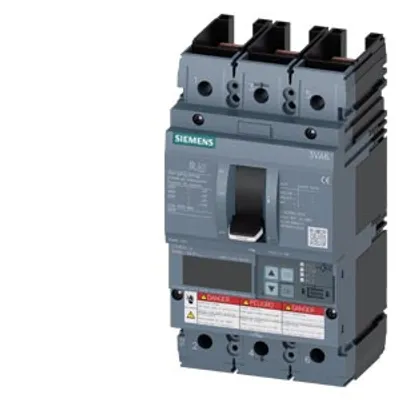

| 3VA6210-5KL31-0AA0 | MFAE | ETU820 | 6.7 W | 2.23 W | 2.5 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
