3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | protection function of the overcurrent release | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA6710-5KQ31-0AA0 | MNAE | ETU860 | LSIG | 3.133 kg | 1 500 A |
| 3VA6610-5JP32-0AA0 | MMNAE | ETU550 | LSI | 13.362 kg | 1 500 A |
| 3VA6610-5HN46-0AA0 | MMNAE | ETU350 | LSI | 23.298 kg | 10 000 A |
| 3VA6610-5HN42-0AA0 | MMNAE | ETU350 | LSI | 17.02 kg | 10 000 A |
| 3VA6610-5HN36-0AA0 | MMNAE | ETU350 | LSI | 17.755 kg | 10 000 A |
| 3VA6580-7JT42-0AA0 | CMAE | ETU556 | LSI-G-alarm only | 17.01 kg | — |
| 3VA6580-7JT36-2AA0 | CMAE | ETU556 | LSI-G-alarm only | 17.755 kg | 1 200 A |
| 3VA6580-7JT36-0AA0 | CMAE | ETU556 | LSI-G-alarm only | 17.755 kg | 1 200 A |
| 3VA6580-7JT32-2AA0 | CMAE | ETU556 | LSI-G-alarm only | 13.3 kg | 1 200 A |
| 3VA6580-7JT32-0AA0 | CMAE | ETU556 | LSI-G-alarm only | 13.3 kg | 1 200 A |
| 3VA6580-7JQ46-2AA0 | CMAE | ETU560 | LSIG | 23.298 kg | 1 200 A |
| 3VA6580-7JQ46-0AA0 | CMAE | ETU560 | LSIG | 23.298 kg | 1 200 A |
| 3VA6460-8JT31-0AA0 | LLAE | ETU556 | LSI-G-alarm only | 5.3 kg | 900 A |

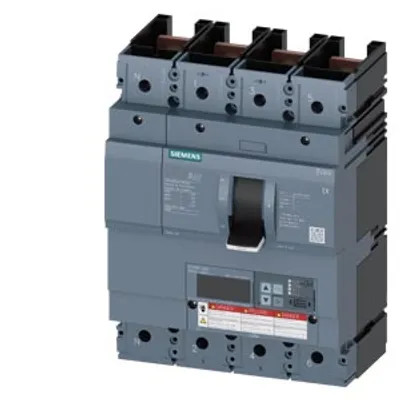

| 3VA6460-8JQ41-0AA0 | LLAE | ETU560 | LSIG | 6.9 kg | 900 A |
| 3VA6460-8HM31-0AA0 | LLAE | ETU330 | LIG | 5.3 kg | 900 A |
| 3VA6460-8HL31-0AA0 | LLAE | ETU320 | LI | 5.3 kg | 900 A |
| 3VA6325-5HN31-0AA0 | MJAE | ETU350 | LSI | 4.875 kg | 3 000 A |
| 3VA6325-5HM41-2AA0 | MJAE | ETU330 | LIG | 6.9 kg | 375 A |
| 3VA6325-5HM41-0AA0 | MJAE | ETU330 | LIG | 6.9 kg | 375 A |
| 3VA6325-5HL31-0AA0 | MJAE | ETU320 | LI | 4.5 kg | 375 A |
| 3VA6325-1MS31-0AA0 | CJAR | ETU310M | I | 5.3 kg | 750 A |
| 3VA6325-8KQ31-2AA0 | LJAE | ETU860 | LSIG | 5.3 kg | 375 A |
| 3VA6325-8KQ31-0AA0 | LJAE | ETU860 | LSIG | 5.3 kg | 375 A |
| 3VA6325-8KP31-0AA0 | LJAE | ETU850 | LSI | 5.3 kg | 375 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
