3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA6115-6JQ41-2AA0 | ETU560 | 9.67 W | 2.9 kg | 60 A | 225 A |
| 3VA6115-6JQ41-0AA0 | ETU560 | 9.67 W | 3.2 kg | 60 A | 225 A |

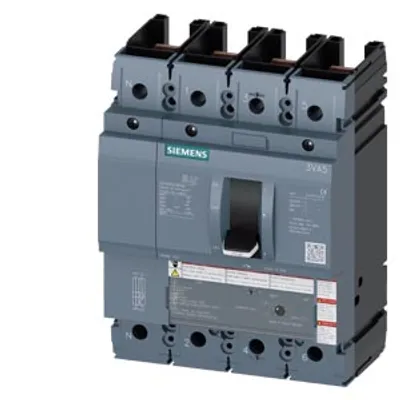

| 3VA5220-7GD41-0AA0 | TM210 | 14.17 W | 2.55 kg | 200 A | 2 000 A |
| 3VA5220-7GC41-2AA0 | TM230 | 14.2 W | 2 800 g | 200 A | 1 000 A |
| 3VA5220-7GC41-0AA0 | TM230 | 14.17 W | 2.55 kg | 200 A | 1 000 A |
| 3VA5220-7EF41-2AA0 | TM240 | 14.2 W | 2 800 g | 160 A | 1 000 A |
| 3VA5220-7EF41-0AA0 | TM240 | 14.17 W | 2.55 kg | 160 A | 1 000 A |
| 3VA6115-7JT31-2AA0 | ETU556 | 9.67 W | 2.3 kg | 60 A | 225 A |
| 3VA6115-7JT31-0AA0 | ETU556 | 9.67 W | 2.5 kg | 60 A | 225 A |
| 3VA6115-7JQ41-2AA0 | ETU560 | 9.67 W | 2.9 kg | 60 A | 225 A |
| 3VA6115-7JQ41-0AA0 | ETU560 | 9.67 W | 3.2 kg | 60 A | 225 A |

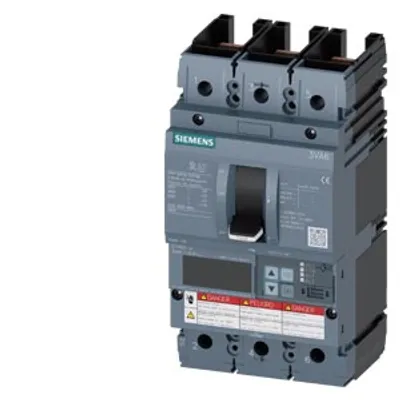

| 3VA6110-7KL31-2AA0 | ETU820 | 4.33 W | 2.3 kg | 40 A | 150 A |
| 3VA6110-7KL31-0AA0 | ETU820 | 4.33 W | 2.5 kg | 40 A | 150 A |
| 3VA6110-7JQ31-2AA0 | ETU560 | 4.33 W | 2.3 kg | 40 A | 150 A |
| 3VA6110-7JQ31-0AA0 | ETU560 | 4.33 W | 2.5 kg | 40 A | 150 A |
| 3VA6110-7JP41-2AA0 | ETU550 | 4.33 W | 2.9 kg | 40 A | 150 A |

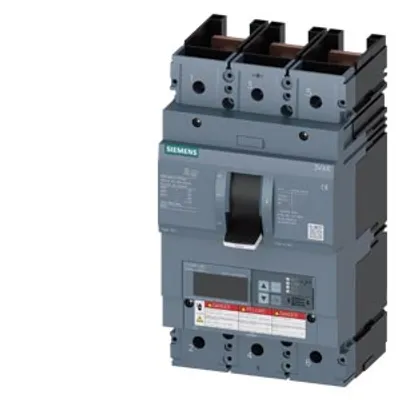

| 3VA6325-6JQ31-0AA0 | ETU560 | 9 W | 4.5 kg | 100 A | 375 A |

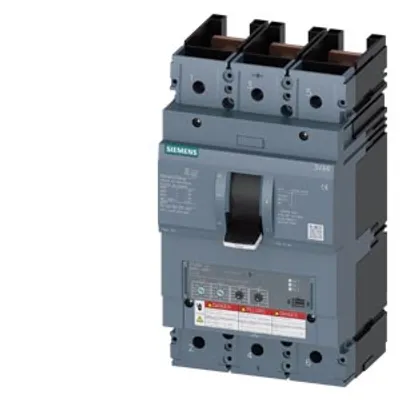

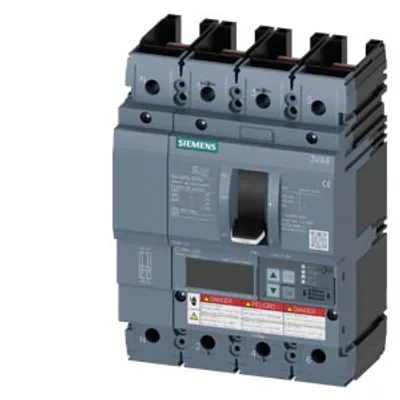

| 3VA6325-6HN31-2AA0 | ETU350 | 9 W | 5.3 kg | 100 A | 3 000 A |
| 3VA6325-6HL41-2AA0 | ETU320 | 9 W | 6.9 kg | 100 A | 375 A |
| 3VA6325-6HL31-2AA0 | ETU320 | 9 W | 5.3 kg | 100 A | 375 A |
| 3VA6325-6HL31-0AA0 | ETU320 | 9 W | 4.784 kg | 100 A | 375 A |
| 3VA6140-6KQ41-2AA0 | ETU860 | 0.8 W | 2.9 kg | 15 A | 60 A |
| 3VA6140-6KQ41-0AA0 | ETU860 | 0.8 W | 3.2 kg | 15 A | 60 A |

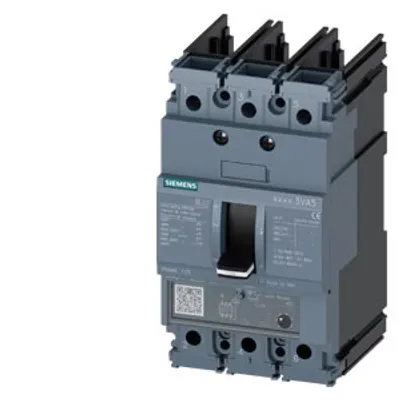

| 3VA5110-6EF31-0AA0 | TM240 | 7.6 W | 970 g | 80 A | 500 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
