3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | operational current — at 45 °C | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA5135-5ED31-1AA0 | 11.4 W | 3.8 W | 0.88 kg | 34 A | 350 A |

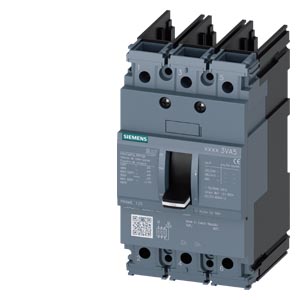

| 3VA5135-5ED31-0AA0 | 11.4 W | 3.8 W | 930 g | 34 A | 350 A |
| 3VA5295-5ED61-0AA0 | 3.4 W | 1.7 W | 2 100 g | 14.1 A | 400 A |
| 3VA5295-5ED36-1AA0 | 5.1 W | 1.7 W | 2 100 g | 14.1 A | 400 A |
| 3VA5295-5ED36-0AA0 | 5.1 W | 1.7 W | 2 100 g | 14.1 A | 400 A |

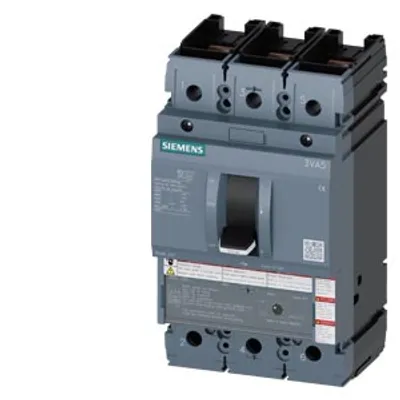

| 3VA5295-5ED32-1AA0 | 5.1 W | 1.7 W | 2 100 g | 14.1 A | 400 A |
| 3VA5295-5ED32-0AA0 | 5.1 W | 1.7 W | 2 100 g | 14.1 A | 400 A |

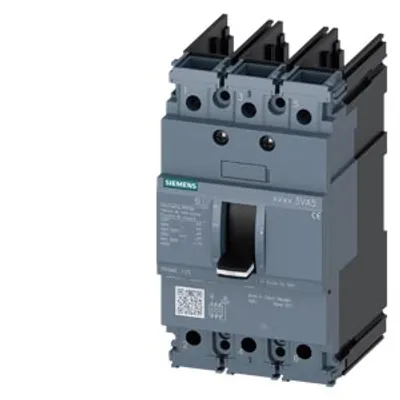

| 3VA5195-4ED31-1AA0 | 10.6 W | 3.53 W | 940 g | 15 A | 300 A |

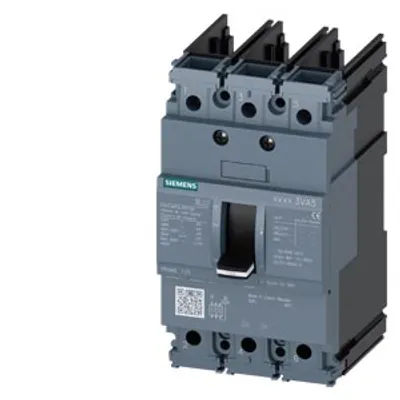

| 3VA5195-4ED31-0AA0 | 10.6 W | 3.53 W | 936 g | 15 A | 300 A |

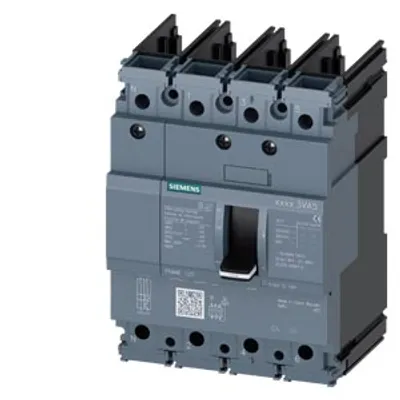

| 3VA5111-4GD41-0AA0 | 25 W | 8.47 W | 952 g | 107 A | 1 100 A |
| 3VA5111-4GC41-0AA0 | 25 W | 8.47 W | 952 g | 107 A | 550 A |
| 3VA5111-4ED41-0AA0 | 25.8 W | 8.6 W | 952 g | 107 A | 1 100 A |

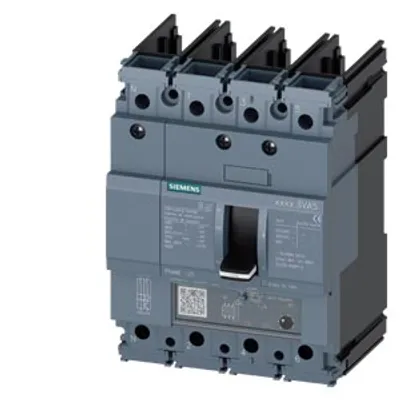

| 3VA5160-6EF41-0AA0 | 15.4 W | 5.13 W | 1.197 kg | 59 A | 300 A |

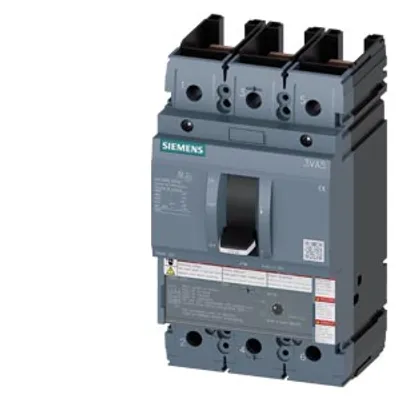

| 3VA5217-5ED31-2AA0 | 35 W | 11.7 W | 2 100 g | 171 A | 1 750 A |
| 3VA5217-5ED31-1AA0 | 35 W | 11.7 W | 2 kg | 171 A | 1 750 A |
| 3VA5217-5EC31-1AA0 | 35 W | 11.7 W | 2 kg | 171 A | 875 A |
| 3VA5217-5EC31-0AA0 | 35 W | 11.7 W | 2.018 kg | 171 A | 875 A |
| 3VA5125-4ED21-1AA0 | 6 W | 2.8 W | 661 g | 24 A | 300 A |

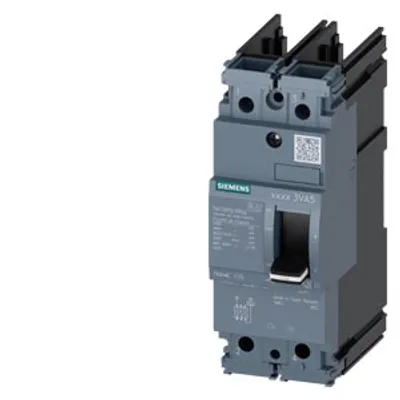

| 3VA5125-4ED21-0AA0 | 6 W | 2.8 W | 644 g | 24 A | 300 A |
| 3VA5125-1MU31-0AA0 | 6.1 W | 2.03 W | 0.963 kg | 25 A | 75 A |
| 3VA5125-1MH31-0AA0 | 2.1 W | 0.7 W | 935 g | 25 A | 125 A |

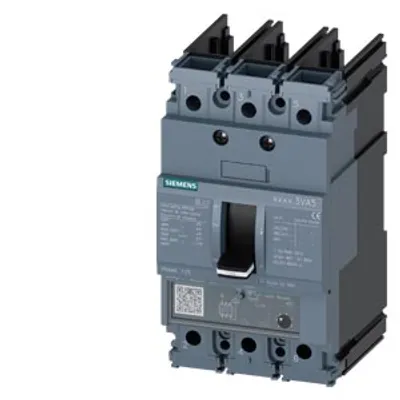

| 3VA5120-6EF31-0AA0 | 12.2 W | 4.07 W | 950 g | 20 A | 150 A |

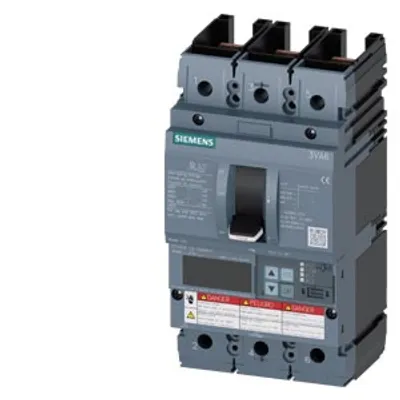

| 3VA6115-6JT31-2AA0 | 29 W | 9.67 W | 2.3 kg | 150 A | 225 A |
| 3VA6115-6JT31-0AA0 | 29 W | 9.67 W | 2.5 kg | 150 A | 225 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product function — other measurement function | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
