3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|
| 3VA6460-8KT41-0AA0 | LLAE | ETU856 | 151 W | 50.33 W | 6.9 kg |
| 3VA6610-6JQ46-0AA0 | HMNAE | ETU560 | 330 W | 110 W | 23.298 kg |
| 3VA6610-6JQ42-0AA0 | HMNAE | ETU560 | 330 W | 110 W | 17.02 kg |

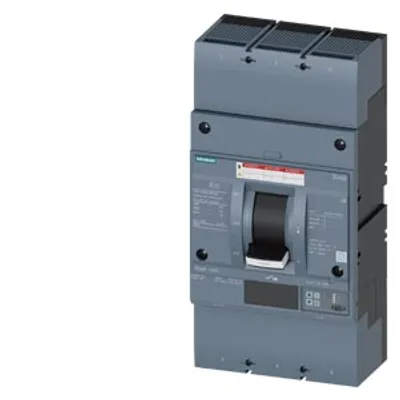

| 3VA6610-6JQ36-0AA0 | HMNAE | ETU560 | 330 W | 110 W | 17.755 kg |
| 3VA6580-5JQ32-0AA0 | MMAE | ETU560 | 231 W | 77 W | 13.3 kg |
| 3VA6580-5JP36-2AA0 | MMAE | ETU550 | 231 W | 77 W | 17.755 kg |
| 3VA6580-5JP36-0AA0 | MMAE | ETU550 | 231 W | 77 W | 17.755 kg |
| 3VA6580-5JP32-2AA0 | MMAE | ETU550 | 231 W | 77 W | 13.3 kg |
| 3VA5560-5EC66-0AA0 | MMAS | TM230 | 108 W | 54 W | 15.26 kg |

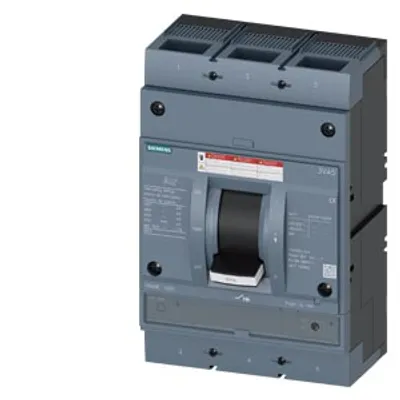

| 3VA5560-5EC62-0AA0 | MMAS | TM230 | 108 W | 54 W | 13.32 kg |
| 3VA5560-5EC46-2AA0 | MMAS | TM230 | 162 W | 54 W | 18.716 kg |

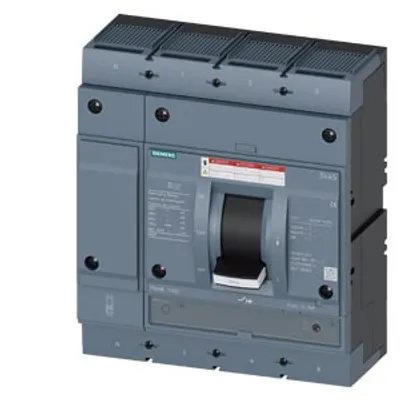

| 3VA5560-5EC46-0AA0 | MMAS | TM230 | 162 W | 54 W | 19.409 kg |
| 3VA5560-5EC42-2AA0 | MMAS | TM230 | 162 W | 54 W | 16.323 kg |
| 3VA5560-5EC42-0AA0 | MMAS | TM230 | 162 W | 54 W | 17.02 kg |
| 3VA5560-5EC36-2AA0 | MMAS | TM230 | 162 W | 54 W | 14.586 kg |

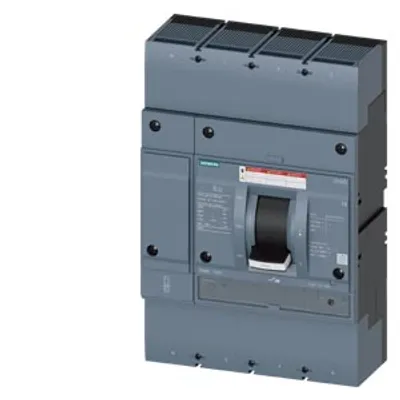

| 3VA5570-7GC46-2AA0 | CMAS | TM230 | 183 W | 61 W | 18.716 kg |
| 3VA5570-7GC46-0AA0 | CMAS | TM230 | 183 W | 61 W | 19.409 kg |
| 3VA5570-7GC42-2AA0 | CMAS | TM230 | 183 W | 61 W | 16.323 kg |
| 3VA5570-7GC42-0AA0 | CMAS | TM230 | 183 W | 61 W | 17.485 kg |
| 3VA5570-6GC46-0AA0 | HMAS | TM230 | 183 W | 61 W | 19.409 kg |
| 3VA5570-6GC42-2AA0 | HMAS | TM230 | 183 W | 61 W | 16.323 kg |

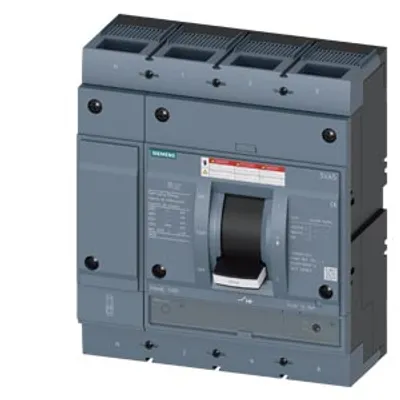

| 3VA5570-6GC42-0AA0 | HMAS | TM230 | 183 W | 61 W | 17.02 kg |
| 3VA6440-7HM31-2AA0 | CLAE | ETU330 | 70 W | 23.33 W | 5.3 kg |
| 3VA6440-7HL31-2AA0 | CLAE | ETU320 | 70 W | 23.33 W | 5.3 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
