3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | operational current — at 45 °C | operational current — at 55 °C |
|---|---|---|---|---|---|
| 3VA5220-5EC41-0AA0 | 43 W | 14.17 W | 2.7 kg | 194 A | 183 A |
| 3VA5220-7EF31-2AA0 | 43 W | 14.2 W | 2 100 g | 194 A | 183 A |
| 3VA5220-7EF31-0AA0 | 43 W | 14.17 W | 2 kg | 194 A | 183 A |
| 3VA5220-7ED31-2AA0 | 43 W | 14.2 W | 2 100 g | 194 A | 183 A |

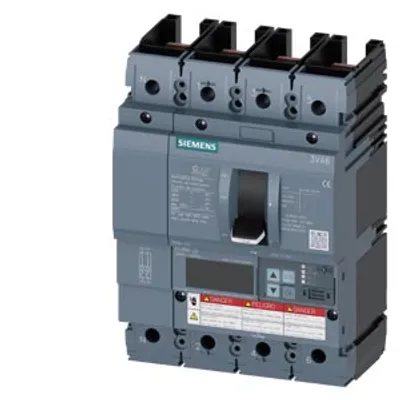

| 3VA6115-7KP41-2AA0 | 29 W | 9.67 W | 2.9 kg | 150 A | 143 A |
| 3VA6115-7KM31-2AA0 | 29 W | 9.67 W | 2.3 kg | 150 A | 143 A |

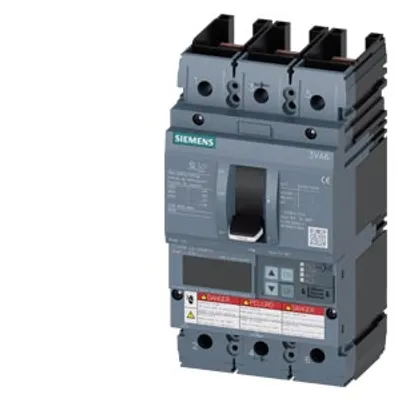

| 3VA6110-7JT31-0AA0 | 13 W | 4.33 W | 2.5 kg | 100 A | 100 A |
| 3VA6110-7JQ41-2AA0 | 13 W | 4.33 W | 2.9 kg | 100 A | 100 A |
| 3VA6110-7JQ41-0AA0 | 13 W | 4.33 W | 3.2 kg | 100 A | 100 A |

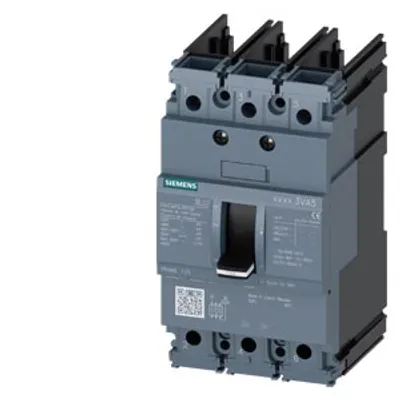

| 3VA5150-5ED31-0AA0 | 12 W | 4 W | 924.5 g | 49 A | 47 A |
| 3VA5325-5EF31-2AA0 | 59 W | 19.57 W | 4 820 g | 245 A | 234 A |
| 3VA5325-5EF31-0AA0 | 59 W | 19.57 W | 5.2 kg | 245 A | 234 A |
| 3VA5325-5EC61-0AA0 | 39 W | 19.55 W | 4.95 kg | 245 A | 234 A |
| 3VA5325-5EC41-0AA0 | 59 W | 19.57 W | 6.82 kg | 245 A | 234 A |
| 3VA5110-5EF31-0AA0 | 22.8 W | 7.6 W | 960 g | 98 A | 93 A |
| 3VA5110-5ED41-0AA0 | 22.8 W | 7.6 W | 1.22 g | 98 A | 93 A |
| 3VA5320-7EF31-2AA0 | 38 W | 12.53 W | 4 820 g | 196 A | 188 A |
| 3VA5320-7EF31-0AA0 | 38 W | 12.5 W | 5.2 kg | 196 A | 188 A |
| 3VA5320-7EC61-0AA0 | 25 W | 12.6 W | 4.95 kg | 196 A | 188 A |
| 3VA5225-0BB31-0AA0 | 54.4 W | 18.13 W | 1.992 kg | 244 A | 233 A |

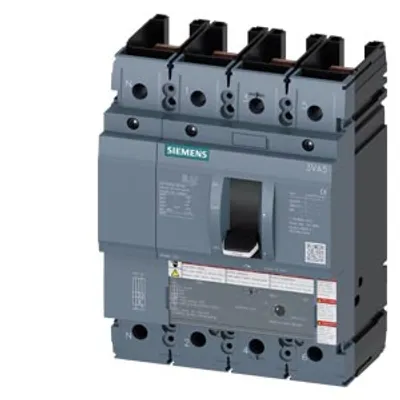

| 3VA5222-7GD41-2AA0 | 51 W | 17.1 W | 2 800 g | 220 A | 211 A |
| 3VA5222-7GD41-0AA0 | 51 W | 17.07 W | 2.7 kg | 220 A | 211 A |
| 3VA5222-7ED41-2AA0 | 51 W | 17.1 W | 2 800 g | 220 A | 211 A |
| 3VA5222-7ED41-0AA0 | 51 W | 17.07 W | 2.7 kg | 220 A | 211 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Without connection |
