3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|
| 3VA6210-7KP31-0AA0 | CFAE | ETU850 | 6.7 W | 2.23 W | 2.5 kg |
| 3VA6210-7KM41-2AA0 | CFAE | ETU830 | 6.7 W | 2.23 W | 2.9 kg |
| 3VA6210-7KM41-0AA0 | CFAE | ETU830 | 6.7 W | 2.23 W | 3.2 kg |

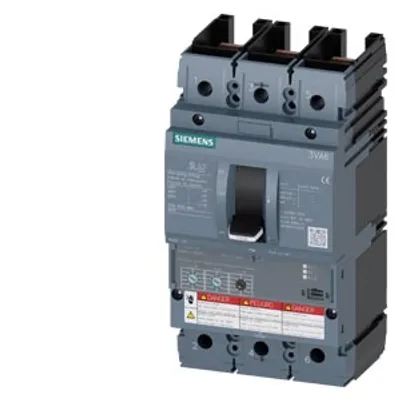

| 3VA6140-7HL31-0AA0 | CDAE | ETU320 | 2.4 W | 0.8 W | 2.1 kg |

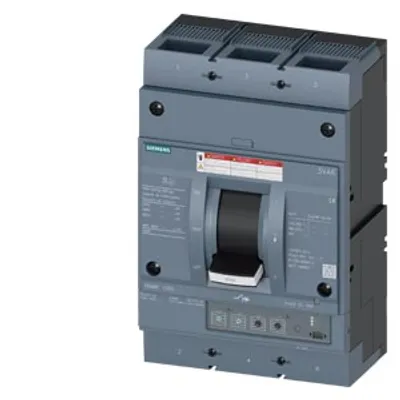

| 3VA6580-6HM32-2AA0 | HMAE | ETU330 | 231 W | 77 W | 14.05 kg |
| 3VA6580-6HM32-0AA0 | HMAE | ETU330 | 231 W | 77 W | 14.16 kg |
| 3VA6580-6HL46-2AA0 | HMAE | ETU320 | 231 W | 77 W | 23.298 kg |
| 3VA6580-6HL46-0AA0 | HMAE | ETU320 | 231 W | 77 W | 23.298 kg |

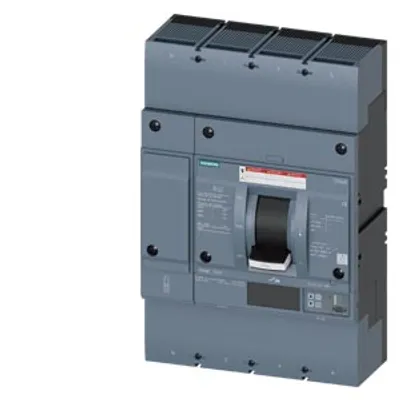

| 3VA6580-5KT46-0AA0 | MMAE | ETU856 | 231 W | 77 W | 23.298 kg |
| 3VA6580-5KT42-2AA0 | MMAE | ETU856 | 231 W | 77 W | 17.01 kg |

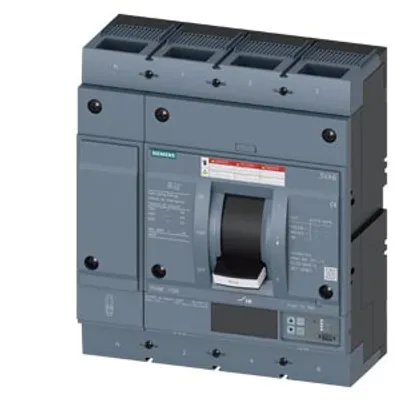

| 3VA6580-5KT42-0AA0 | MMAE | ETU856 | 231 W | 77 W | 17.01 kg |

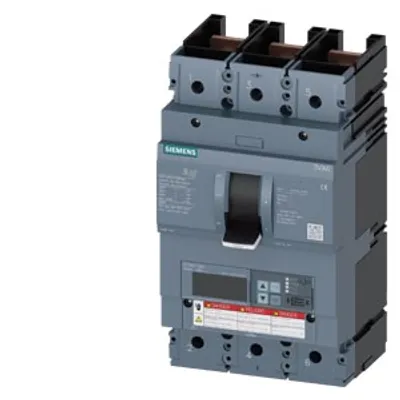

| 3VA6440-8JQ31-2AA0 | LLAE | ETU560 | 70 W | 23.33 W | 5.3 kg |
| 3VA6440-8JQ31-0AA0 | LLAE | ETU560 | 70 W | 23.33 W | 5.3 kg |

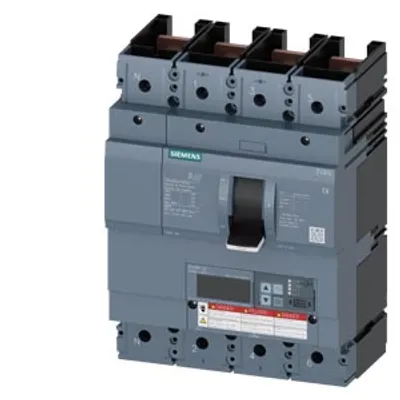

| 3VA6440-8JP41-2AA0 | LLAE | ETU550 | 70 W | 23.33 W | 6.9 kg |
| 3VA6110-5KT31-2AA0 | MDAE | ETU856 | 13 W | 4.33 W | 2.3 kg |

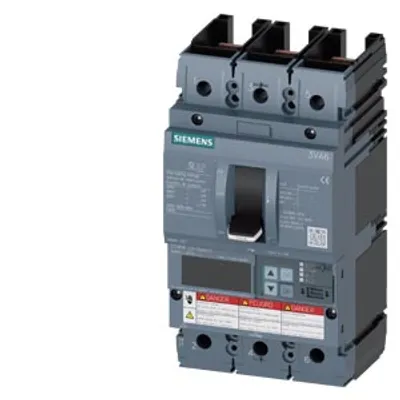

| 3VA6110-5KT31-0AA0 | MDAE | ETU856 | 13 W | 4.33 W | 2.5 kg |

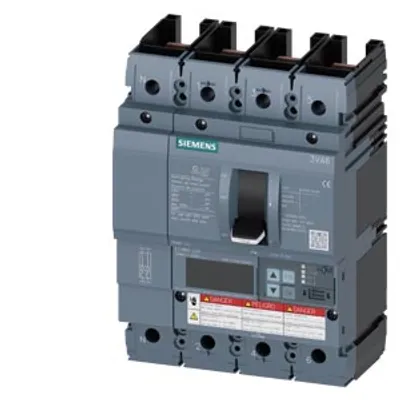

| 3VA6110-5KQ41-2AA0 | MDAE | ETU860 | 13 W | 4.33 W | 2.9 kg |
| 3VA6115-6KT41-2AA0 | HDAE | ETU856 | 29 W | 9.67 W | 2.9 kg |
| 3VA6115-6KQ41-0AA0 | HDAE | ETU860 | 29 W | 9.67 W | 3.2 kg |

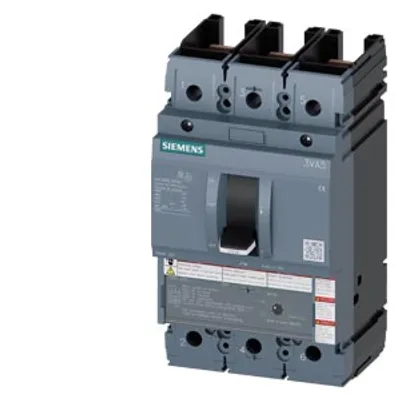

| 3VA5220-5ED31-2AA0 | MFAS | TM210 | 43 W | 14.2 W | 2 100 g |
| 3VA5220-5ED31-1AA0 | MFAM | TM210 | 43 W | 14.17 W | 2 kg |
| 3VA5220-5ED31-0AA0 | MFAS | TM210 | 43 W | 14.17 W | 2.008 kg |
| 3VA5220-5EC61-0AA0 | MFAS | TM230 | 28 W | 14.17 W | 1.741 kg |

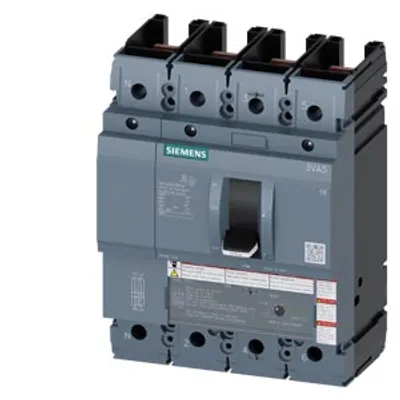

| 3VA5220-5EC41-2AA0 | MFAS | TM230 | 43 W | 14.2 W | 2 800 g |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
