Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|

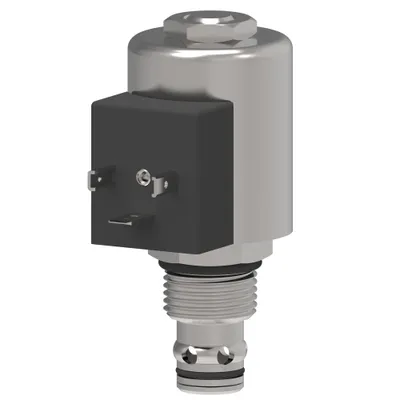

| 02-184161 | SV1-16-C-M-0-24D-G | 1.930 | 49.022 | 4.250 | 107.950 |

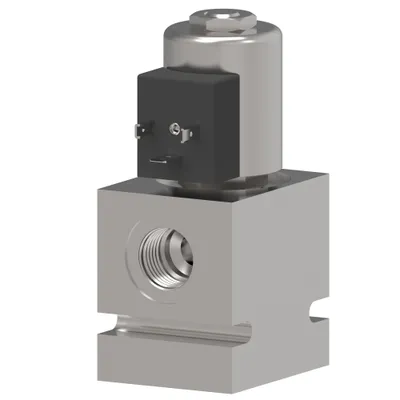

| 02-184158 | SV2-20-C-A-16H-120A-G | 6.500 | 165.100 | 4.000 | 101.600 |

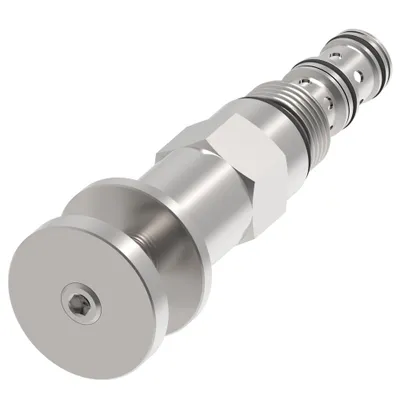

| 02-184157 | PFR2-10-K-0-7.0 | 1.500 | 38.100 | 4.960 | 125.984 |
| 02-184097 | SV13-10-O-P-0-120A-G-H | 1.920 | 48.768 | 3.530 | 89.662 |
| 02-184062 | SV13-12-O-P-0-24DGH | 2.920 | 74.168 | 4.130 | 104.902 |

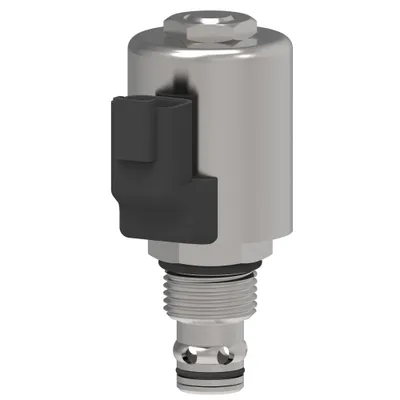

| 02-184028 | SBV11-12-O-0-12B-N-H | 1.920 | 48.768 | 4.130 | 104.902 |
| 02-184012 | — | 1.250 | 31.750 | 5.380 | 136.652 |

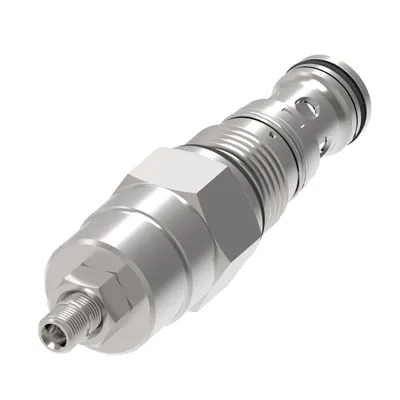

| 02-184008 | CBV1-10-S-0-A-50-34 | 1.250 | 31.750 | 4.900 | 124.460 |

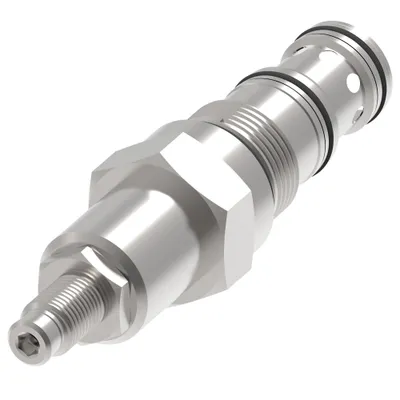

| 02-183995 | VRV11-12-S-0-50-35 | 1.250 | 31.750 | 5.380 | 136.652 |

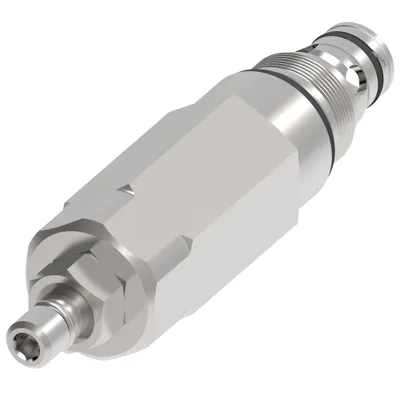

| 02-183985 | RV8-8-S-0-30-24 | 0.870 | 22.098 | 3.940 | 100.076 |

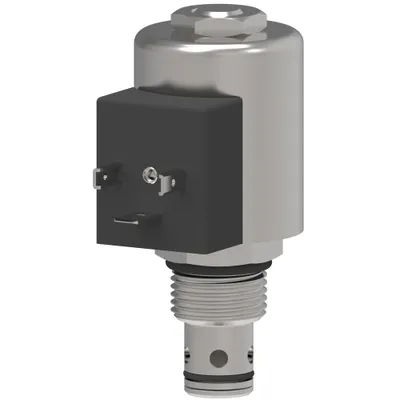

| 02-183979 | SV13-10-C-M-0-240A-G-H | 1.920 | 48.768 | 3.530 | 89.662 |

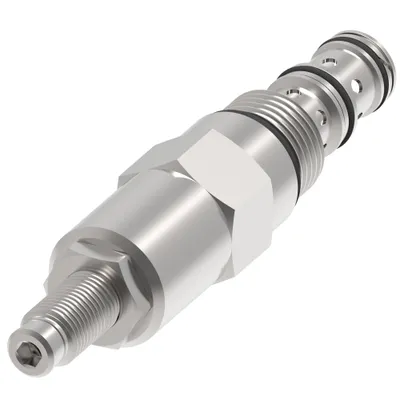

| 02-183966 | PRV12-10-S-0-30-3.2 | 1.000 | 25.400 | 3.870 | 98.298 |

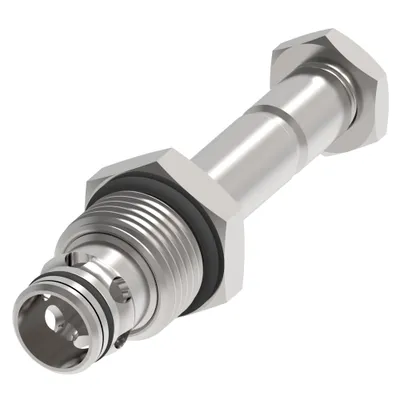

| 02-183952 | SV13-10-O-0-12D-E-H | 1.920 | 48.768 | 3.530 | 89.662 |

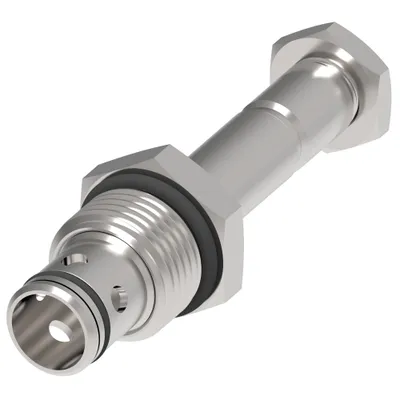

| 02-183938 | SV3-10-V-O-P-0-00 | 1.930 | 49.022 | 4.000 | 101.600 |
| 02-183889 | SV3-10-O-S-0-24D-G | 1.930 | — | 4.000 | 101.600 |
| 02-183888 | SV3-10-C-M-0-24D-G | 1.920 | 48.768 | 3.500 | 88.900 |

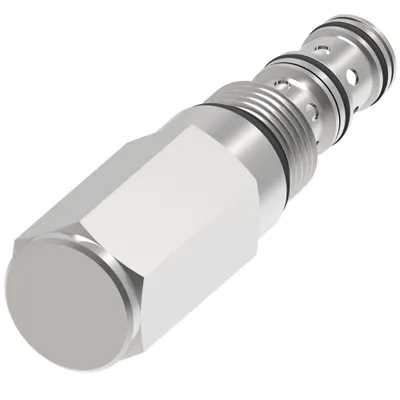

| 02-183881 | PRV2-10-F-0-20-3.5 | 1.000 | 25.400 | 3.890 | 98.806 |

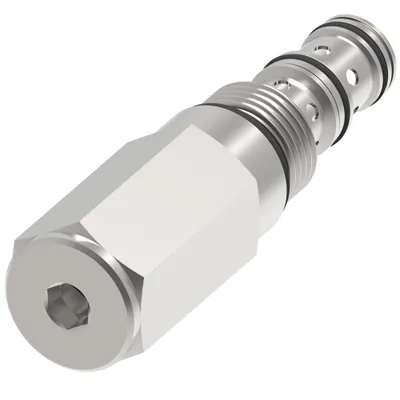

| 02-183876 | PRV1-10-V-I-0-12-6 | 1.000 | 25.400 | 4.960 | 125.984 |
| 02-183863 | PFR5-10-F-0-1.0 | 1.000 | 25.400 | 2.630 | 66.802 |

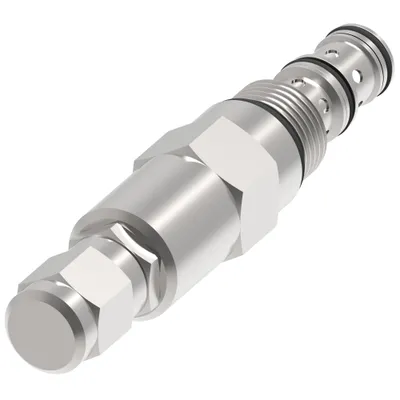

| 02-183844 | PFR2-10-C-0-9.0 | 1.000 | 25.400 | 4.960 | 125.984 |
| 02-183837 | SBV11-12-O-0-240A-G-H | 1.920 | 48.768 | 4.130 | 104.902 |

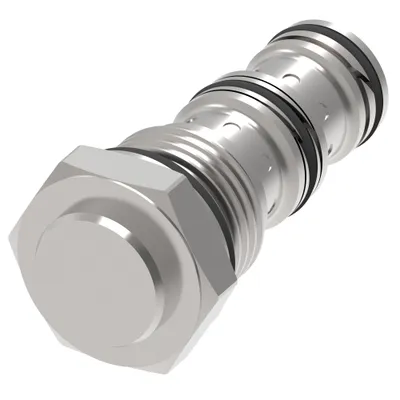

| 02-183756 | PFR5-10-F-0-2.4 | 1.000 | 25.400 | 2.630 | 66.802 |

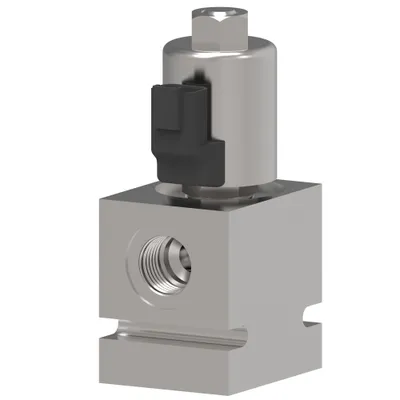

| 02-183738 | SV1-10-4-6T-24B-N | 5.750 | 146.050 | 3.000 | 76.200 |

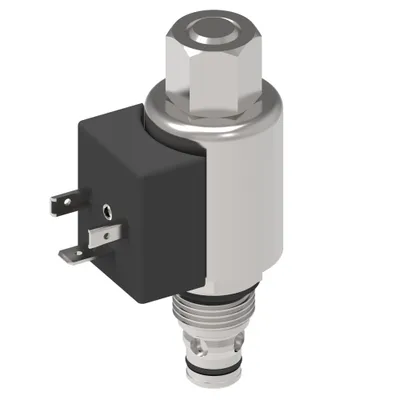

| 02-183705 | SV5-8-O-P-0-120A-G-S | 1.920 | 48.768 | 4.620 | 117.348 |
