Cartridge valves Parts

Browse Subcategories

Directional control (0)Electro-proportional (0)Flow control (0)Load holding (0)Multifunction (0)Pressure control (0)Safety valves (PED) (0)Solenoid on/off (0)

Danfoss

02-177095

SV15-8-0P-0-002/2 SOL/OP CART N/O M/O, SV15-8-O-P-0-00

Danfoss

02-177093

SV15-10-0P-0-00 2/2 SOL/OP CART N/O M/O, SV15-10-O-P-0-00

Danfoss

02-177090

SV14-10-CM-0-002/2 SOL/OP CART N/C M/O, SV14-10-C-M-0-00

Danfoss

02-177089

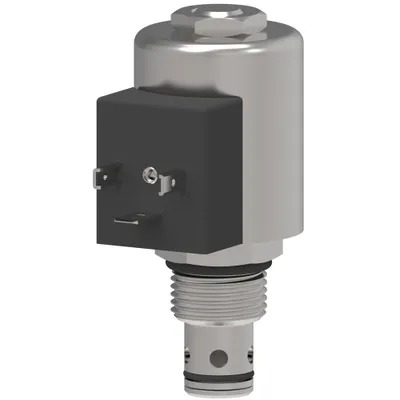

SV14-10-0M-0-002/2 SOL/OP CART N/O M/O, SV14-10-O-M-0-00

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

SV13-16-0S-0-00 2/2 SOL/OP CART N/O M/O, SV13-16-O-S-0-00

Danfoss

02-177083

Danfoss

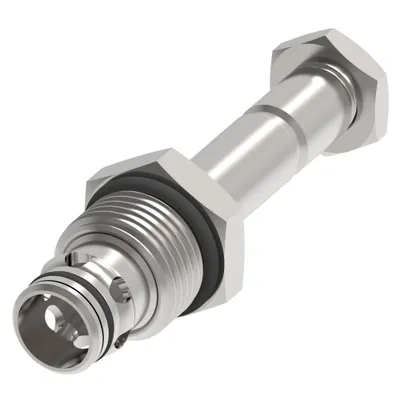

02-177081

Danfoss

02-177080

SV13-12-0S-0-002/2 SOL/OP CART N/O M/O, SV13-12-O-S-0-00

Danfoss

02-177079

Danfoss

02-177078

Danfoss

02-177077

SV13-10-0S-0-002/2 SOL/OP CART N/O M/O, SV13-10-O-S-0-00

Danfoss

02-177076

Danfoss

02-177073

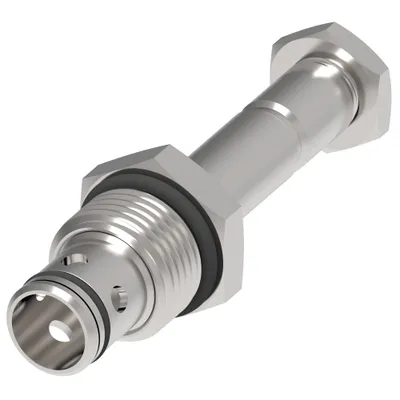

SV11-10-CM-0-00 2/2 SOL/OP CART M/O

Danfoss

02-177072

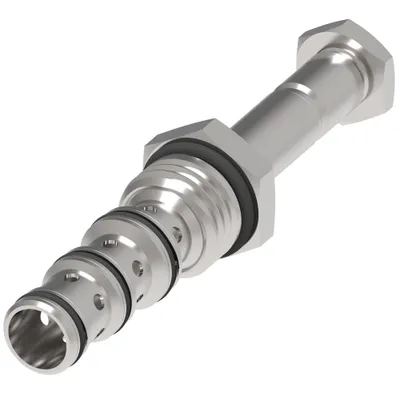

SV11-10-4M-0-004/2 SOL/OP CART M/O, SV11-10-4-M-0-00

Danfoss

02-177052

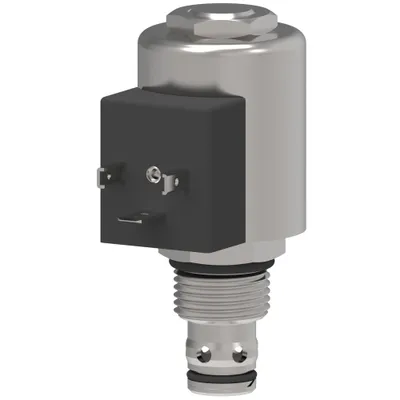

SV15-8-C-0-24DGP2/2 SOL/OP CART 24VDC, SV15-8-C-0-24D-G-P

Danfoss

02-177014

Danfoss

02-176962

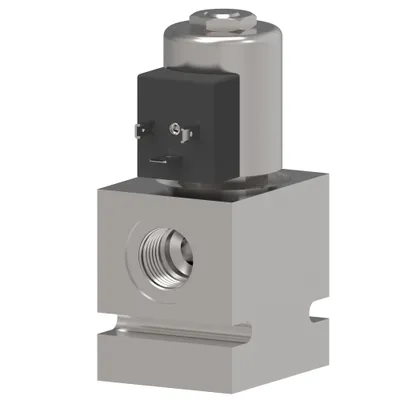

SV2-20-C-16T-24DG 2/2SOL/OP VLV 24VDC16T, SV2-20-C-A-16T-24D-G

Danfoss

02-176938

Danfoss

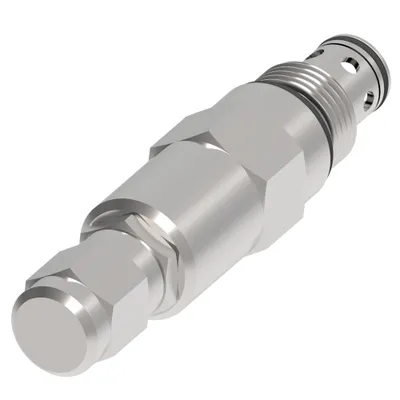

02-176931

Danfoss

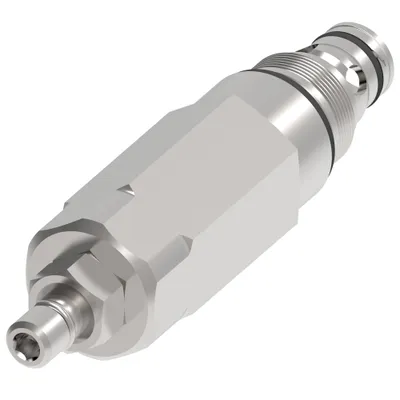

02-176911

Compare Cartridge valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product height in	Product height mm	Product length in	Product length mm
02-177095	SV15-8-O-P-0-00	1.640	41.656	3.080	78.232
02-177093	SV15-10-O-P-0-00	1.920	48.768	3.530	89.662
02-177090	SV14-10-C-M-0-00	1.920	—	3.530	89.662
02-177089	SV14-10-O-M-0-00	1.930	49.022	3.530	89.662
02-177088	SV13-20-C-M-0-00	1.920	48.768	4.770	121.158

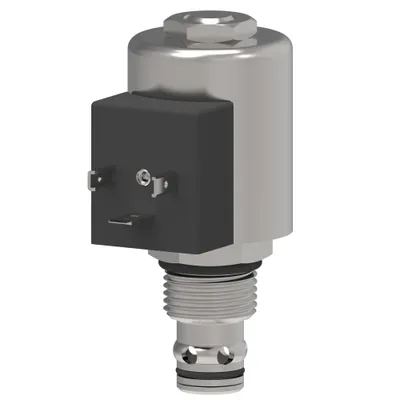

02-177087	SV13-20-O-S-0-00	1.920	48.768	4.770	121.158
02-177086	SV13-20-O-P-0-00	1.920	48.768	4.770	121.158
02-177085	SV13-16-C-M-0-00	1.920	48.768	4.280	108.712
02-177084	SV13-16-O-S-0-00	1.920	48.768	4.280	108.712
02-177083	SV13-16-O-P-0-00	1.920	48.768	4.280	108.712
02-177081	SV13-12-C-M-0-00	1.920	48.768	4.130	104.902
02-177080	SV13-12-O-S-0-00	2.920	—	4.130	104.902
02-177079	SV13-12-O-P-0-00	2.920	74.168	4.130	104.902
02-177078	SV13-10-C-M-0-00	1.920	48.768	3.530	89.662
02-177077	SV13-10-O-S-0-00	1.920	—	3.530	89.662
02-177076	SV13-10-O-P-0-00	1.920	—	3.530	89.662
02-177073	—	1.920	48.768	3.530	89.662
02-177072	SV11-10-4-M-0-00	1.920	48.768	4.710	119.634
02-177052	SV15-8-C-0-24D-G-P	1.640	—	3.360	85.344
02-177014	RV8-8-S-0-15-0.5	0.870	22.098	3.940	100.076
02-176962	SV2-20-C-A-16T-24D-G	6.500	—	4.000	101.600
02-176938	SV3-12-V-C-0-00	1.920	48.768	4.120	104.648
02-176931	RV11-12-C-0-50-30	1.250	31.750	4.760	120.904
02-176911	RV8-8-S-0-50-50	0.870	22.098	3.940	100.076

Common to all listed parts

Installation type

Screw-in Cartridge
