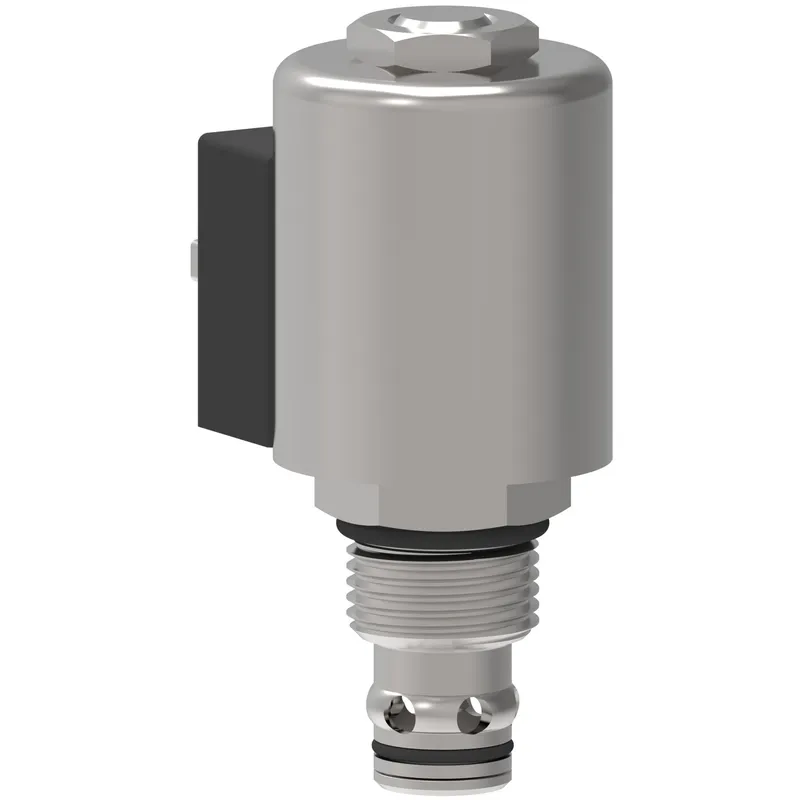

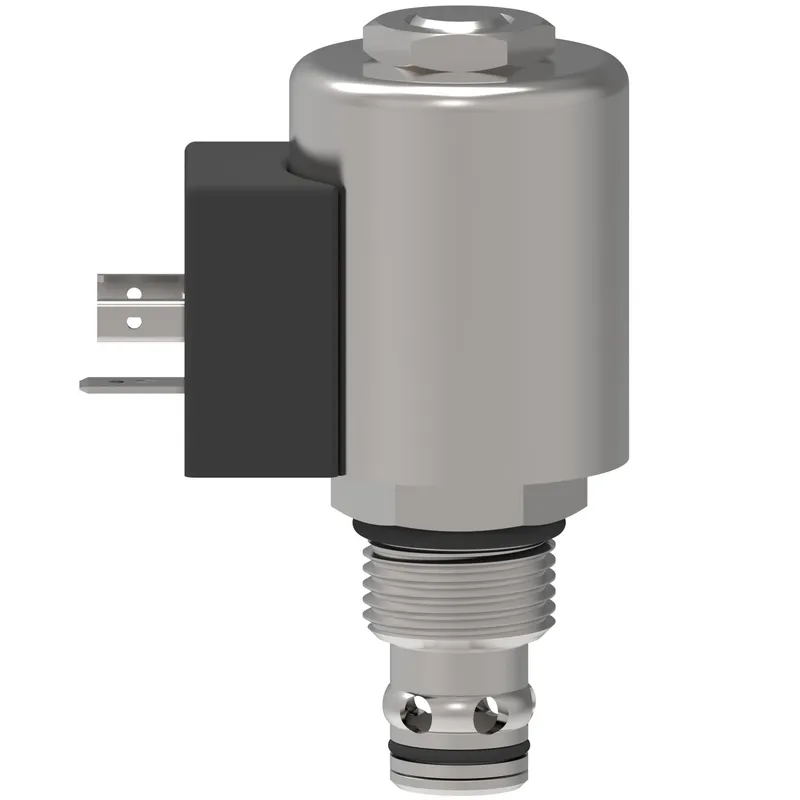

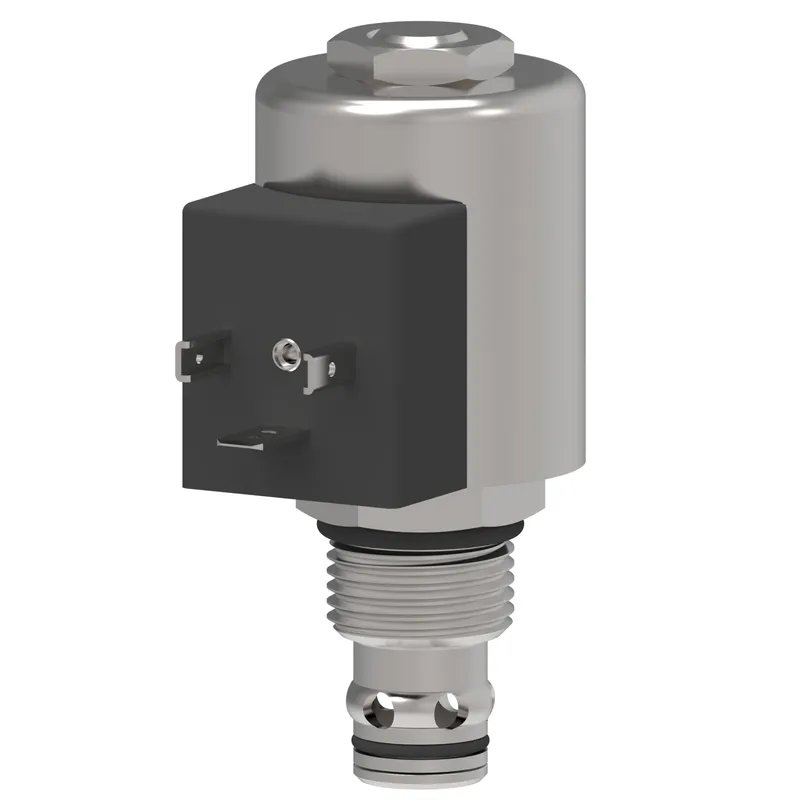

Danfoss 02-184062

SV13-12-0P-0-24DGH, SV13-12-O-P-0-24DGH

MPN: 02-184062
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-184062?

Danfoss SV13-12-0P-0-24DGH, SV13-12-O-P-0-24DGH, manufacturer part number 02-184062. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-12-2
Coil series	H Series
Coil termination	DIN 43650
Diode	No
Flow rate LPM	114.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	No
Housing material	Steel
Installation type	Screw-in Cartridge
Model Code 1	SV13-12-O-P-0-24DGH
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 100 C (-40 to 212 F)
Operation	Electrically operated
Override type	Push Type
Port type	Cartridge Only
Pressure rating BAR	350.00
Product height in	2.920
Product height mm	74.168
Product length in	4.130
Product length mm	104.902
Product width in	1.530
Product width mm	38.862 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	2-Way 2-Position NO
Voltage	24 V
Voltage type	DC

02-184062: frequently asked questions

When can 02-184062 be shipped?

02-184062 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-184062 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-184062 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-184062, subject to availability and destination.
