Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 02-325126 | EPV10-0-V-12D-S-W-10 | 1.710 | 43.434 | 5.170 | 131.318 |

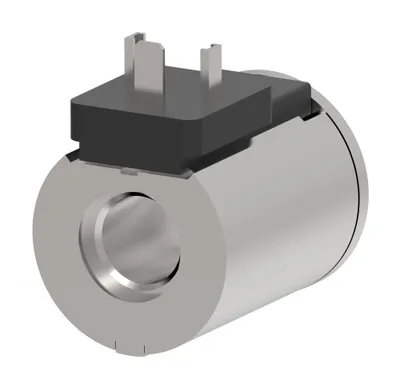

| 02-316210 | — | 2.000 | 50.800 | 2.047 | 51.994 |

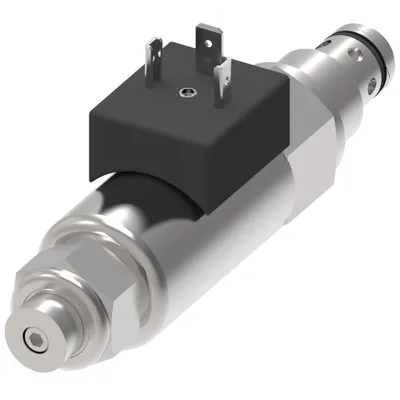

| 02-309600 | EPV10-0-V-24D-M-U-10 | 1.710 | 43.434 | 5.170 | 131.318 |

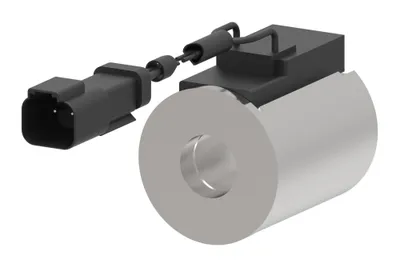

| 02-309468 | — | 1.920 | 48.768 | 2.370 | 60.198 |

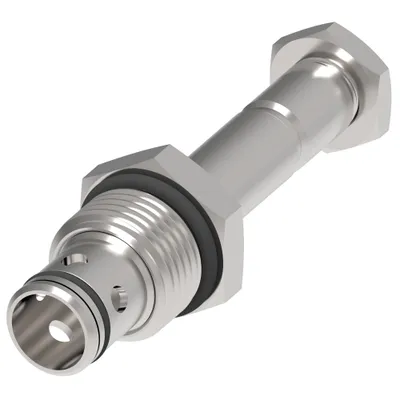

| 02-201761 | SBV1-10-C-M-0-00 | 1.920 | 48.768 | 3.530 | 89.662 |

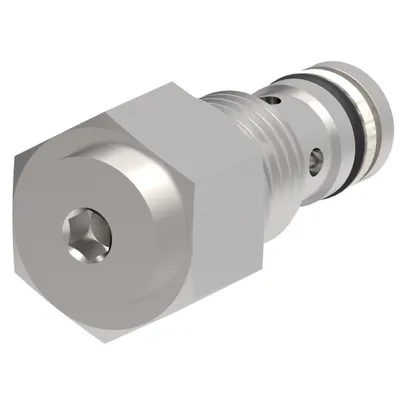

| 02-201684 | CV3-4-P-000-05 | 1.380 | 35.052 | 1.360 | 34.544 |

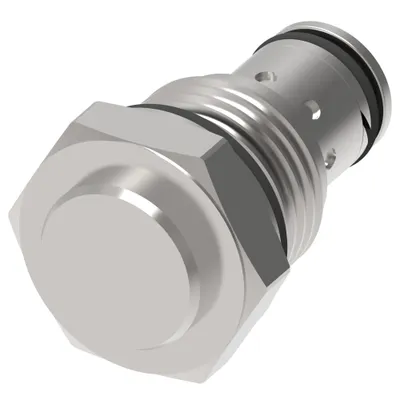

| 02-201680 | CV11-16-P-0-100 | 1.500 | 38.100 | 2.260 | 57.404 |
| 02-201677 | IRV1-10-30-0-0-00 | 1.530 | 38.862 | 4.160 | 105.664 |
| 02-201660 | SBV2-8-C-0-00 | 1.640 | 41.656 | 3.390 | 86.106 |
| 02-201631 | CV3-4-P-000-05-01 | 0.560 | 14.224 | 1.360 | 34.544 |
| 02-201586 | SV13-16-O-P-0-24D-G-H | 1.920 | 48.768 | 4.280 | 108.712 |

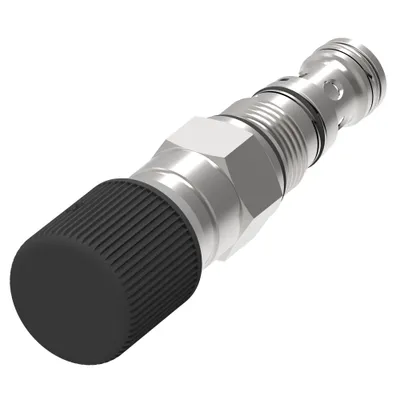

| 02-201470 | CBV1-10-R-0-B-50-35 | 1.250 | 31.750 | 4.900 | 124.460 |

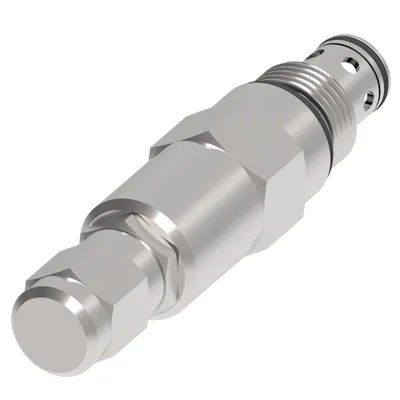

| 02-201465 | RV5-10-C-0-50-25 | 1.000 | 25.400 | 4.380 | 111.252 |

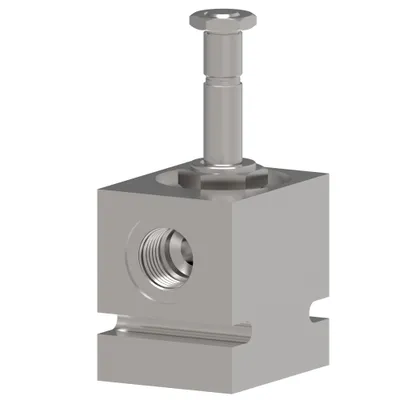

| 02-201446 | SBV11-10-C-A-8H-12D-E-H | 4.780 | — | 2.500 | 63.500 |

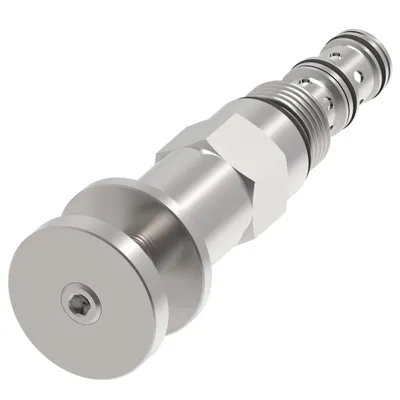

| 02-201427 | PRV2-10-K-0-20-SS-XXX | 1.500 | 38.100 | 4.960 | 125.984 |
| 02-201423 | SV13-10-O-P-0-240A-G-H | 1.920 | 48.768 | 3.530 | 89.662 |

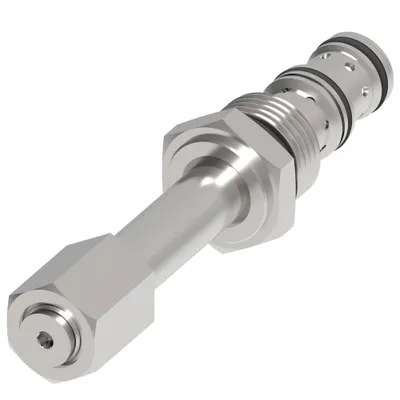

| 02-201410 | EPRV3-10-5-0-00 | 1.920 | 48.768 | 4.682 | 118.923 |

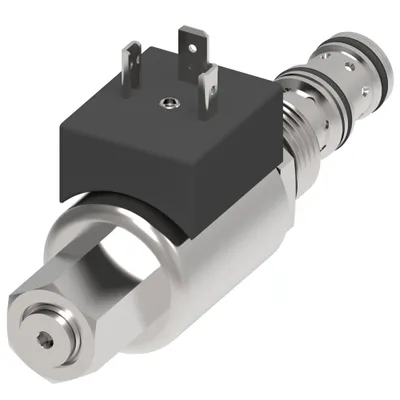

| 02-201409 | EPRV3-10-5-0-24D-G | 1.920 | 48.768 | 4.682 | 118.923 |

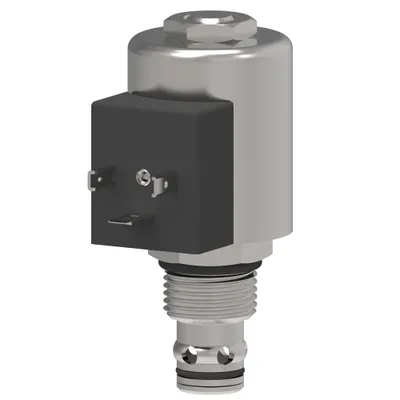

| 02-201405 | SV13-12-V-O-0-240A-G-H | 2.920 | 74.168 | 4.130 | 104.902 |

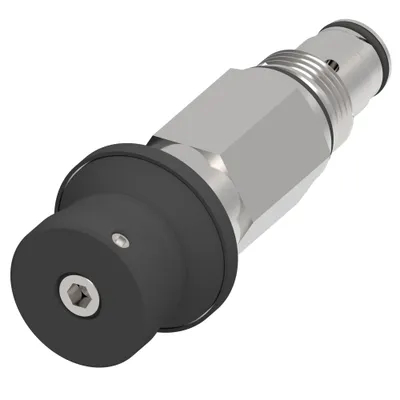

| 02-201387 | FAR1-16-H-0 | 1.500 | 38.100 | 5.550 | 140.970 |
| 02-201369 | FAR1-12-S-0-9.0 | 1.250 | 31.750 | 4.410 | 112.014 |
| 02-201365 | FAR1-10-S-0-1.0 | 1.000 | 25.400 | 3.490 | 88.646 |
| 02-201356 | RV5A-10-F-0-35-30 | 1.000 | 25.400 | 3.330 | 84.582 |

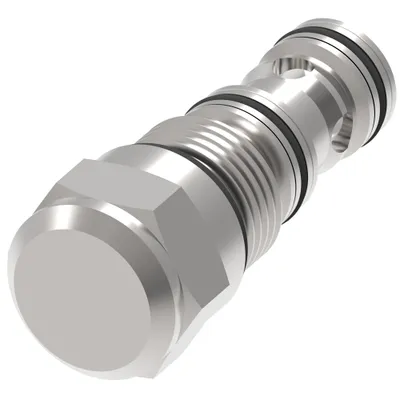

| 02-201296 | DPS2-12-P-F-0-080 | 1.400 | 35.560 | 3.650 | 92.710 |
