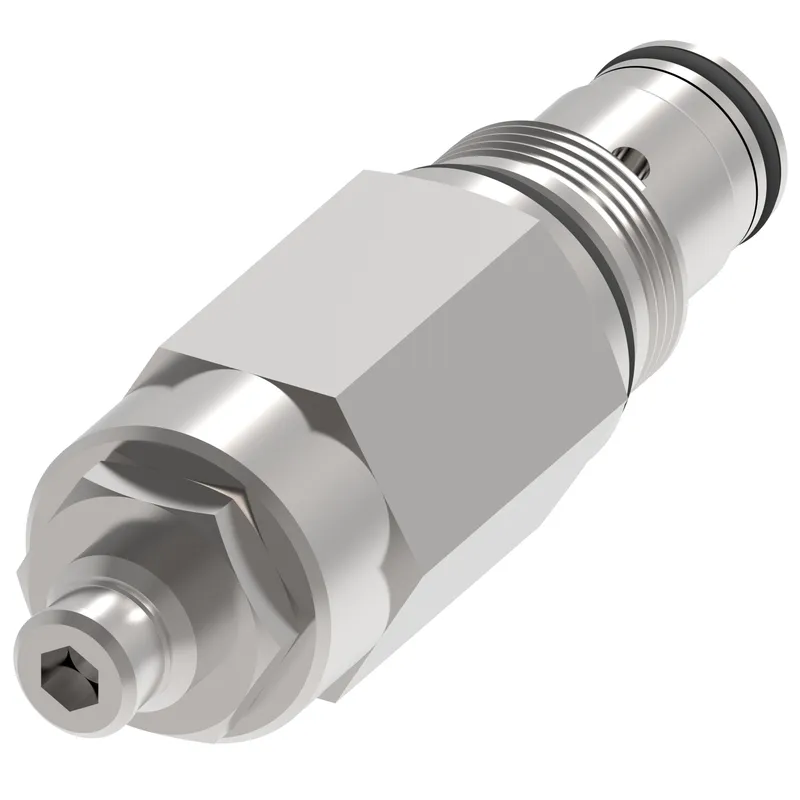

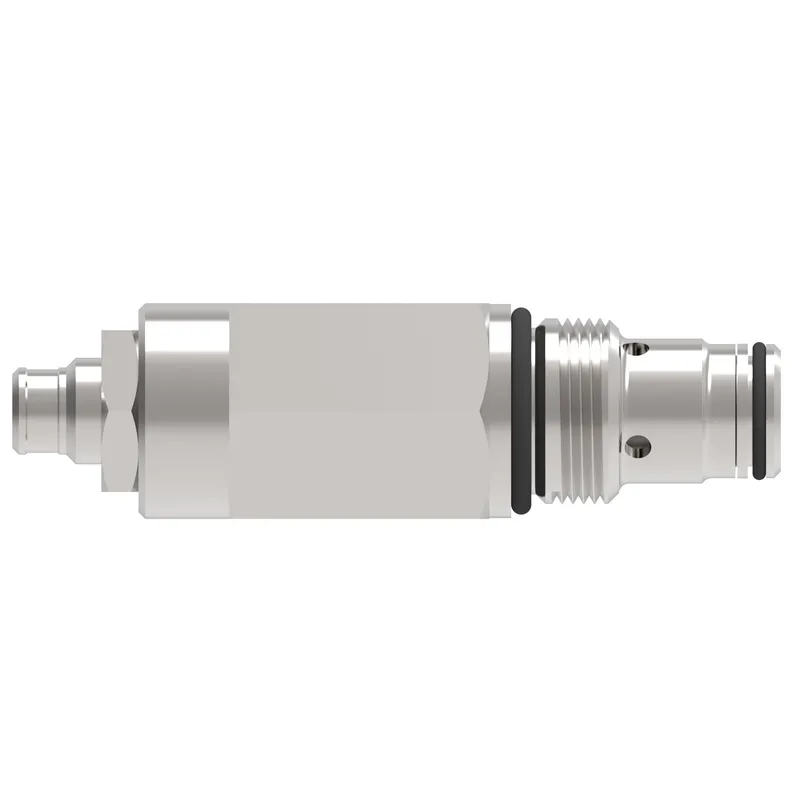

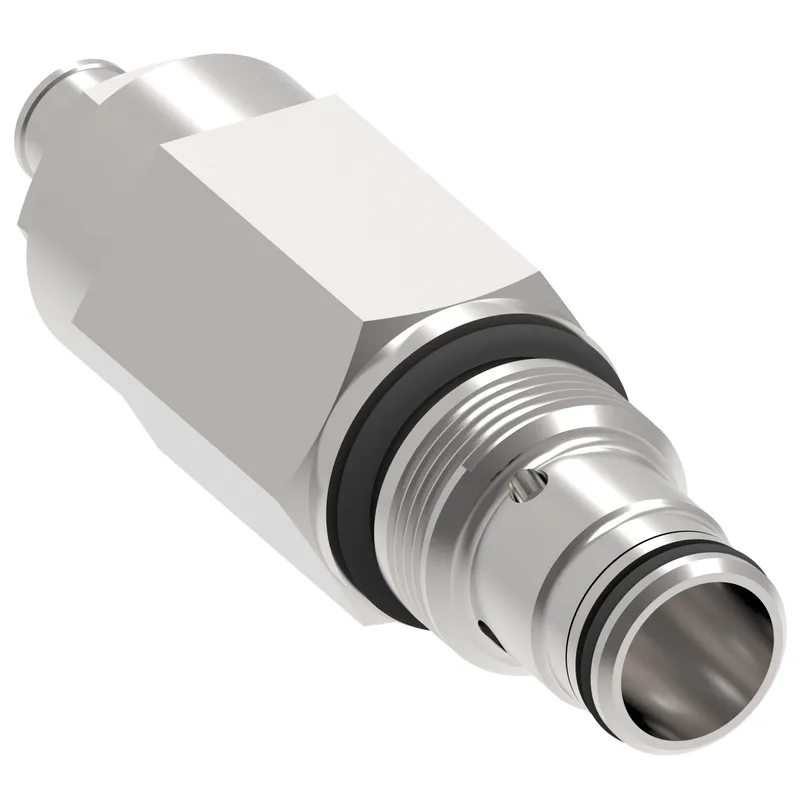

Danfoss 02-201369

FAR1-12-S-0-9, FAR1-12-S-0-9.0

MPN: 02-201369
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-201369?

Danfoss FAR1-12-S-0-9, FAR1-12-S-0-9.0, manufacturer part number 02-201369. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-12-2
Differential pressure BAR	15.90
Differential pressure PSI	231.00
Factory set flow rate GPM	9.000
Factory set flow rate LPM	34.00
Flow rate GPM	25.000
Flow rate LPM	95.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Flow Regulator
Housing	No
Installation type	Screw-in Cartridge
Leakage	500 cc/min
Maximum flow rate LPM	18.00
Minimum flow rate GPM	1.000
Minimum flow rate LPM	4.00
Model Code 1	FAR1-12-S-0-9.0
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Differential Pressure
Port type	Cartridge Only
Pressure rating BAR	310.00
Pressure rating PSI	4500.00
Product height in	1.250
Product height mm	31.750
Product length in	4.410
Product length mm	112.014
Product width in	1.250
Product width mm	31.750 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	81–95 Nm
Torque steel cavity	102-115 Nm
