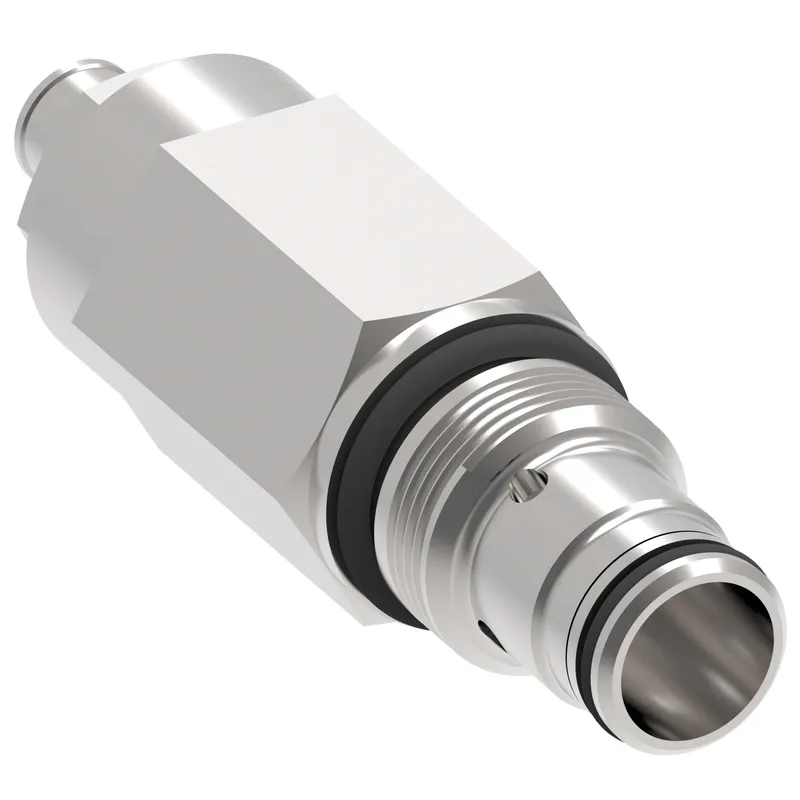

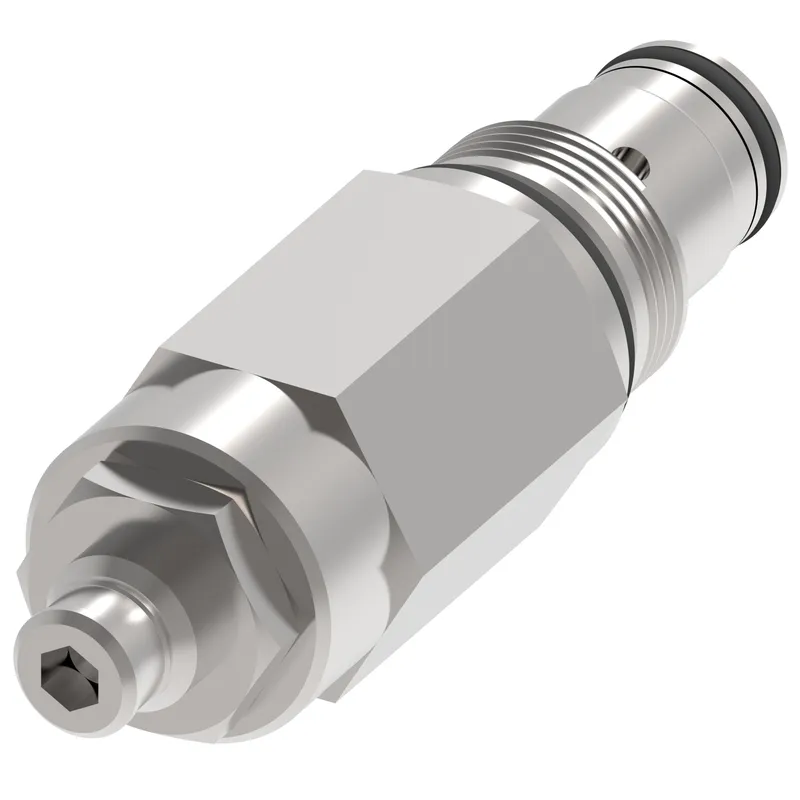

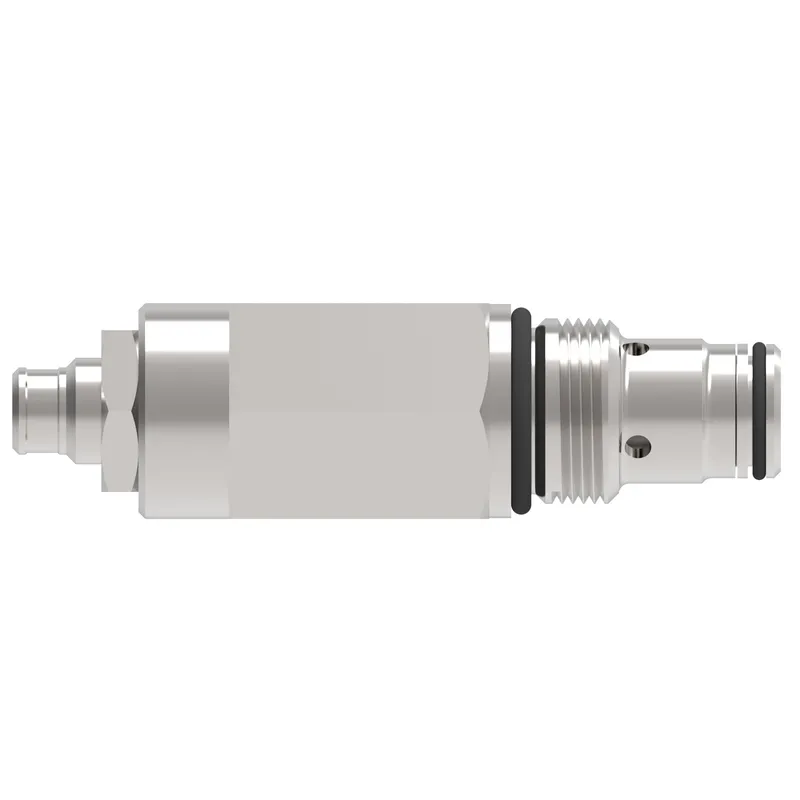

Danfoss 02-201365

FAR1-10-S-0-1.00, FAR1-10-S-0-1.0

MPN: 02-201365
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-201365?

Danfoss FAR1-10-S-0-1.00, FAR1-10-S-0-1.0, manufacturer part number 02-201365. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Screw
Brand	Vickers by Danfoss
Cavity	C-10-2
Differential pressure BAR	14.00
Differential pressure PSI	204.00
Factory set flow rate GPM	1.000
Factory set flow rate LPM	4.00
Flow rate GPM	10.000
Flow rate LPM	38.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Flow Regulator
Housing	No
Installation type	Screw-in Cartridge
Leakage	400 cc/min
Maximum flow rate LPM	10.00
Minimum flow rate GPM	1.000
Minimum flow rate LPM	4.00
Model Code 1	FAR1-10-S-0-1.0
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Differential Pressure
Port type	Cartridge Only
Pressure rating BAR	310.00
Pressure rating PSI	4500.00
Product height in	1.000
Product height mm	25.400
Product length in	3.490
Product length mm	88.646
Product width in	1.000
Product width mm	25.400 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm

02-201365: frequently asked questions

When can 02-201365 be shipped?

02-201365 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-201365 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-201365 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-201365, subject to availability and destination.
