Danfoss 02-201470

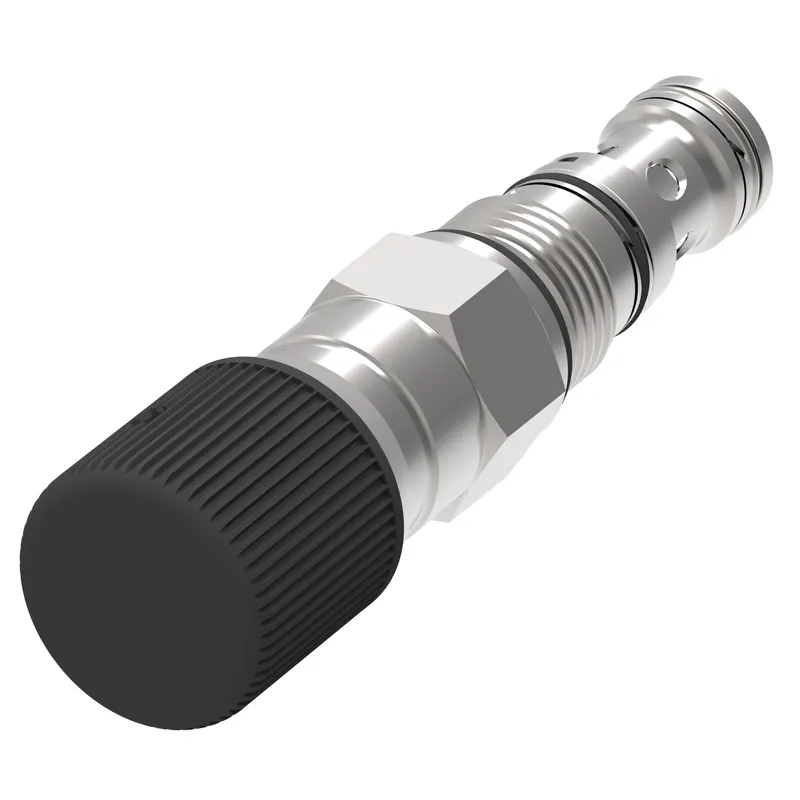

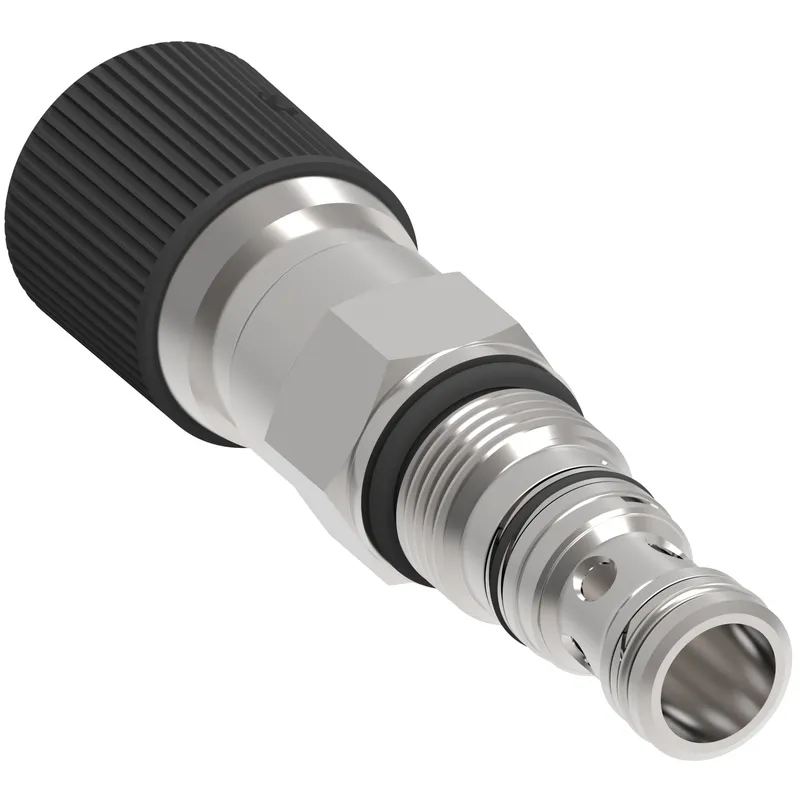

CBV1-10-R-0-B-50/35 COUNTBALANCE CART4-1, CBV1-10-R-0-B-50-35

MPN: 02-201470
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-201470?

Danfoss CBV1-10-R-0-B-50/35 COUNTBALANCE CART4-1, CBV1-10-R-0-B-50-35, manufacturer part number 02-201470. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Knob
Brand	Vickers by Danfoss
Cavity	C-10-3S
Flow rate GPM	16.00
Flow rate LPM	60.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Counterbalance Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	5 dpm
Max pilot adjust p BAR	74.000
Max pilot adjust p PSI	1072.000
Max relief press BAR	350.000
Max relief press PSI	5000.000
Min pilot adjust p BAR	60.000
Min pilot adjust p PSI	877.000
Model Code 1	CBV1-10-R-0-B-50-35
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pilot ratio	4:1
Port size	None
Port type	Cartridge Only
Pressure rating BAR	350.000
Pressure rating PSI	5000.000
Product height in	1.250
Product height mm	31.750
Product length in	4.900
Product length mm	124.460
Product width in	1.250
Product width mm	31.750 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Pilot assisted relief w check
Valve torque into cavity	68-75 Nm

02-201470: frequently asked questions

When can 02-201470 be shipped?

02-201470 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-201470 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-201470 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-201470, subject to availability and destination.
